52 13 198 Removing and installing/replacing rear panel on left or right front seat backrest (normal/manual)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Version Without Luggage Pocket:

Unfasten bottom left/right screw.

Remove lower rear panel by pulling backwards and downwards.

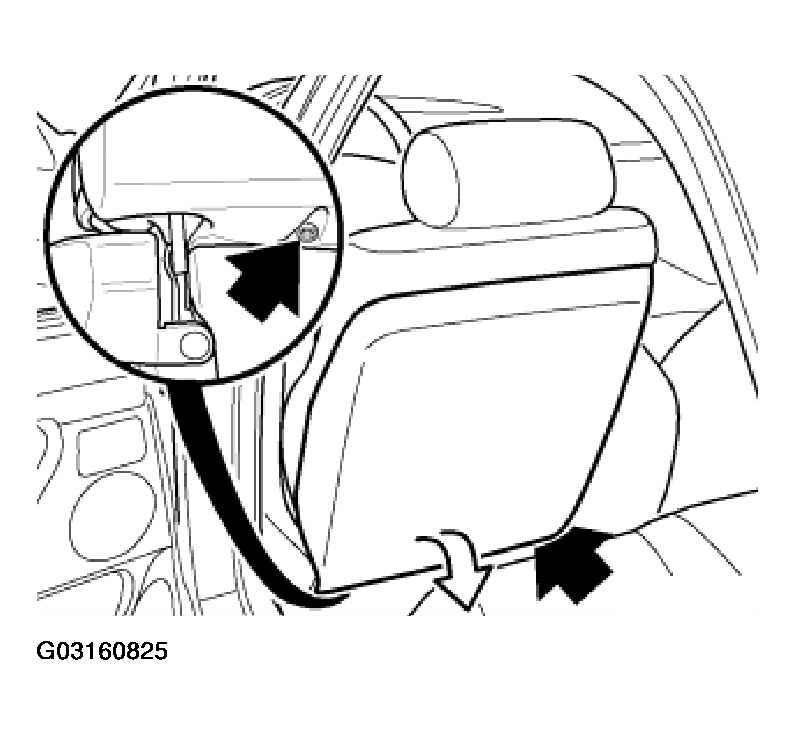

Fig 1: Removing Lower Rear Panel (Version Without Luggage Pocket)

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Luggage Pocket:

Pull inside rear panel inwards/backwards (1) and drive outside forcefully inwards (2) (spring disconnected inside). Press inside of rear panel outwards and pull outwards/backwards to remove (outside of spring disconnected) and remove rear panel by pulling downwards/backwards (3)

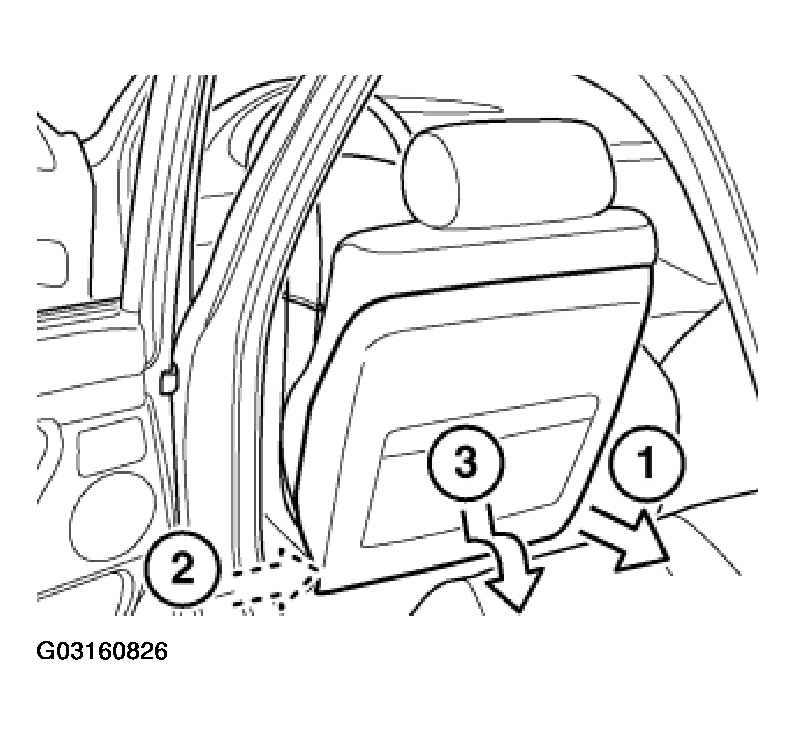

Fig 2: Removing Lower Rear Panel (Version With Luggage Pocket)

Courtesy of BMW OF NORTH AMERICA, INC.
