52 17 200 Removing and installing/replacing top rear panel on front seat backrest (luxury seat with rear-compartment-oriented equipment)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This document is not applicable to L7 driver's seat with video system in rear compartment.

Version of L7 driver's seat with video system in rear compartment, refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

Removing Top Rear Panel On Front Seat Backrest:

Remove bottom rear panel, refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

Move backrest adjustment as far forward as possible.

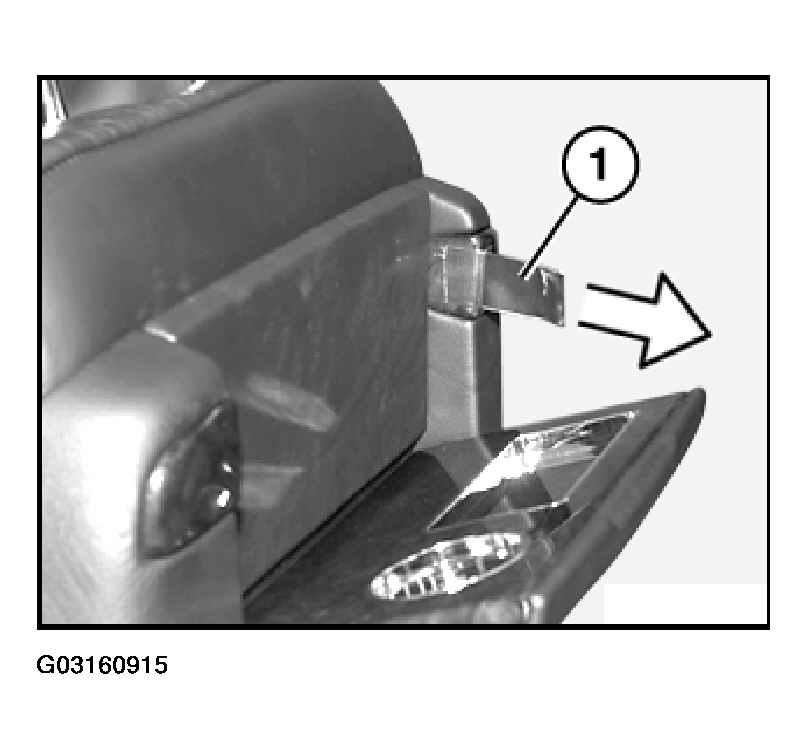

Pull off wooden finishers on left/right with fabric adhesive tape (1) jerkily towards rear/outside.

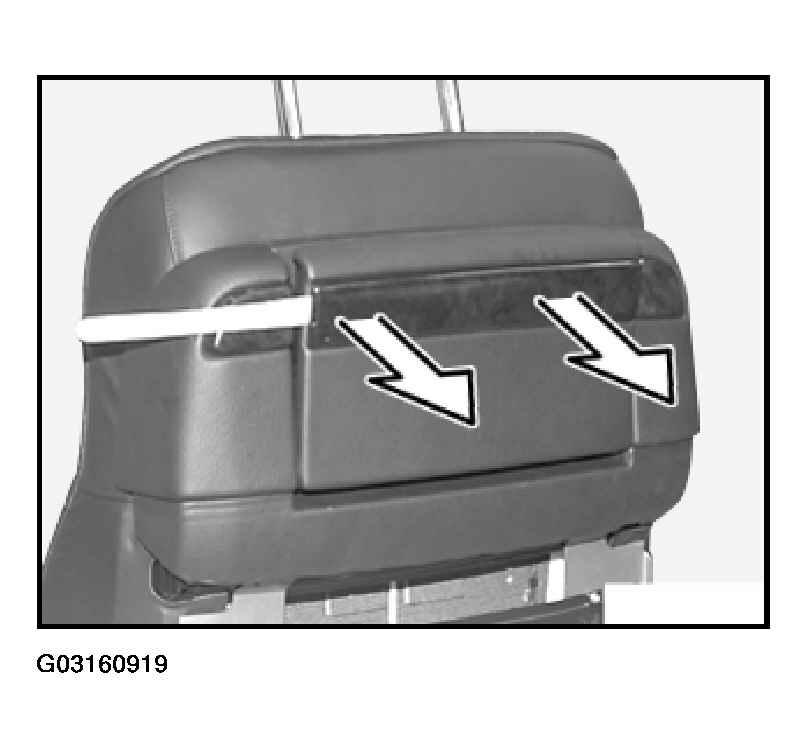

Fig 1: Removing Wooden Finishers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, remove clip from wooden finisher and install in left/right rear panel. After installation, the wooden finisher must be pressed sideways into position; wooden finisher then positions itself.

NOTE: Screw (1) must not be released to remove top rear panel. This screw (1) only serves to adjust the padding in the rear panel.

Only unfasten screw (2) for dismantling top of rear panel in next operation.

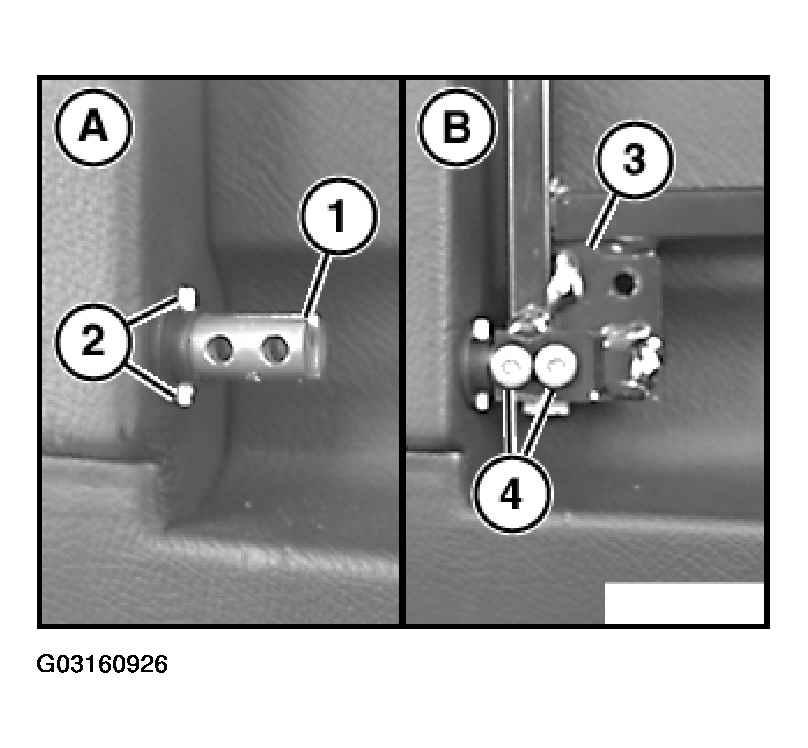

Fig 2: Removing Top Retaining Screws For Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

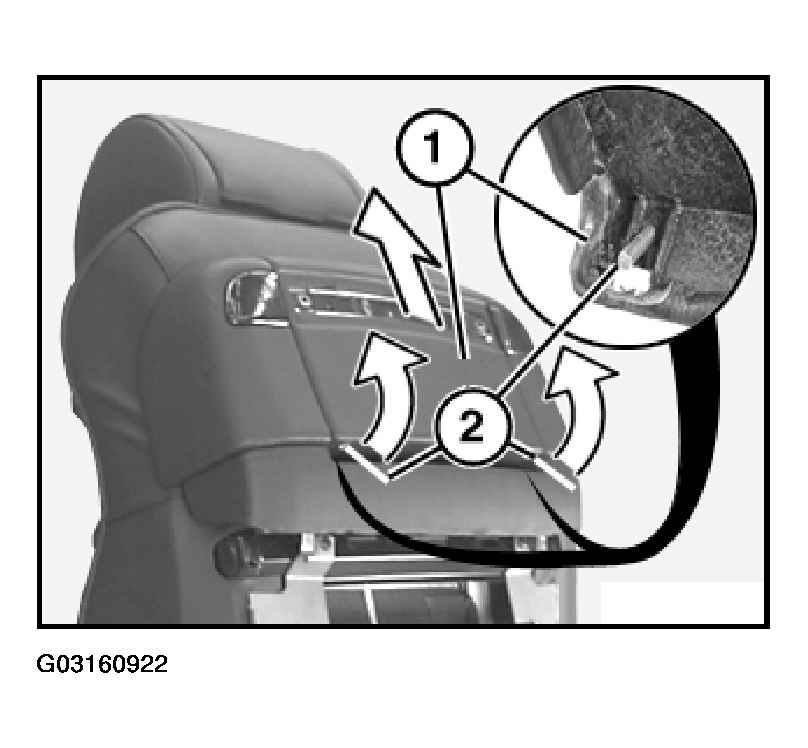

Unfasten screws starting at bottom and pull rear panel upwards to remove.

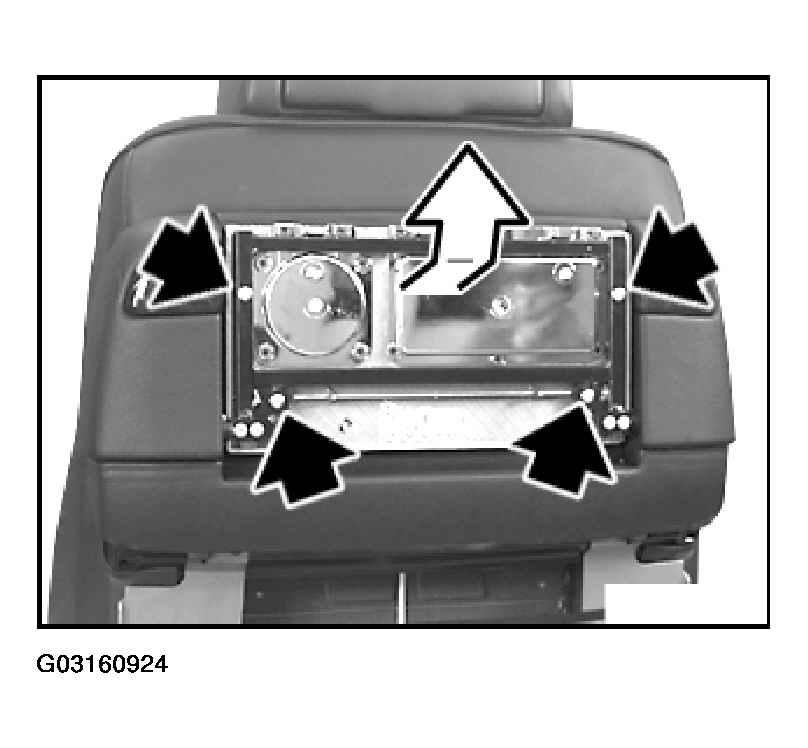

Fig 3: Removing Rear Panel Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position backrest adjustment unit fully forwards and briefly release from stop setting.

Position rear panel at top and secure with screws at top.

Installation:

Remove retaining screws and secure to backrest frame.

Tighten down all screws, starting at the bottom.

Fig 4: Installing Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Removing Top Of Rear Panel On Front Seat Backrest" ends here.

Only "Replacing Complete Top Of Rear Panel On Front Seat Backrest":

Lever out middle wooden finisher with fishbone and remove.

Install clips in aperture.

Fig 5: Removing Middle Wooden Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Replacing Complete Top Of Rear Panel On Front Seat Backrest" ends here.

Only Replace:

Unscrew nuts.

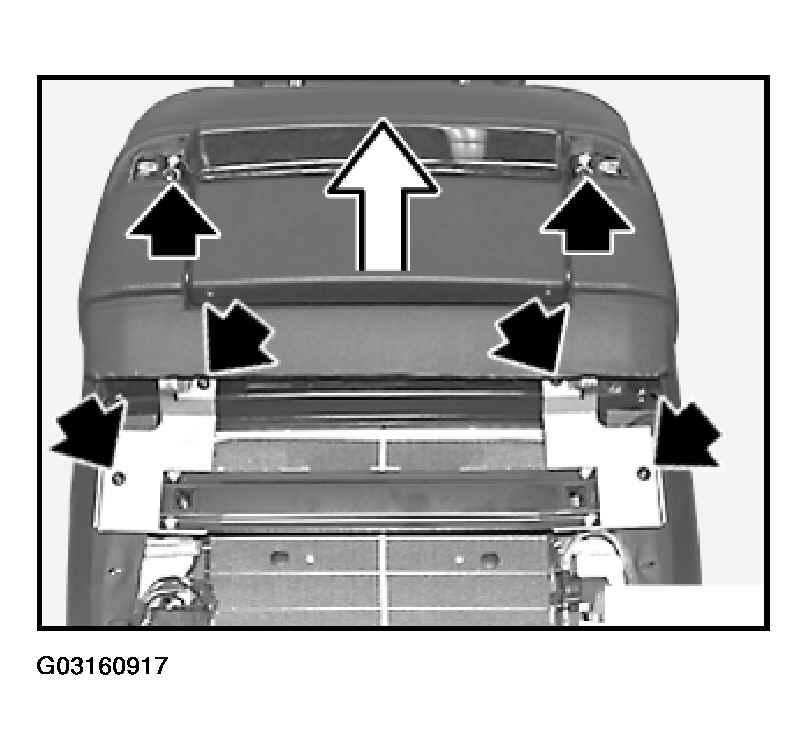

Fig 6: Removing Upper Panel Mounting Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Using a flat drill, pierce a hole on left/right.

approx. 16 mm
approx. 18 mm

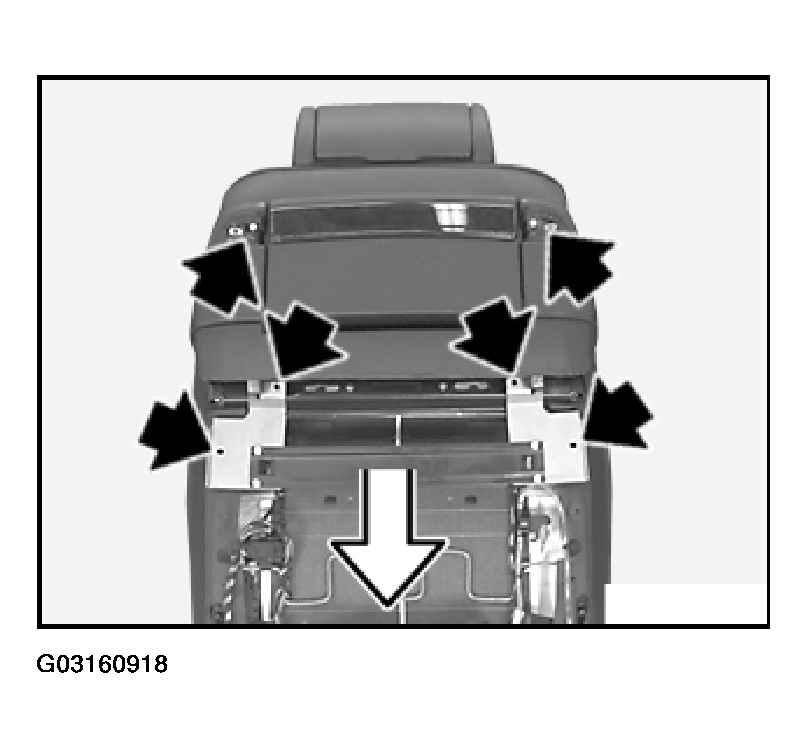

Fig 7: Identifying Location To Drill Access Hole
Courtesy of BMW OF NORTH AMERICA, INC.

Lift out bottom left/right cover (1) with 3 mm dia. cotter pin driver (2).

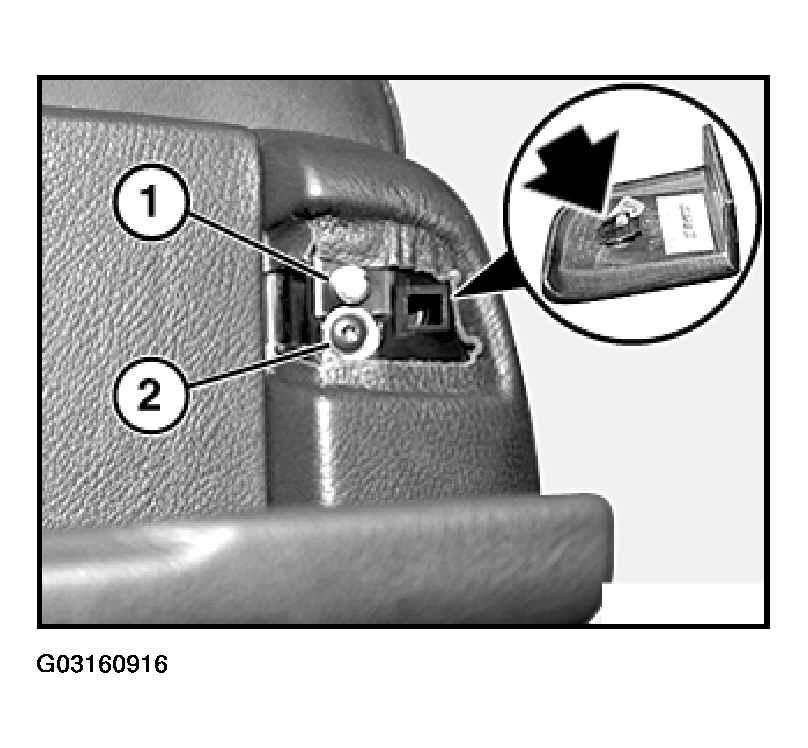

Fig 8: Removing Pins From Upper Panel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install cover (1) in recess on frame (2) and clip into bottom.

The clips and recesses must not be damaged.

Fig 9: Installing Upper Panel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Turn flap backwards and pull plate upwards to remove.

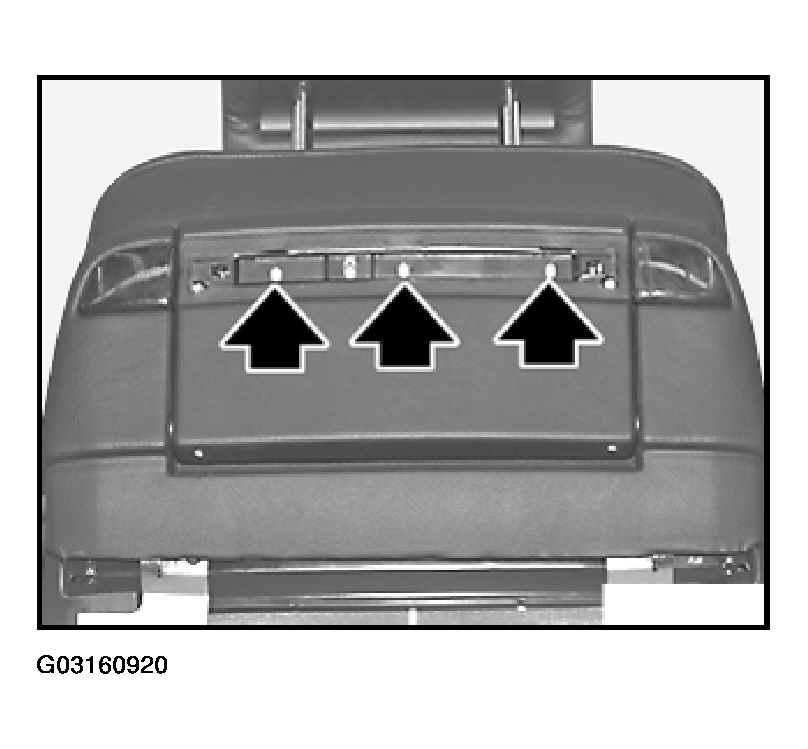

Fig 10: Removing Plate Table

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Only use original screws (short version 10 mm) because otherwise the surface of the table can be damaged.

Slide plate completely downwards.

CAUTION: Risk of damage if frame (2) is released jerkily.

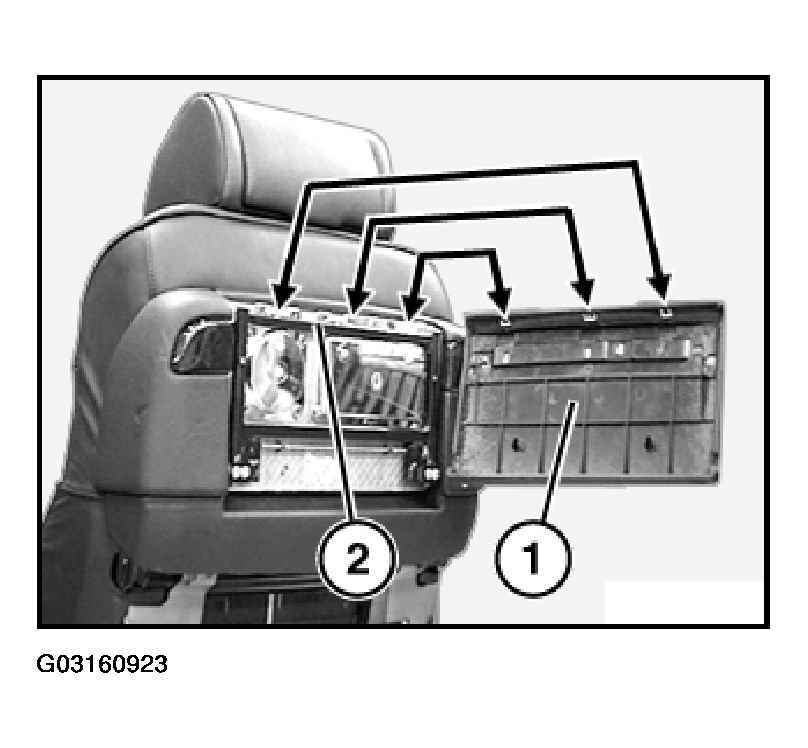

Unfasten screws (1) and pull frame (2) obliquely upwards to remove.

Unfasten screws (3) and remove connecting plate (4).

Unfasten screws (5) and invert rear panel.

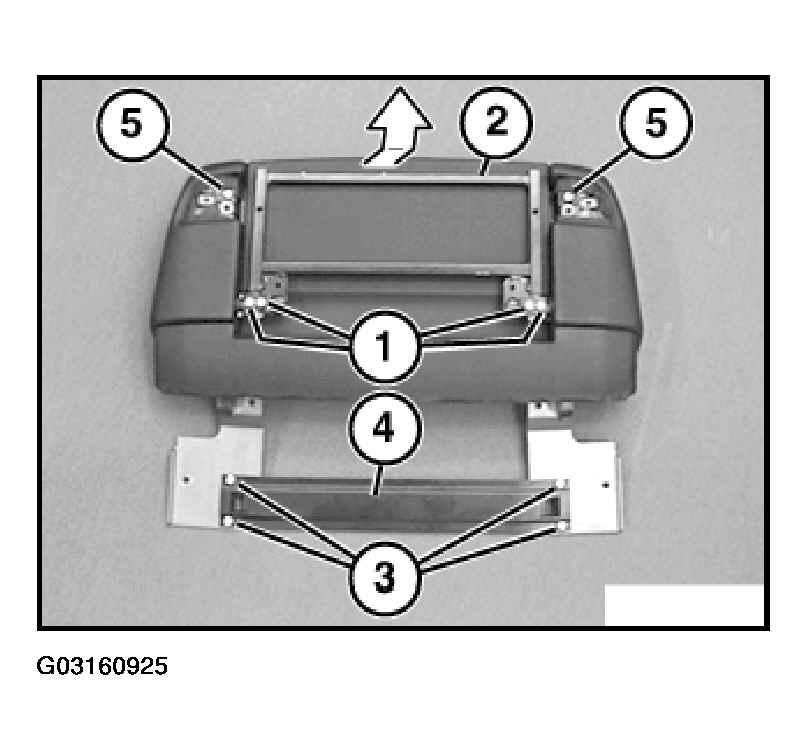

Fig 11: Removing Connecting Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert all screws but do not tighten down.

Thread must point forwards (1) and washer (2) must turn in installation position
Insert chassis (3) and tighten down screws (4) on left/right.

Check function.

Fig 12: Installing Connecting Plate Screws

Courtesy of BMW OF NORTH AMERICA, INC.

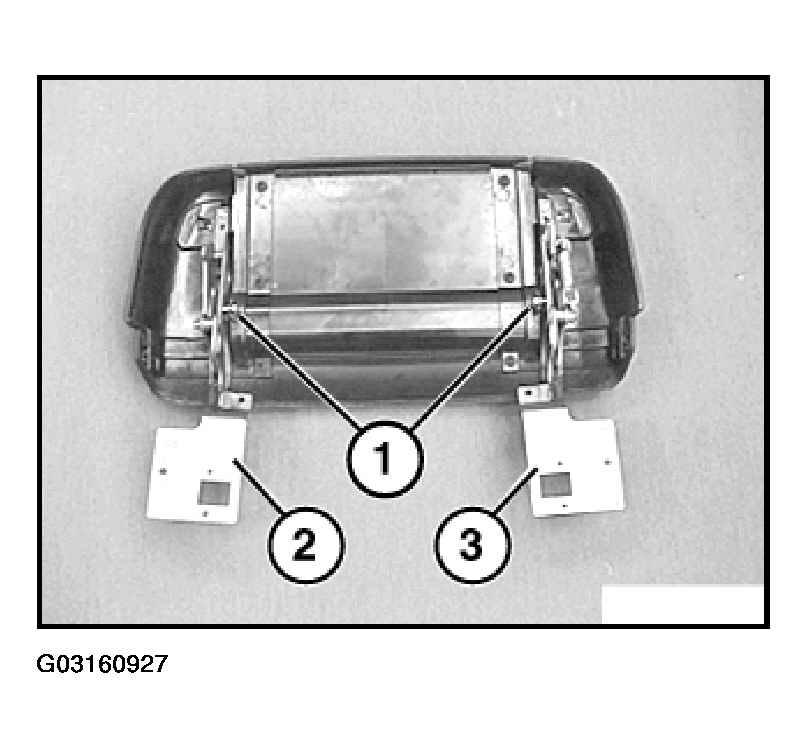

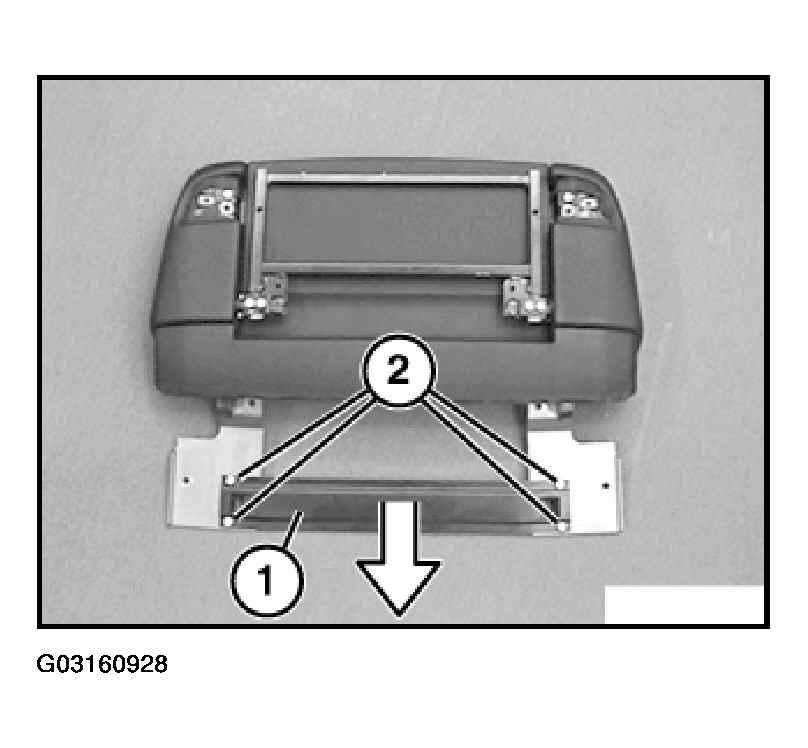

Unfasten screws (1) and remove linings (2) and (3).

Fig 13: Removing Connecting Plate Linings

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pull connecting plate (1) downwards and tighten down screws (2).

Fig 14: Installing Connecting Plate

Courtesy of BMW OF NORTH AMERICA, INC.

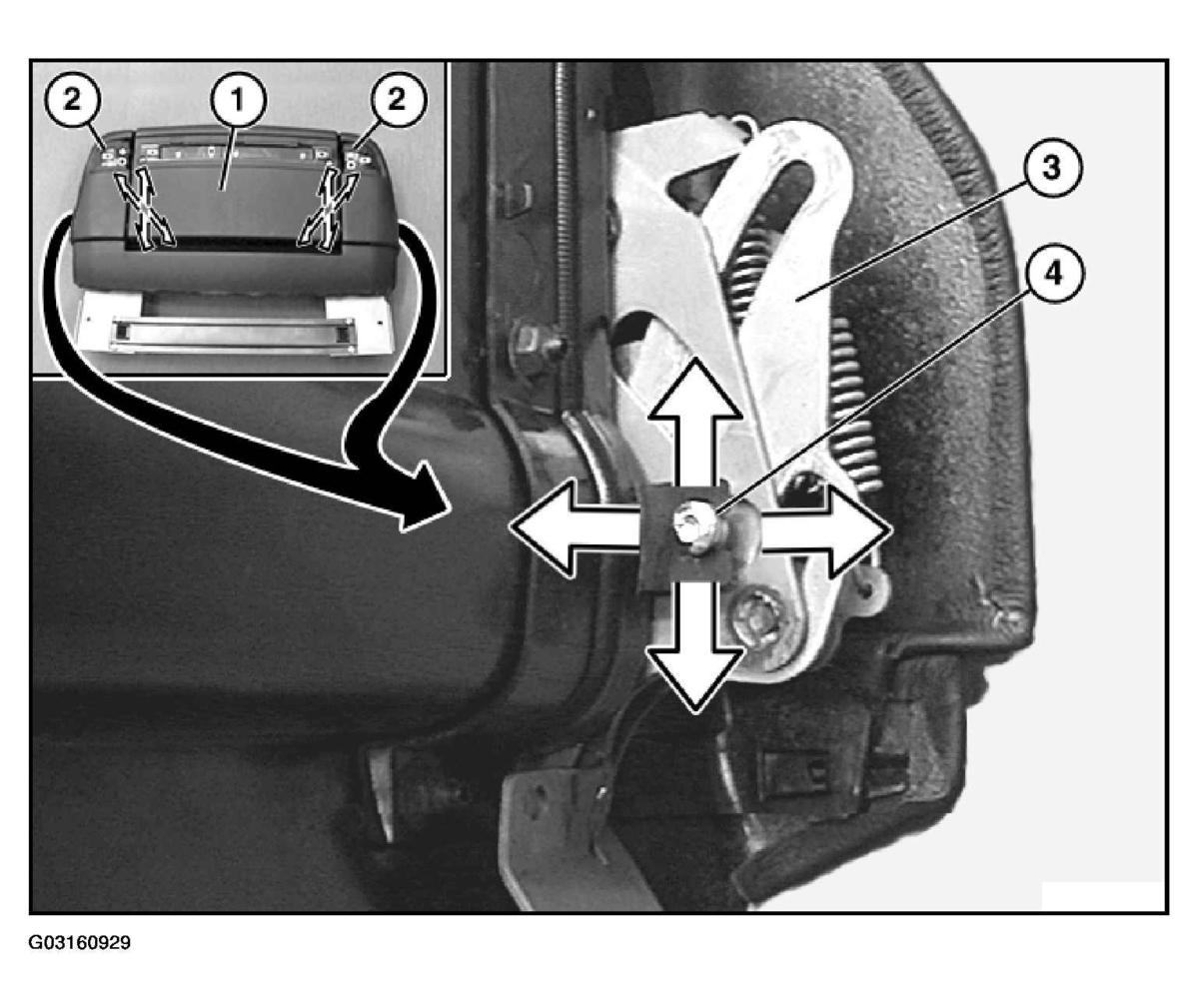

Completely assemble folding table.

The folding table (1) can be adjusted upwards, downwards, forwards and backwards.

After adjusting the screws (2), tighten screws (4) down onto lining (3).

Fig 15: Identifying Adjusting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

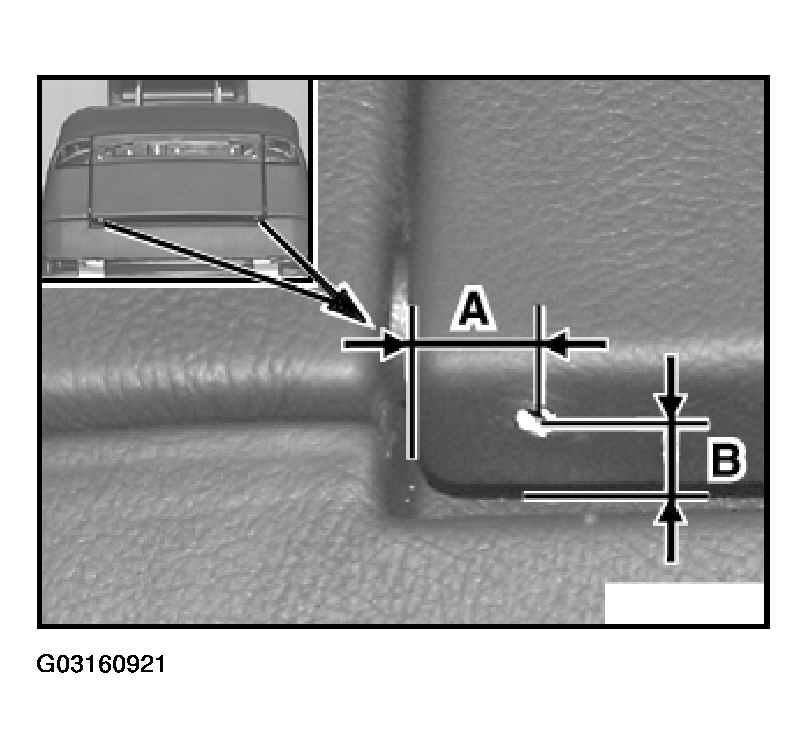

Adjust gap (A):

(A) must be the same on left/right

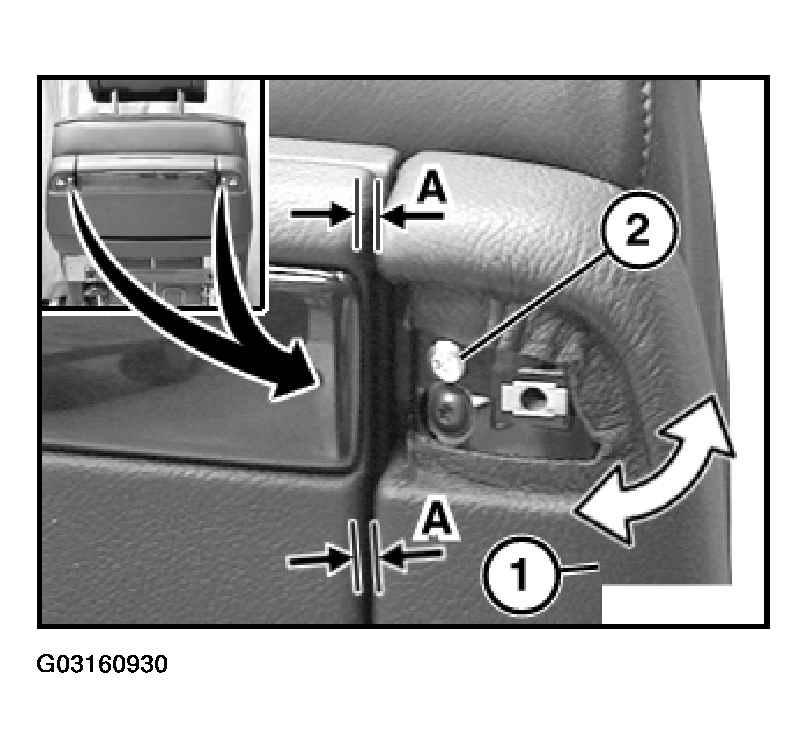

Move rear panel outer section (1) and tighten down screw (2).

Fig 16: Adjusting Upper Panel
