52 17 040 Removing and installing/replacing cover on left or right front seat (comfort)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten seatbelt screw.

Tightening torque - 31 N.m.

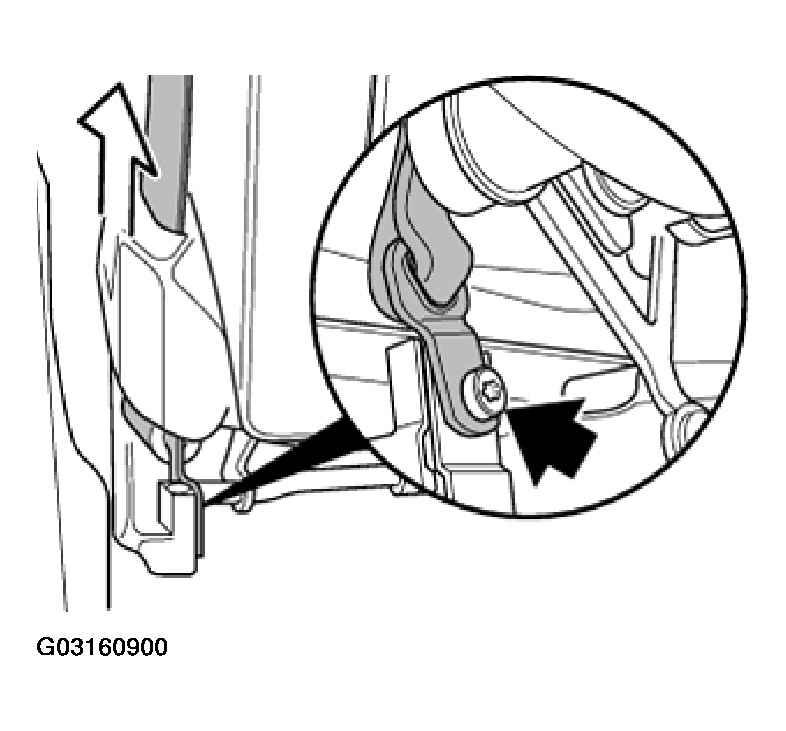

Fig 1: Removing Seatbelt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Move back seat cover slightly to one side and unfasten screws.

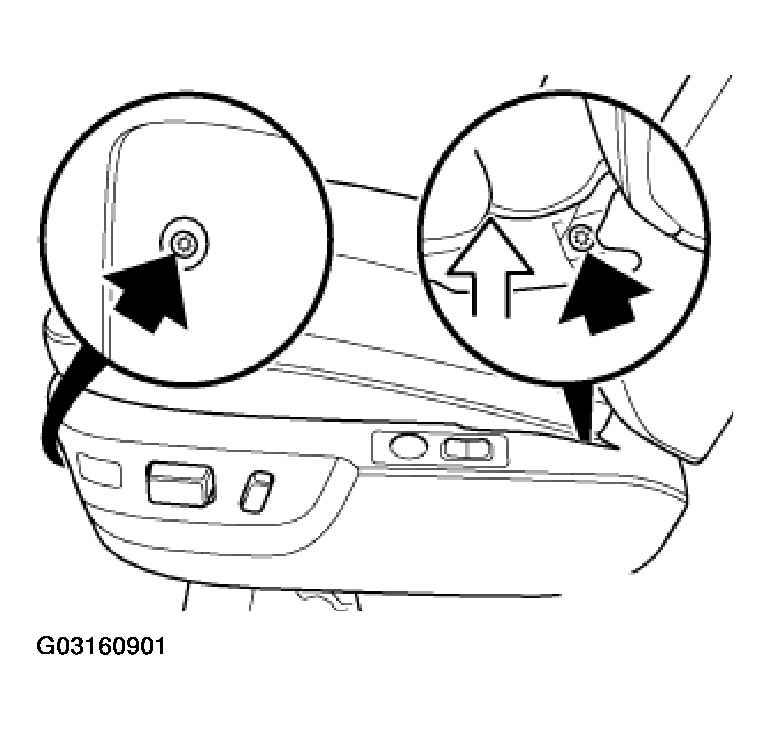

Fig 2: Removing Outside Seat Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clips.

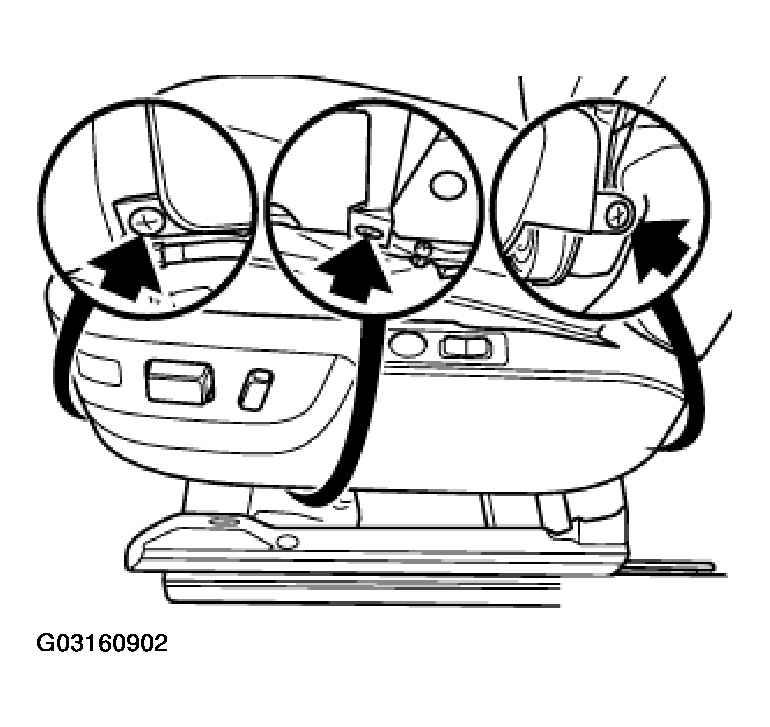

Fig 3: Removing Outside Seat Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

If rear clip is not accessible:

If necessary, unhook rear panel at bottom (without removing rear panel at top), refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

CAUTION: Risk of damaging detent lugs on central clip (3).

Press down cover from above and turn downwards to remove.

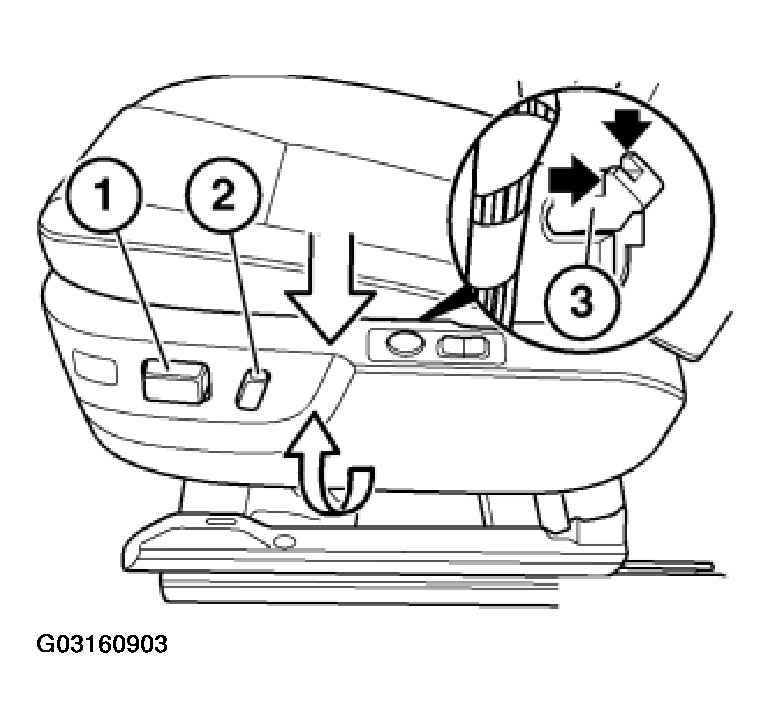

Fig 4: Removing Outside Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Only Replacing:

Pull off operating knobs (1) and (2).

Version With Lumbar Switch At Side As Of Model Year 1996:

Unlock and remove cable connector (1).

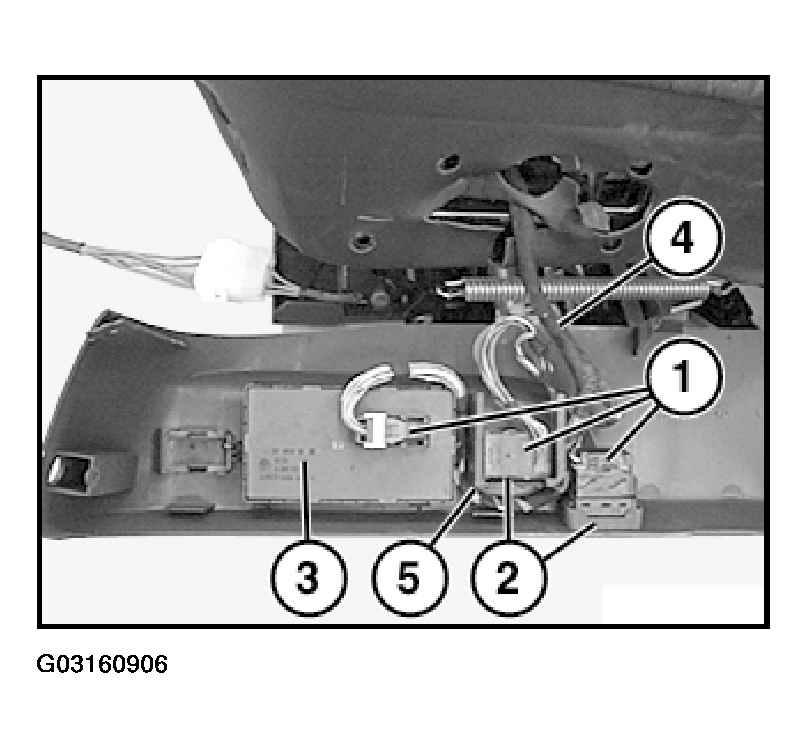

Fig 5: Removing Seat Adjustment Switches

Courtesy of BMW OF NORTH AMERICA, INC.

Remove switch (2) and switch combination (3) for seat adjustment.

Remove cover.

Installation:

Wiring harness (4) must be routed around support for central clip (5).
