5 2 17 041 Removing and installing/replacing inside cover from left or right front seat (comfort)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat, refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) or 52 17 000 REMOVING AND INSTALLING FRONT SEAT (COMFORT) .

Unscrew screws (1) and (2).

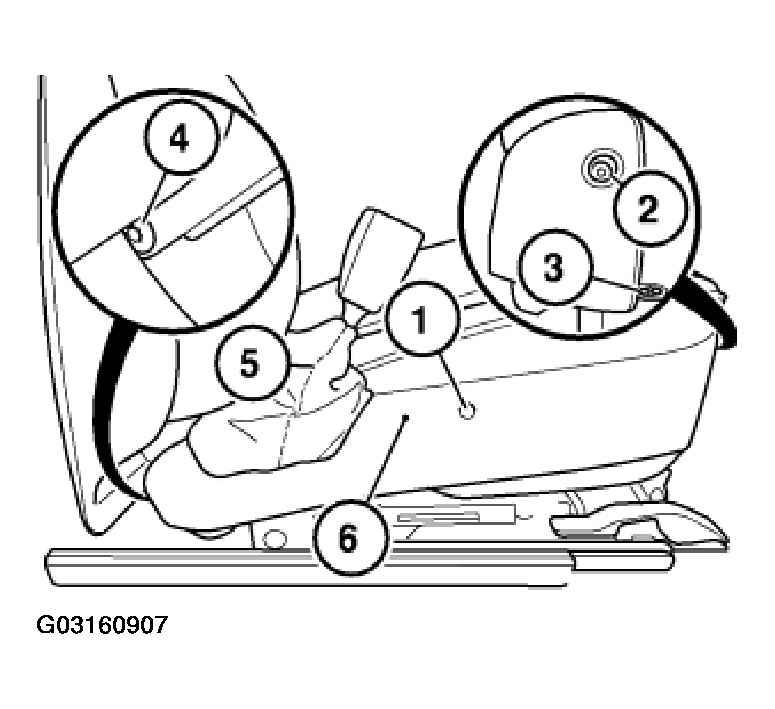

Fig 1: Removing Inside Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clips (3) and (4).

Open finisher cover (5) (burr fastener) and remove cover (6).

If rear clip is not accessible:

If necessary disconnect lower back wall (without dismantling top back wall), refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .
