52 14 899 Additional work (normal/electric) with defective drive for longitudinal adjustment: Notes

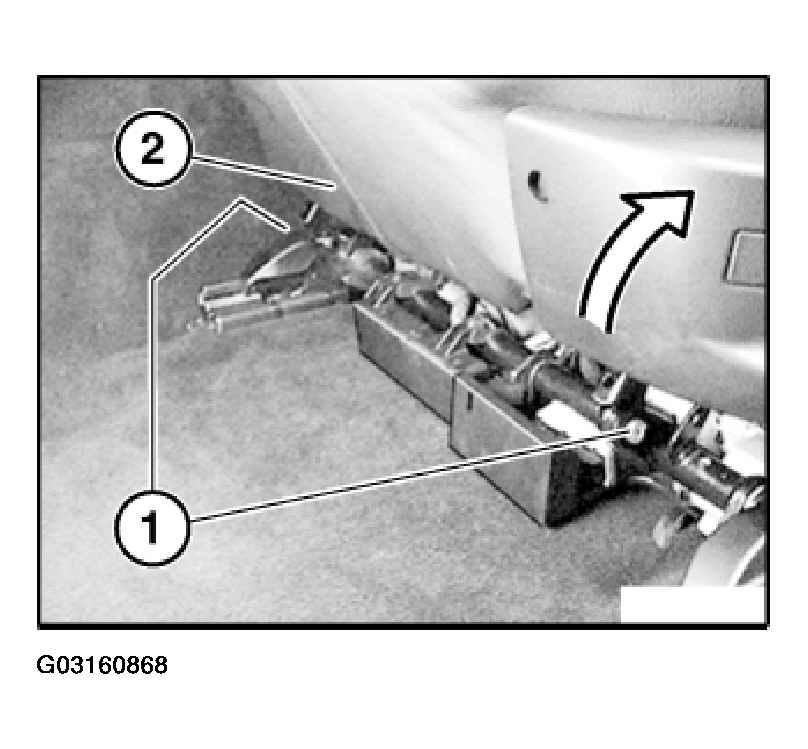

Move backrest forward to maximum extent.

Move front seat back/upwards, until screws (1) are accessible.

Release screws (1) on front seat (2).

Fig 1: Releasing Screws On Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace screws (micro-encapsulation).

Tightening Torque, refer to 52 10 6AZ in SEATS - TIGHTENING TORQUES .

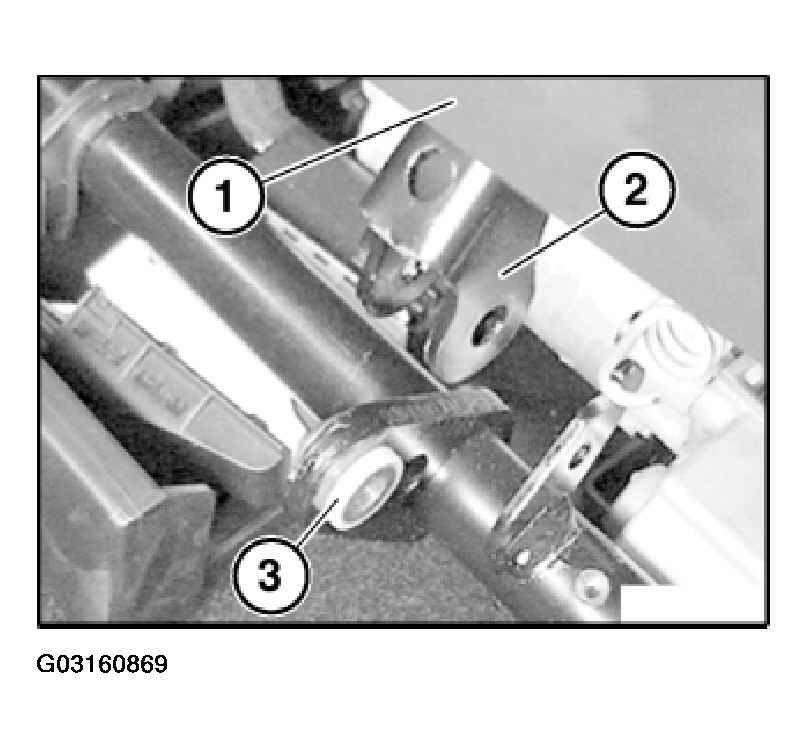

Raise front seat (1), until support (2) is free of sleeve (3) on left/right.

Do not move front seat completely backwards (cable).

Fig 2: Raising Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.

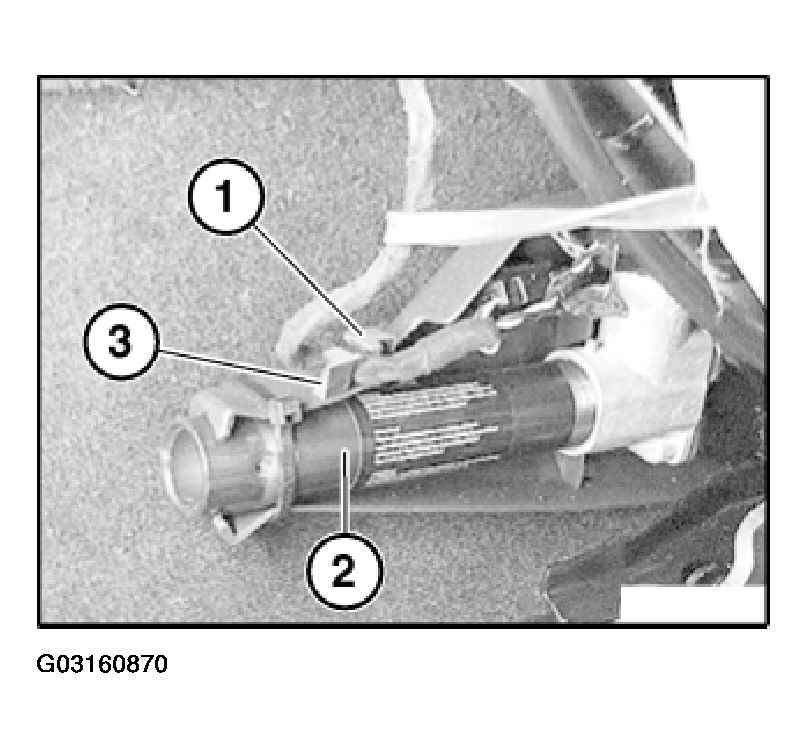

Raise front seat a little.

Feed cable (1) for belt tensioner (2) out of support (3).

Disconnect plug connection from servodrive for longitudinal seat adjustment.

Fig 3: Removing Feed Cable For Belt Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

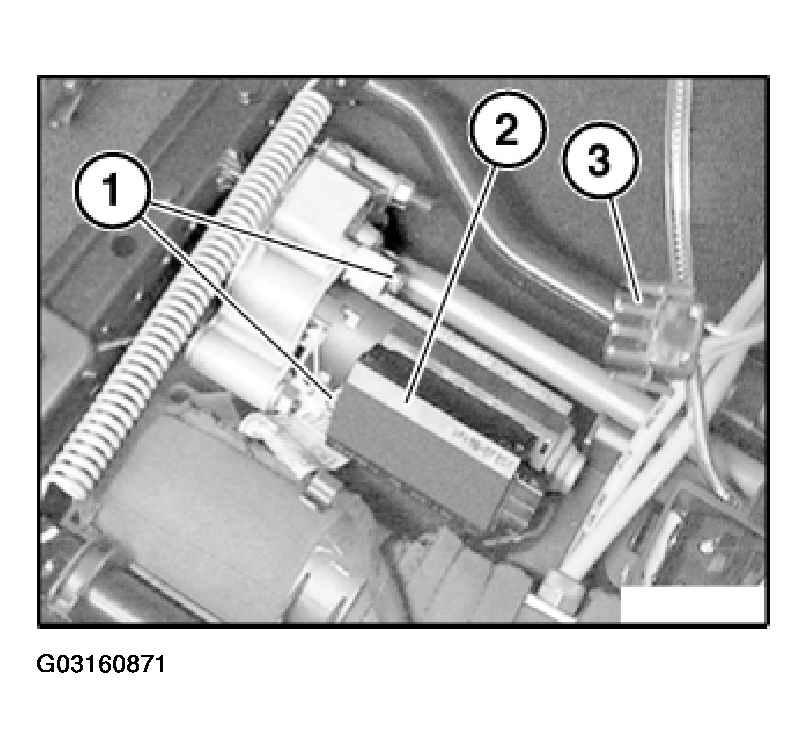

Tilt front seat (electric) back so that it does not yet touch rear seat bench.

Release screws (1) from servodrive (2) for longitudinal seat adjustment and detach servodrive (2).

Fig 4: Removing Longitudinal Seat Adjustment Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3) to servodrive for longitudinal seat adjustment.

Activate the operating switch for the seat position adjustment:

1. No function:
   • Disconnect Plug Connection (3).
   • Connect New Servodrive (2)
   • Check Function
   • If Servodrive Is Running, Gear Is O.K.
   • Reassemble Front Seat
2. Actuator drive running:
   • Transmission for longitudinal seat adjustment defective!
   • Continue with

     Disassembly of faulty gear for longitudinal seat adjustment.
