51 43 148 Removing and installing or replacing trim on left or right door column (top)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten seatbelt screw on front seat.

Installation:

Tightening torque - 31 N.m.

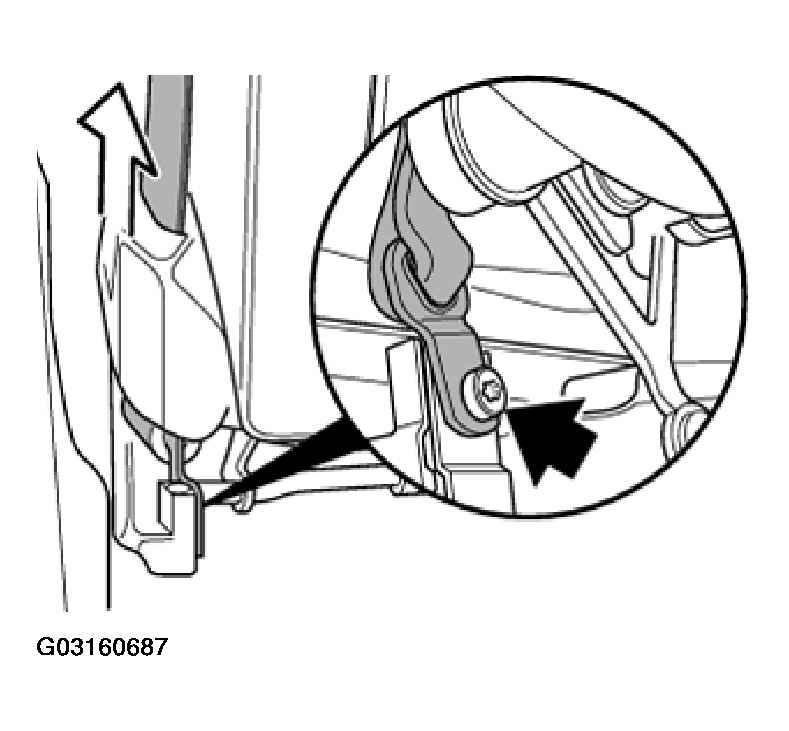

Fig 1: Removing Seatbelt Screw On Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim panel for door pillar (bottom), refer to 51 43 150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR COLUMN (BOTTOM) .

Remove mucket in area of trim for door pillar at top.

Unclip trim panel at bottom towards inside.
Detach out trim panel towards bottom.

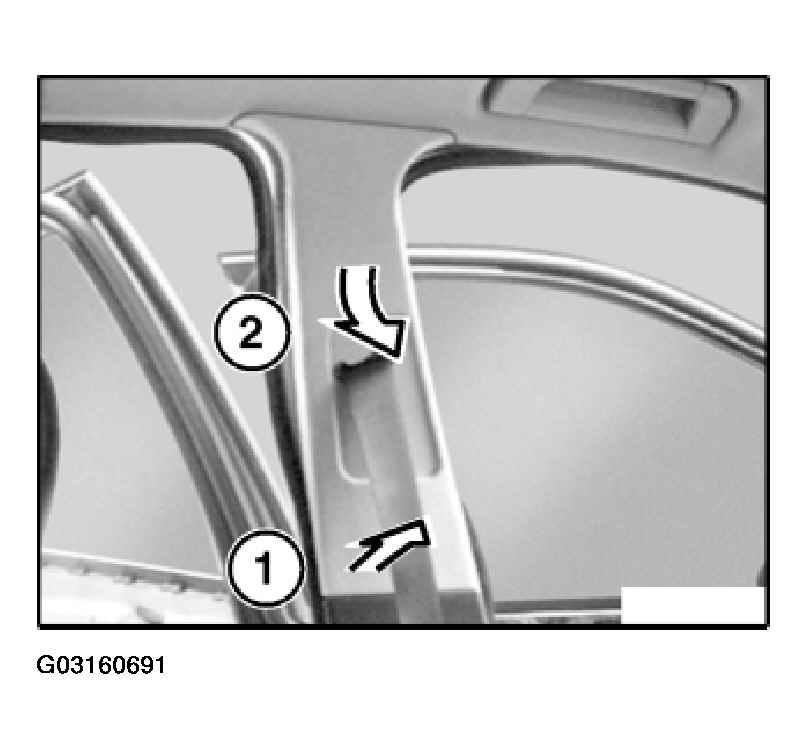

Fig 2: Removing Mucket For Door Pillar At Top
Courtesy of BMW OF NORTH AMERICA, INC.

Version from 9/97:

Installation:

If necessary, replace defective clips (1). Mounts (2) must not be damaged.

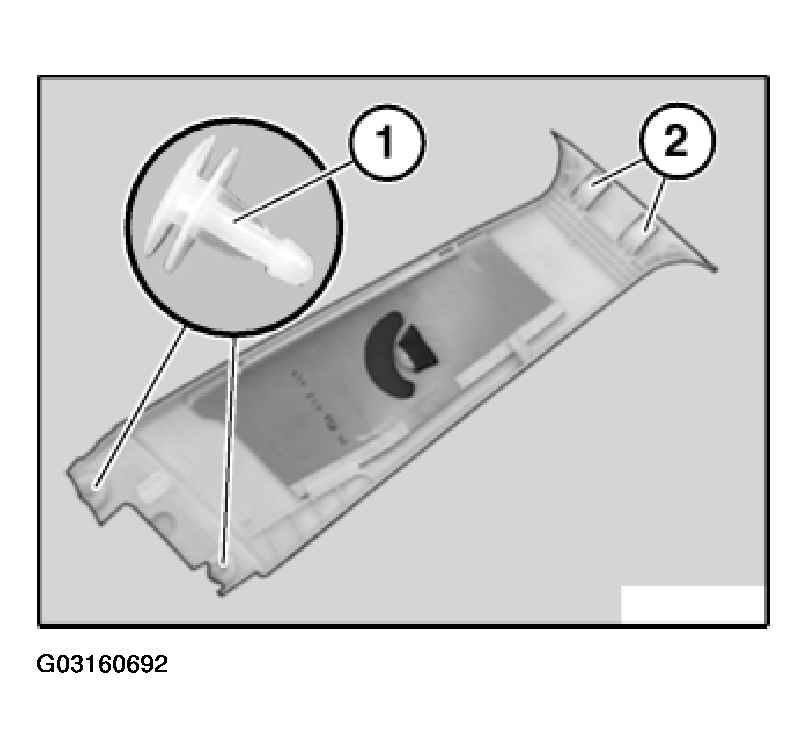

Fig 3: Replace Any Defective Or Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.
