51 34 211 Replacing rubber guide for rear left or right door window

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install cover on fixed door window of inside rear door, refer to 51 34... REMOVING AND INSTALLING/REPLACING COVER ON FIXED DOOR WINDOW OF REAR DOOR, INSIDE LEFT OR RIGHT .

Raise window cavity cover strip on rear door, outside front (do not remove), refer to 51 22 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON REAR DOOR ON LEFT OR RIGHT .

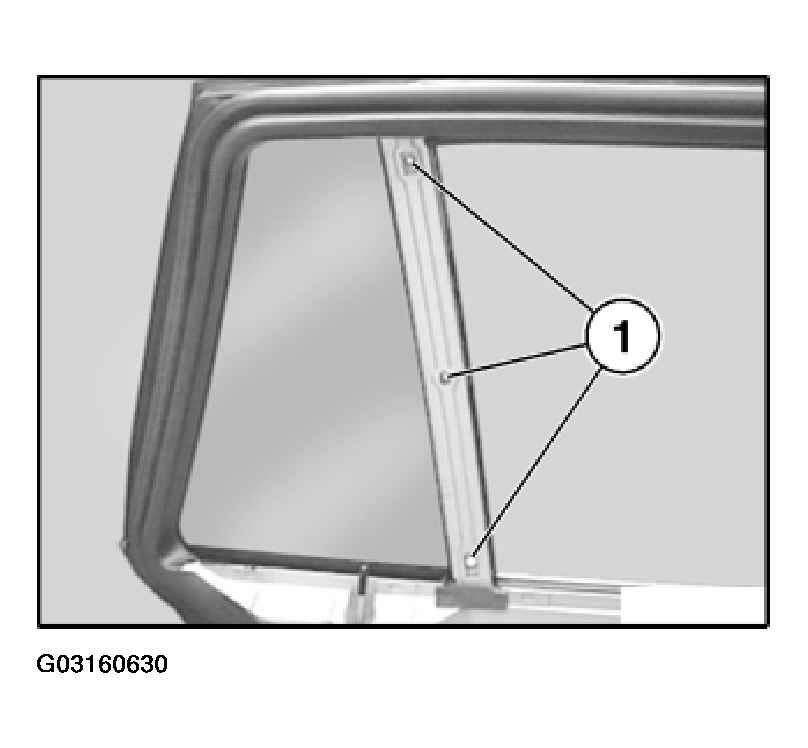

Unscrew bolts (1).

Fig 1: Removing Bolts (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber guide (1) and remove trim (2) upwards.

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber guide (1).

Fig 3: Removing Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.
