51 24 300 Removing and installing or replacing left or right gas strut for trunk lid

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.

Lift out retaining disc (1) and spring (2).

Lift out gas strut.

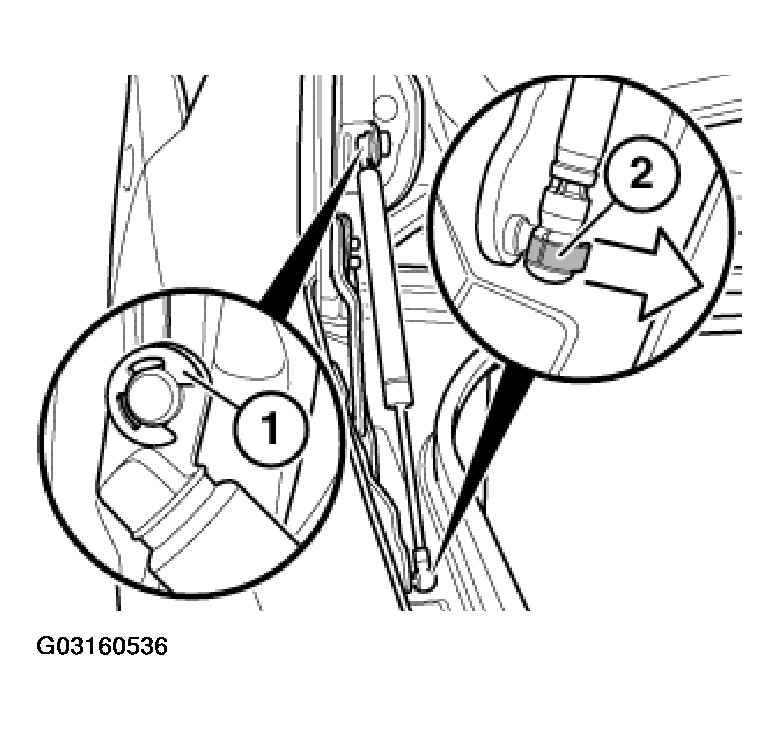

Fig 1: Replacing Trunk Lid Gas Strut

Courtesy of BMW OF NORTH AMERICA, INC.
