51 12 801 Replacing bracket for rear bumper at left or right

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER .

Installation:

If necessary, mark position of bracket on body.

Unfasten screws and remove bracket (1).

Tightening torque, refer to 51 12 5AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

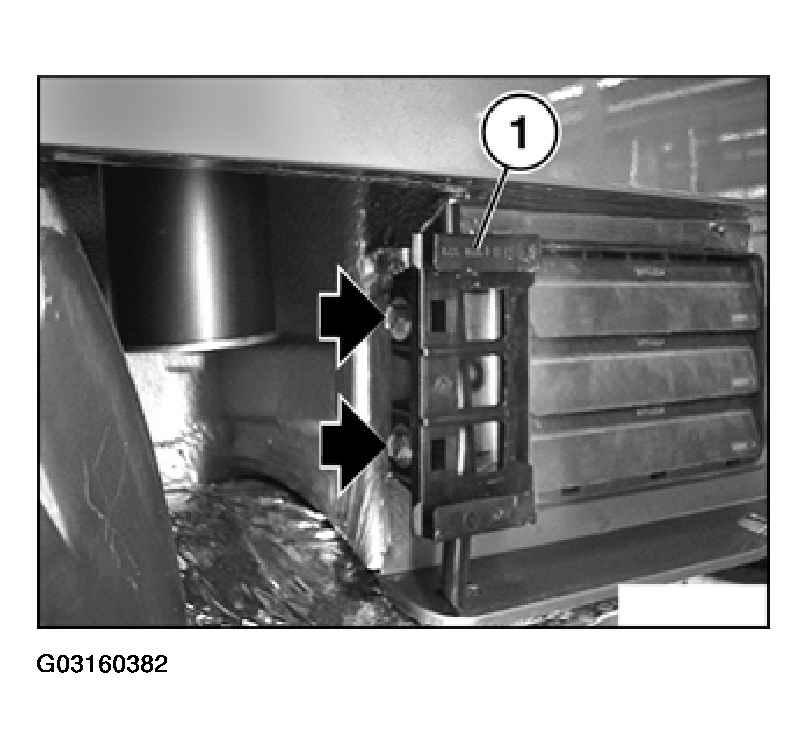

Fig 1: Removing Rear Bumper Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

Distance (A) on side between bumper and body-cutout is to be the same.

Dimension (A) = 5 +/- 1 mm

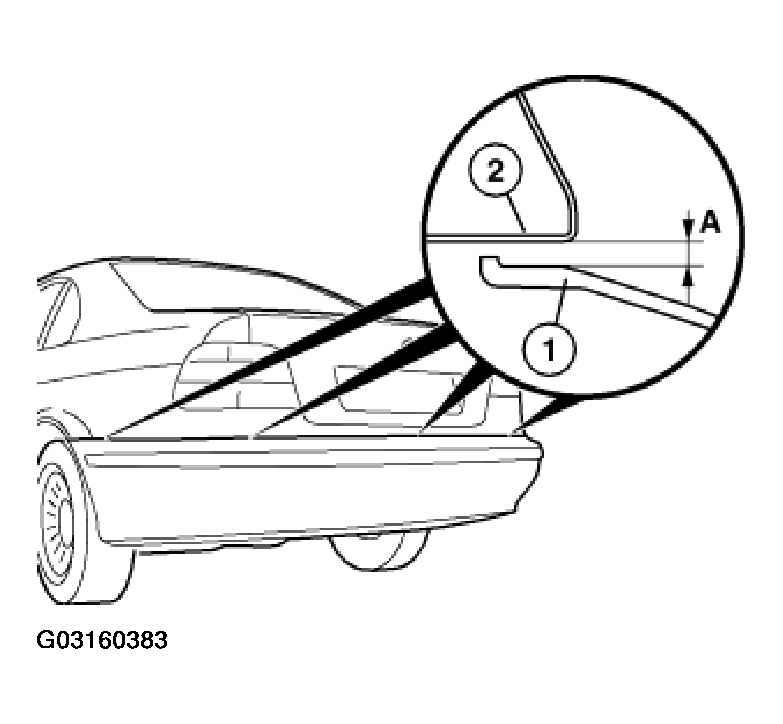

Fig 2: Adjusting Rear Bumper To Body Cutout Gap

Courtesy of BMW OF NORTH AMERICA, INC.
