51 46 050 Removing and installing/replacing finisher for top of rear apron.

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid and left/ right flaps.

Unfasten left/right nuts.

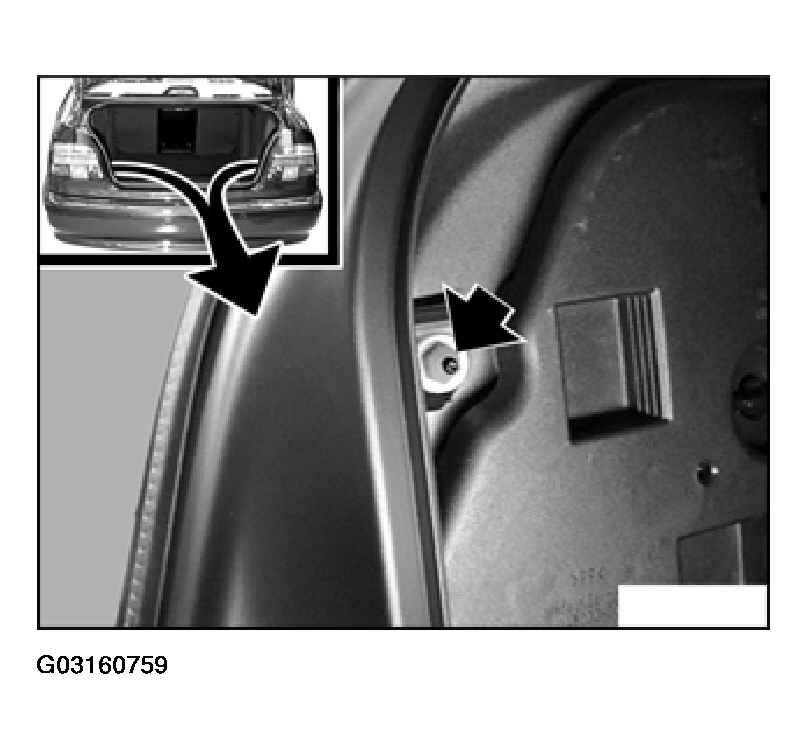

Fig 1: Remove Left/Right Nuts As Illustrated

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten expanding rivets and remove finisher strip.

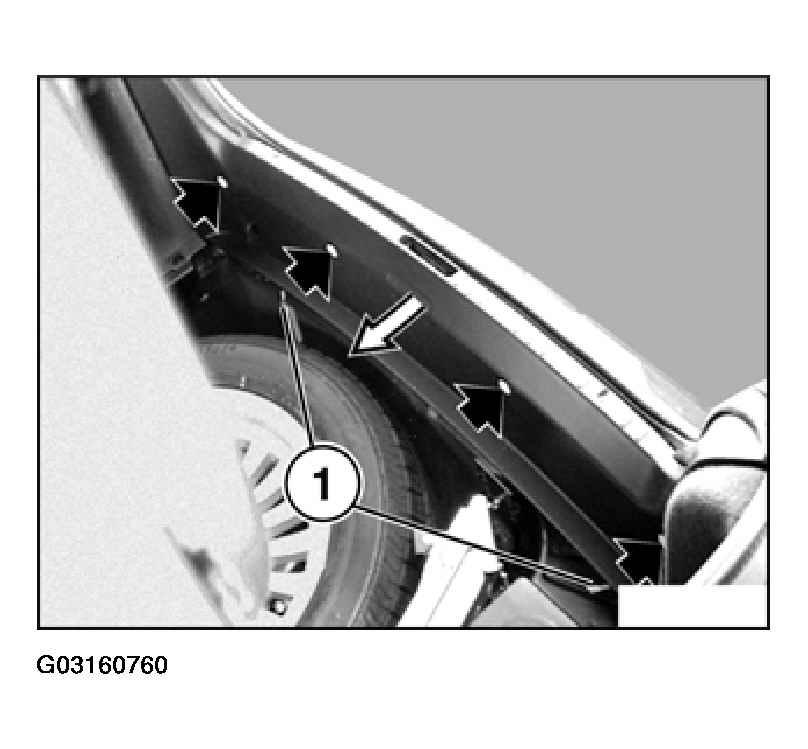

Fig 2: Removing Finisher Strip For Top Of Rear Apron

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert guide spigot (1) on finisher into bottom of tail panel.
