51 16... Replacing left or right outside mirror housing

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove mirror glass, refer to 51 16 026 REPLACING MIRROR GLASS .

Mirror With Automatic Dip Action:

Tilt mirror forward. Unclip retaining clips and remove cover.

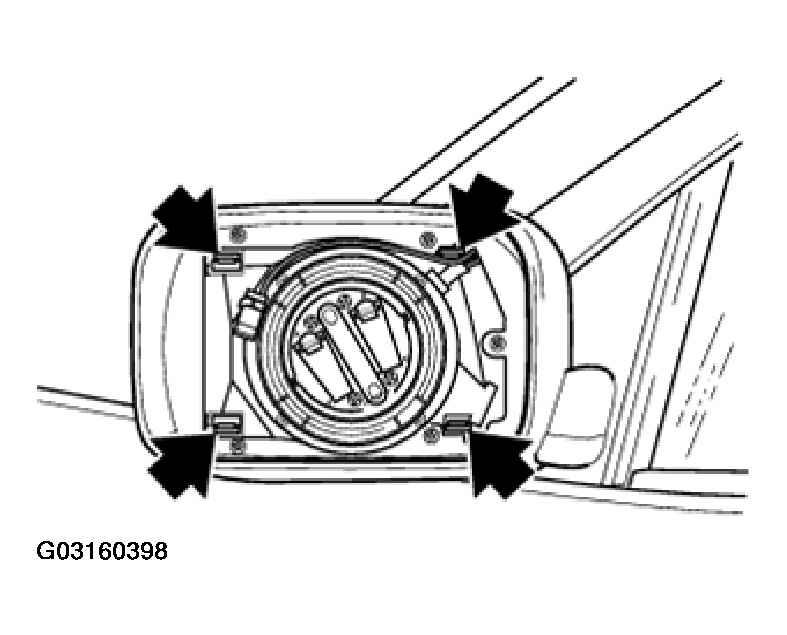

Fig 1: Removing Mirror Cover (With Automatic Dip Action)

Courtesy of BMW OF NORTH AMERICA, INC.

Mirror with automatic dip action:

Fold mirror forward again as far as possible.

Unfasten screws and remove "housing glasses".

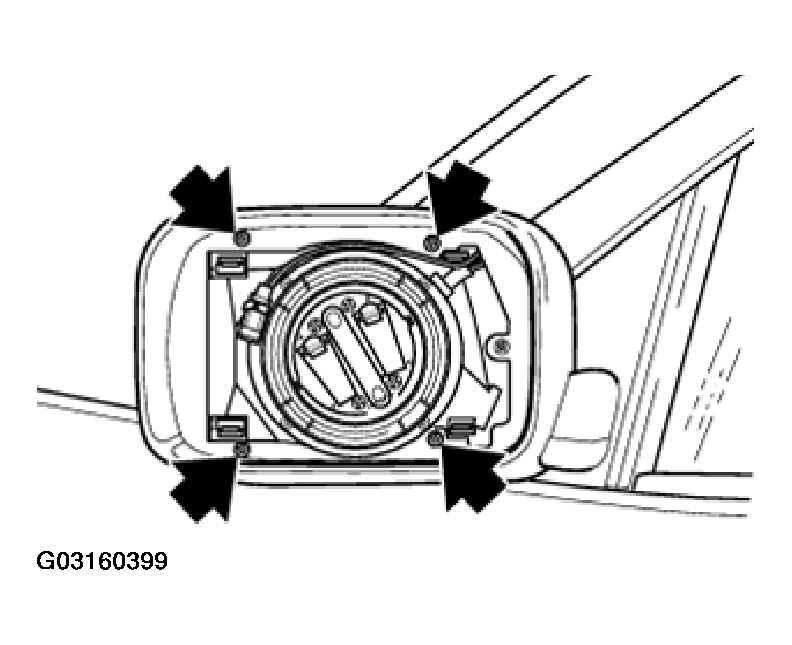

Fig 2: Removing Mirror Housing Glasses (With Automatic Dip Action)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check function.

Mirror Without Automatic Dip Action:

Tilt mirror forward. Unclip retaining clips and remove cover.

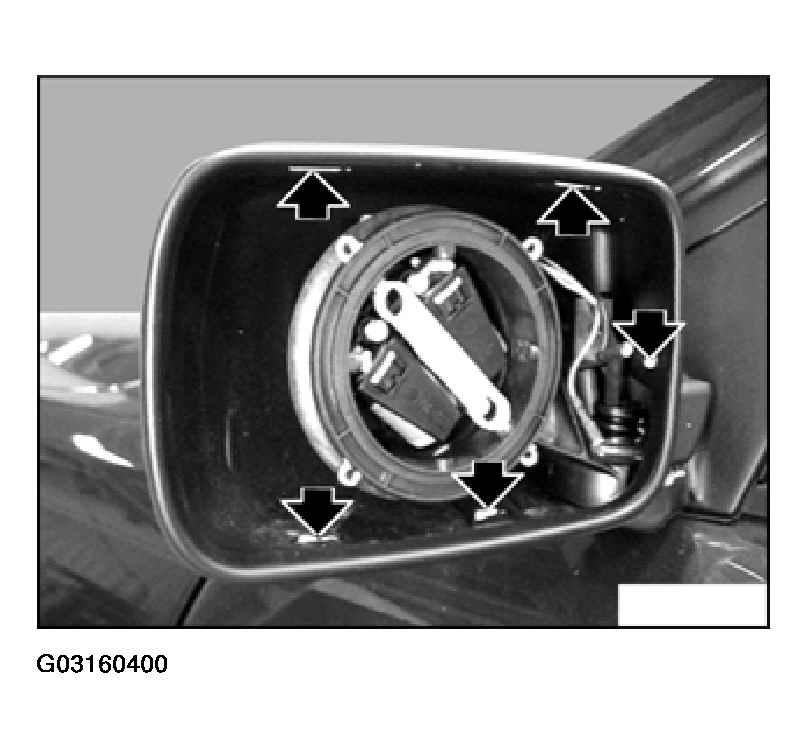

Fig 3: Removing Mirror Cover (Without Automatic Dip Action)

Courtesy of BMW OF NORTH AMERICA, INC.
