51 16 340 Removing and installing/replacing glovebox lockpin

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

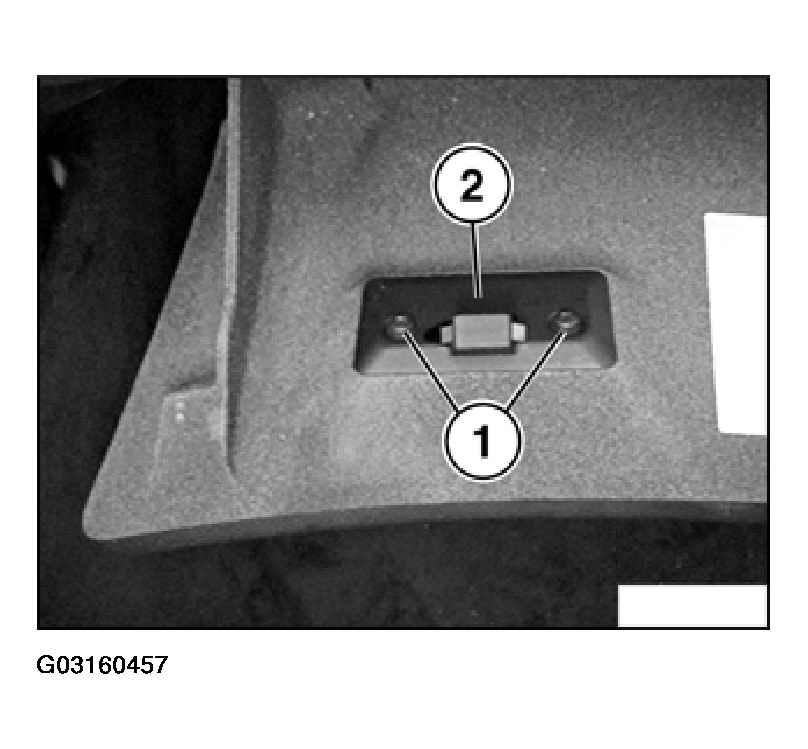

Unfasten screws (1) and remove upper (2) and lower sections of lock.

Fig 1: Removing Upper And Lower Sections Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

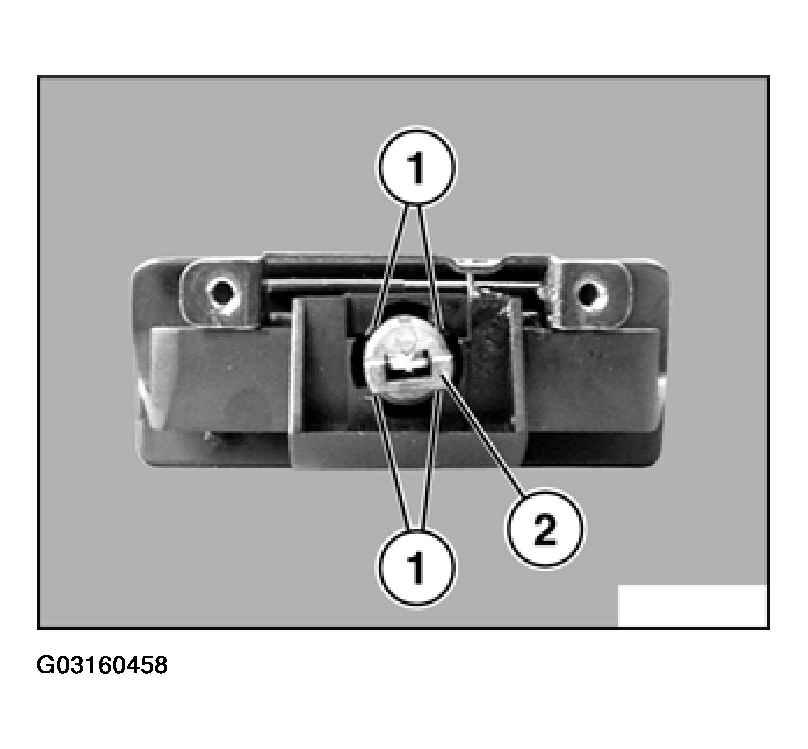

Insert vehicle key in lock cylinder (2).

Break open locks (1) if necessary and pull out lock cylinder (2) with vehicle key.

Fig 2: Removing Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
