51 16 202 Removing and installing/replacing can holder (front)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Open both can holders (1) somewhat.

Unfasten screws (2).

Lift can holder to one side and remove.

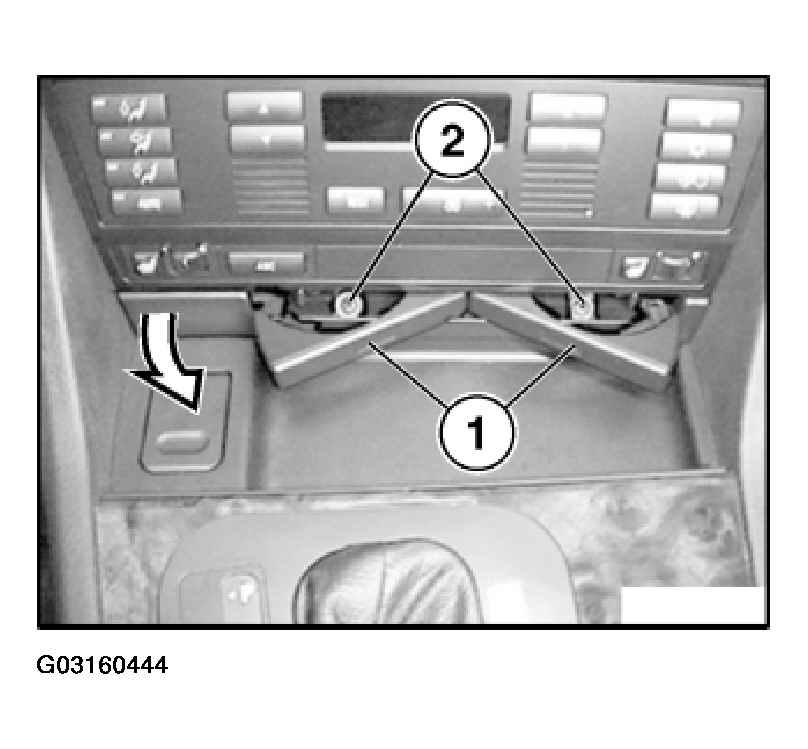

Fig 1: Removing Can Holder

Courtesy of BMW OF NORTH AMERICA, INC.
