51 16 080 Removing and installing or replacing sun visor and left or right counter support

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Lift out sun visor.

Lift out finishers on counter support and joint and unfasten screws.

Pull lighting wire out slightly and disconnect connector.

Installation:

Perform function check on lighting.

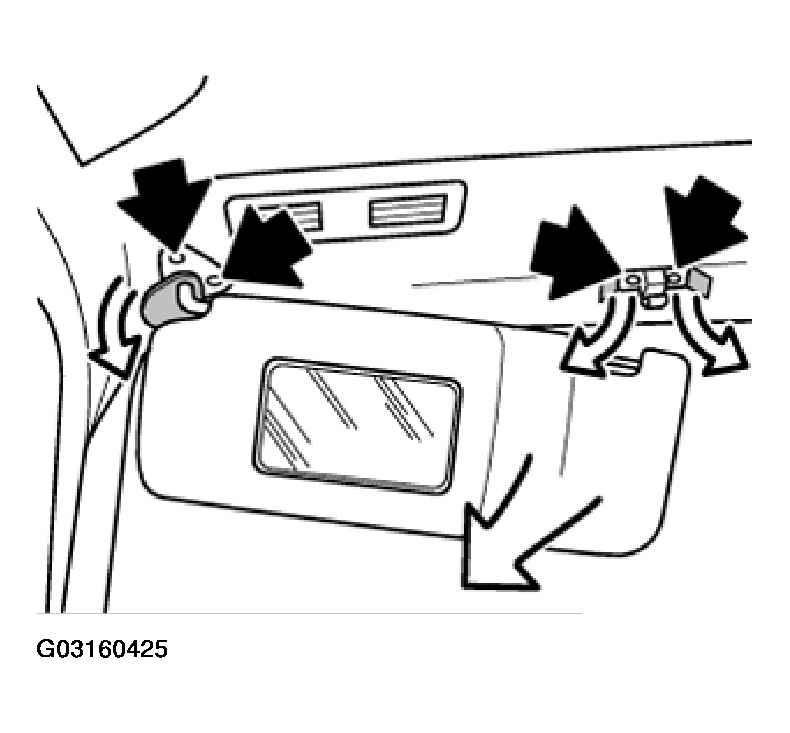

Fig 1: Removing Sun Visor

Courtesy of BMW OF NORTH AMERICA, INC.
