Removal Of Versions (C) And (D):

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

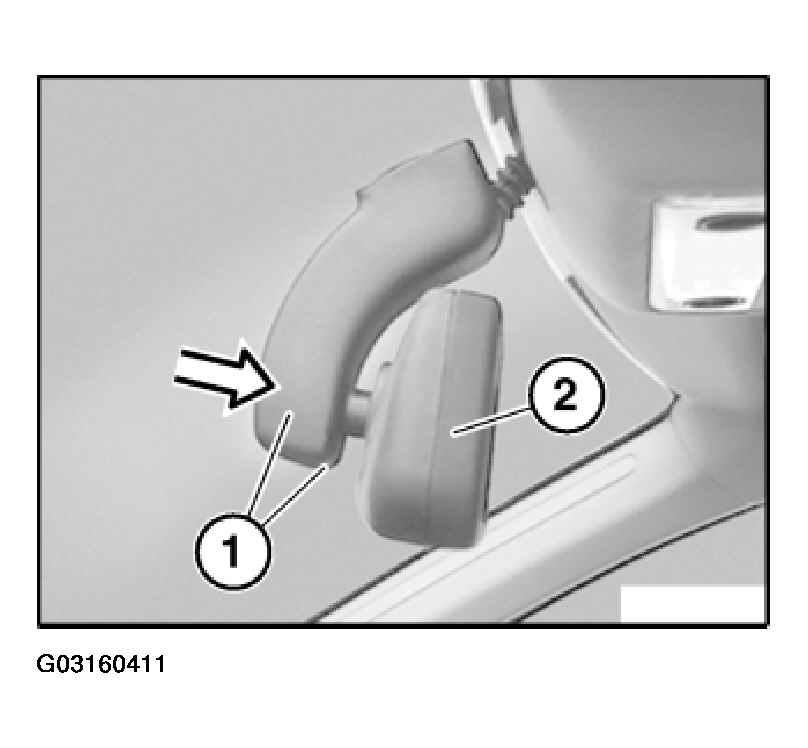

Press end caps (1) towards mirror housing (2); this releases clip connection of both caps (1).

Fig 1: Releasing Clip Connection Of Mirror End Caps Versions (C) & (D)

G03160411

Courtesy of BMW OF NORTH AMERICA, INC.

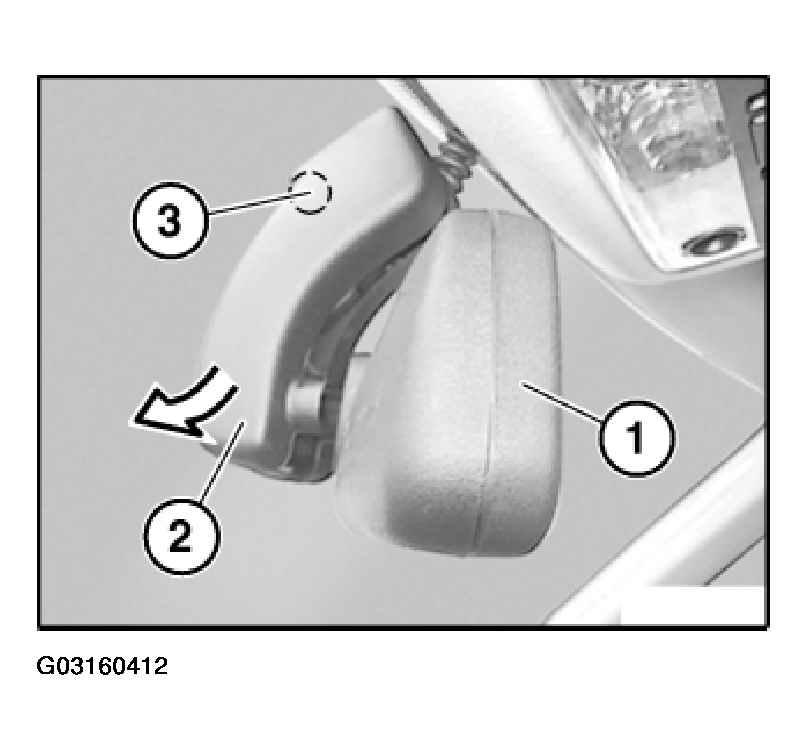

Twist mirror (1) at an angle towards front and right/top.

Swivel left end cap (2) off ball neck in direction of arrow; this detaches the engagement clip (3) from the metal foot.

Fig 2: Removing Mirror End Caps Versions (C) & (D)

G03160412

Courtesy of BMW OF NORTH AMERICA, INC.

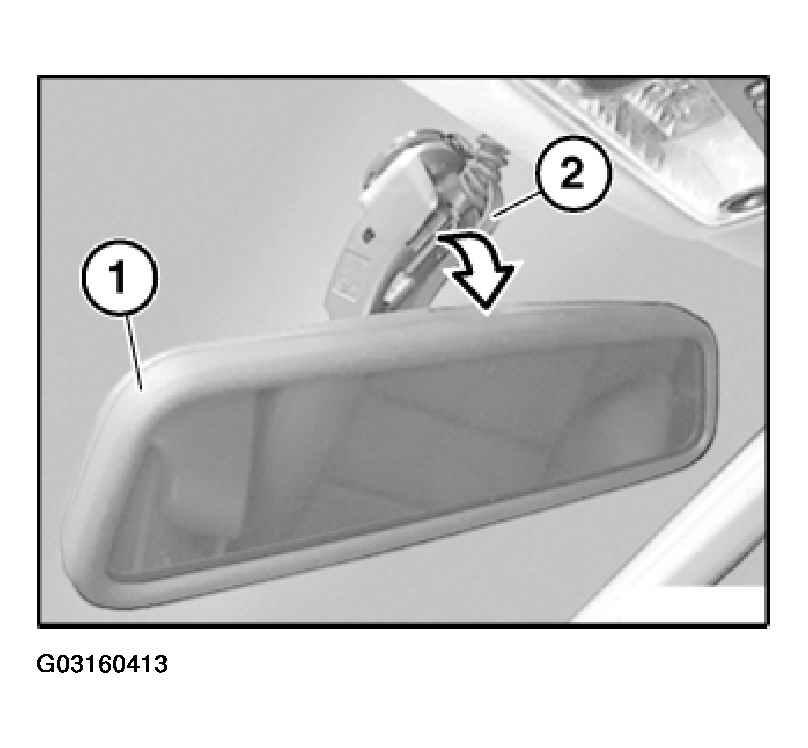

Twist mirror (1) at an angle towards front and left/top.

Swivel right end cap (2) off ball neck in direction of arrow; this detaches the engagement clip from the metal foot.

Fig 3: Detaching Engagement Clip From Metal Foot Versions (C) & (D)

G03160413

Courtesy of BMW OF NORTH AMERICA, INC.

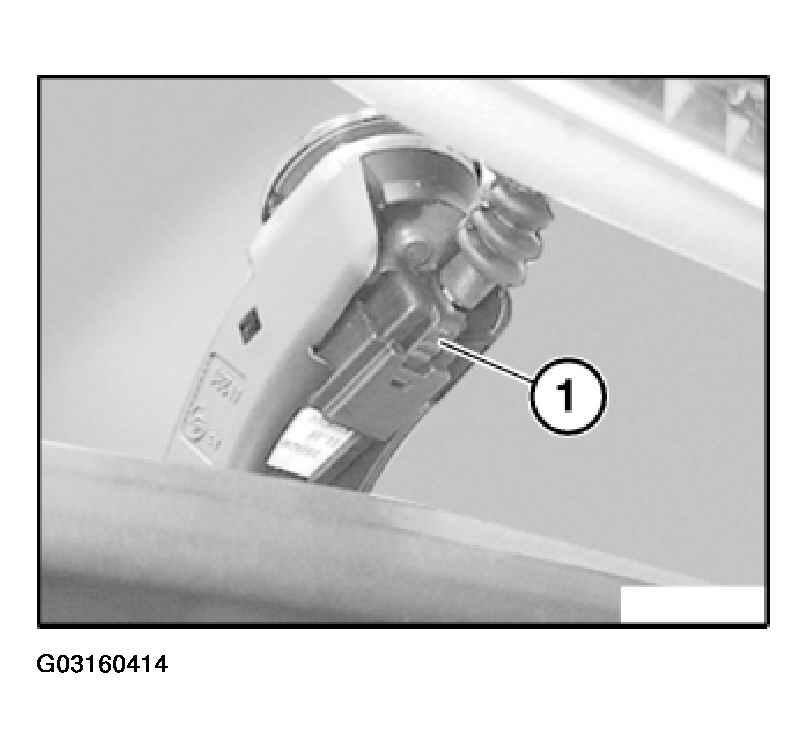

Disconnect plug connection (1).

Fig 4: Disconnecting Plug Connection Versions (C) & (D)

G03160414

Courtesy of BMW OF NORTH AMERICA, INC.

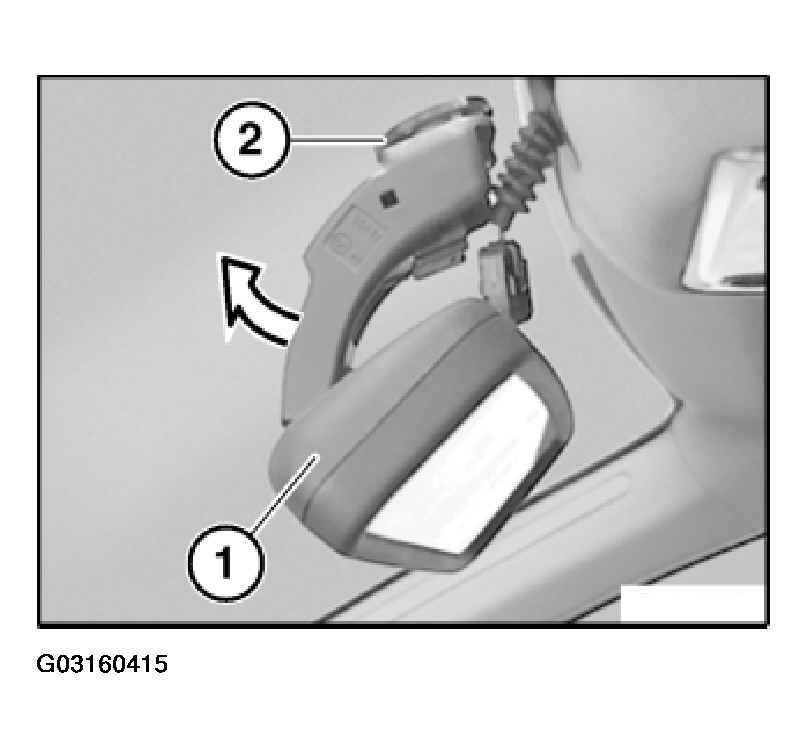

IMPORTANT: Do not remove interior mirror (1) towards rear or by twisting (risk of damage).

Snap out interior mirror (1) from mirror mount (2) towards front by striking with ball of thumb and remove.

Fig 5: Removing Interior Mirror Versions (C) & (D)

G03160415

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

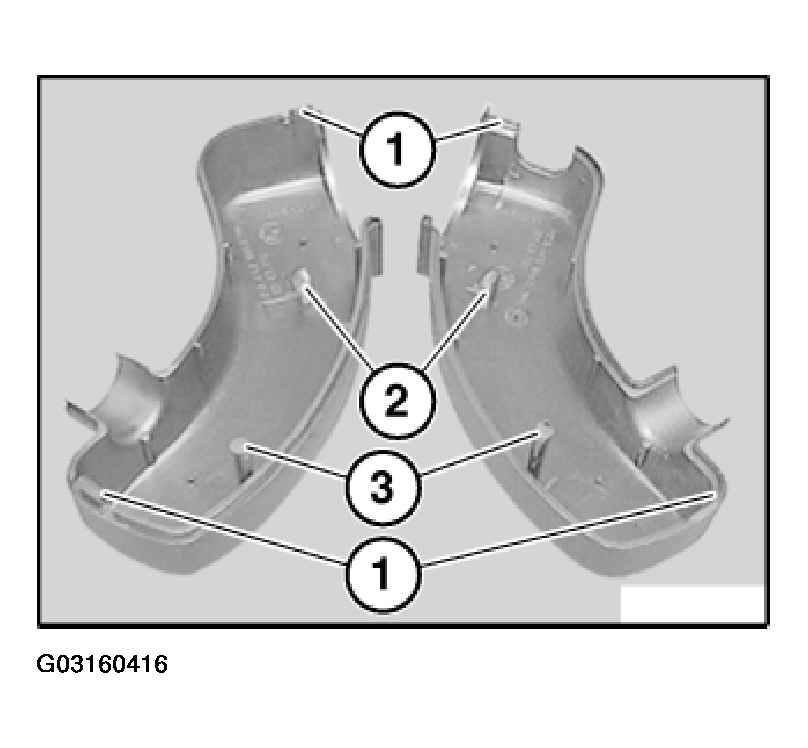

Clips (1) and retaining hooks (2) of end caps (3) must not be damaged, replace if necessary.

Fig 6: Use Care Not To Damage Clips And Retaining Hooks Versions (C) & (D)

G03160416

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

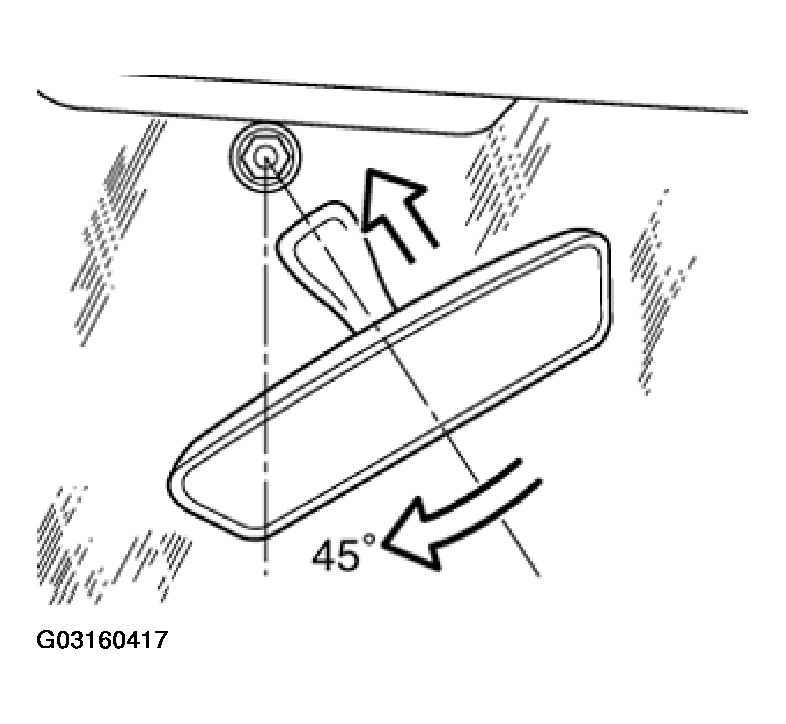

Twist mirror foot by approx. 45° and fit to mirror mount.
Turn mirror foot until it engages on mirror base.

Fig 7: Installing Interior Mirror Versions (C) & (D)
Courtesy of BMW OF NORTH AMERICA, INC.
