Removal Of Version (B):

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Version with automatic dim action (electro-chrome technology) for interior mirror and/or remote control:

Lever out plug cover and disconnect plug connection.

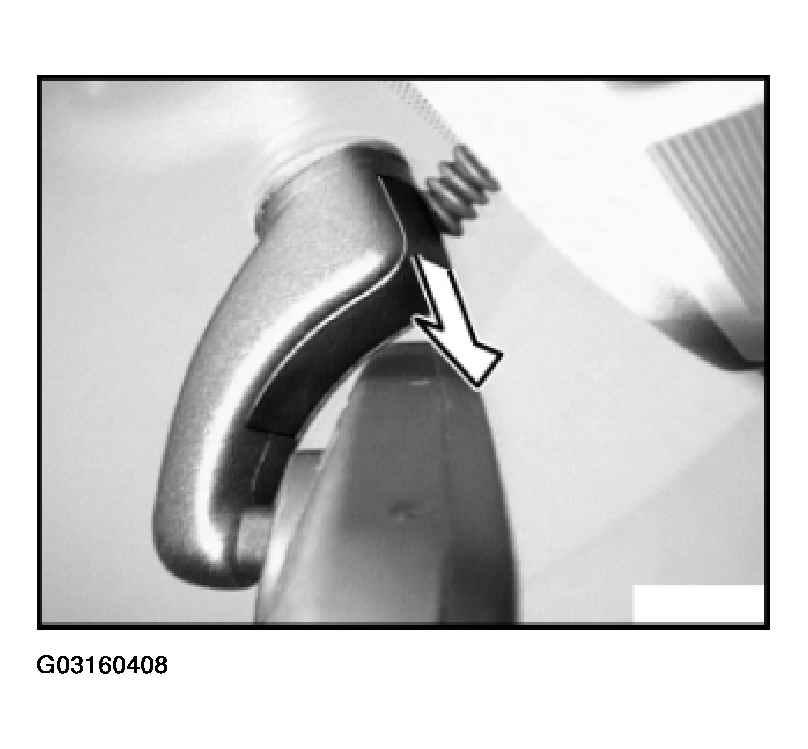

Fig 1: Removing Cover & Plug Connection Version (B)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not remove interior mirror (1) towards rear or by twisting (risk of damage).

Snap out interior mirror (1) from mirror mount towards front by striking with ball of thumb and remove.

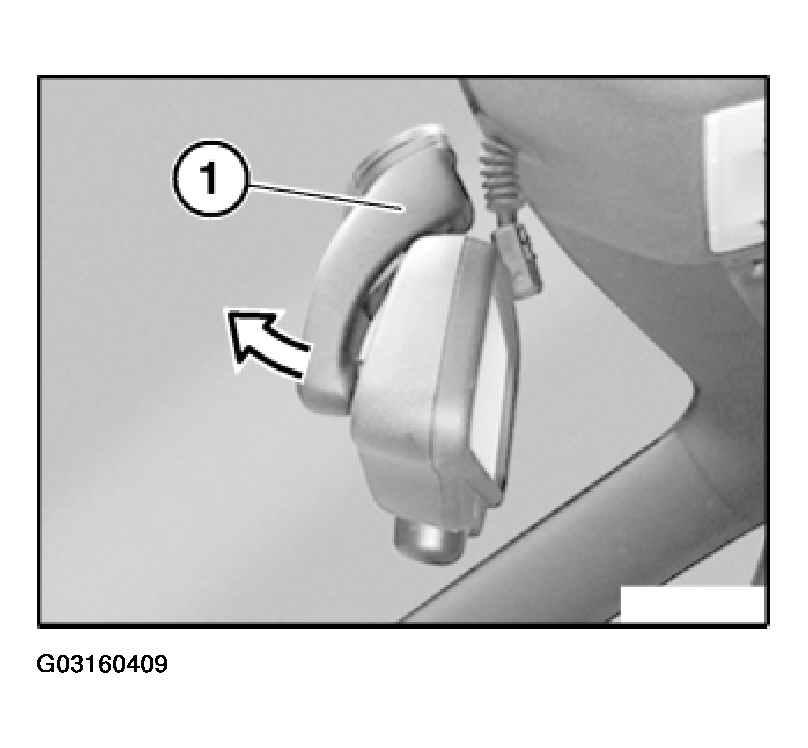

Fig 2: Removing Interior Mirror Version (B)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

Twist mirror foot by approx. 45° and fit to mirror mount.
Turn mirror foot until it engages on mirror base.

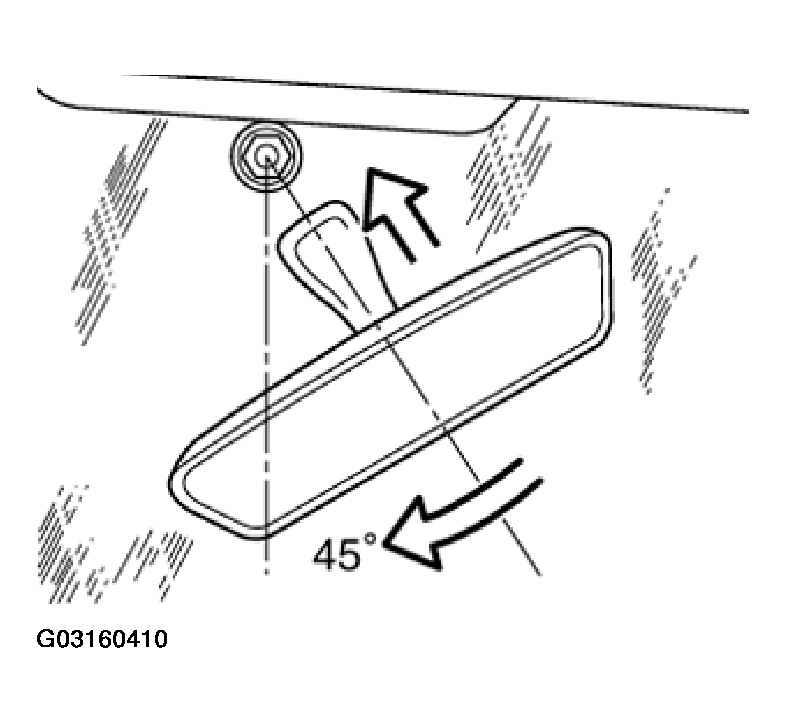

Fig 3: Installing Interior Mirror Version (B)
Courtesy of BMW OF NORTH AMERICA, INC.

Only replace with version with remote control for central locking:

Installation :

Initialize all transmitters (ignition keys), refer to Owner's Handbook.
