51 21 170 Removing and installing or replacing outside handle from left or right front door

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Lift out sealing plug.

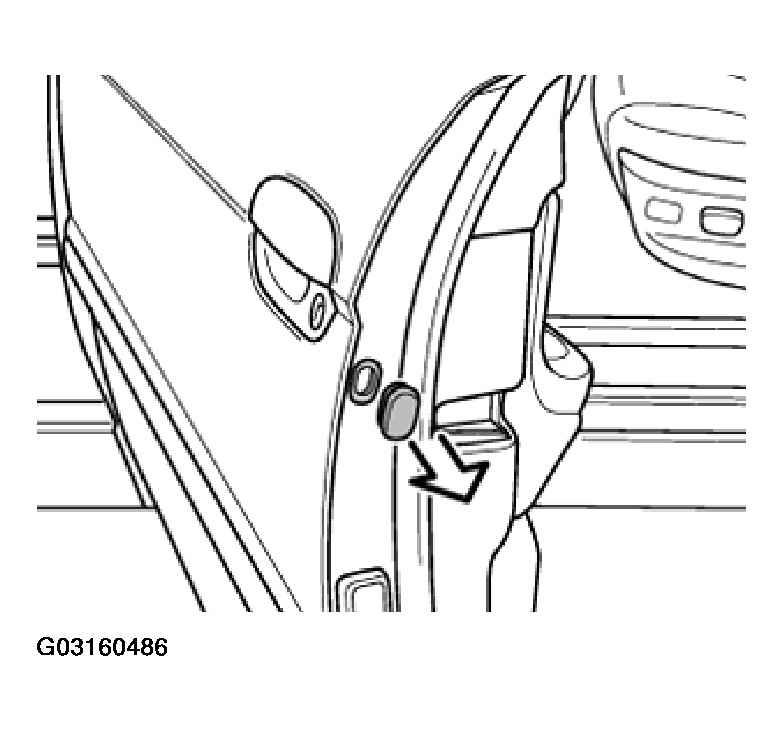

Fig 1: Removing Seal Plugs

G03160486

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit new seal plugs.

Insert special tool 51 3 203 and lever retaining tab (1) on locking plate (2) over the retaining lug (3).

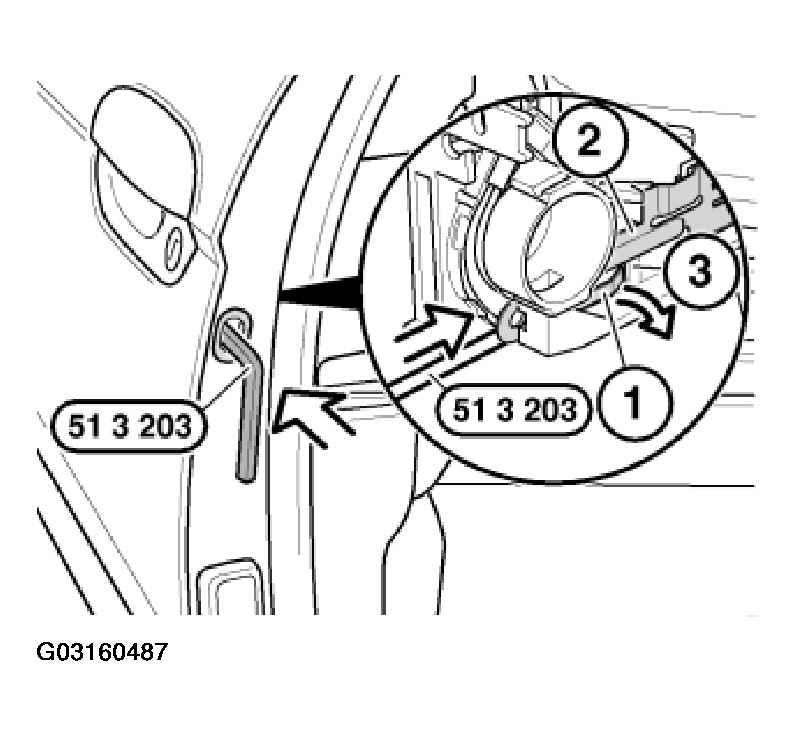

Fig 2: Levering Retaining Tab (1) On Locking Plate (2) Over The Retaining Lug (3)

G03160487

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 51 3 201 in sliding bore on locking plate (2) and press this forwards with raised retaining tab (1).

Remove both special tools.

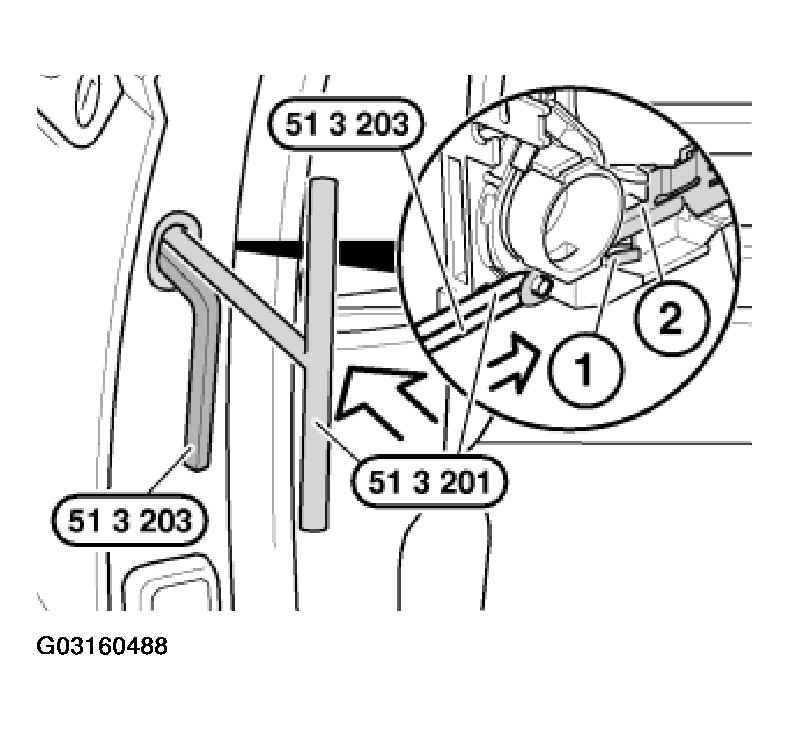

Fig 3: Inserting Special Tool 51 3 201 In Sliding Bore On Locking Plate

G03160488

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out lower edge of outside handle and pull obliquely downwards to remove.

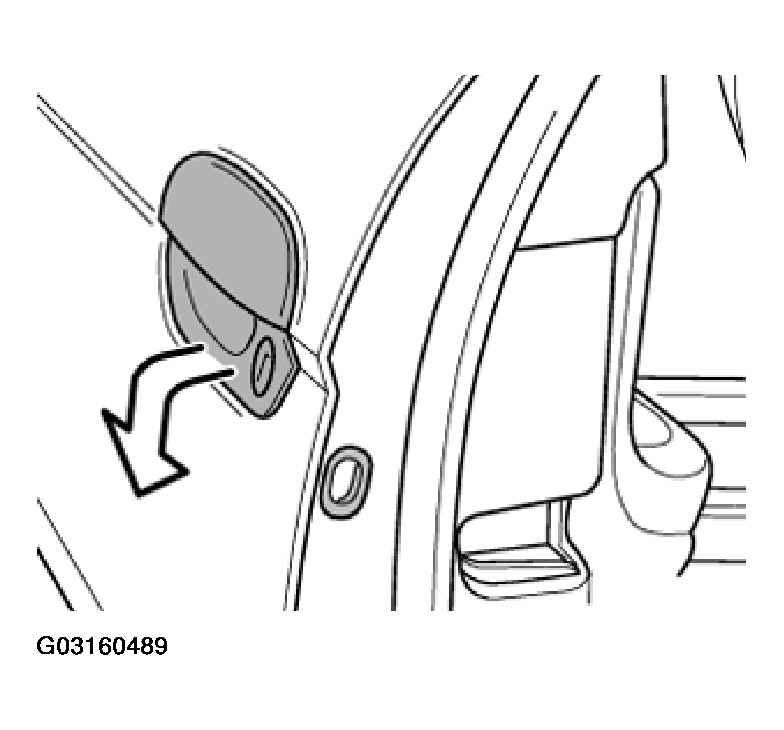

Fig 4: Removing Outside Handle

G03160489

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert special tool 51 3 201 in sliding bore (1) of locking plate (2) and pull it backwards.

Check function.

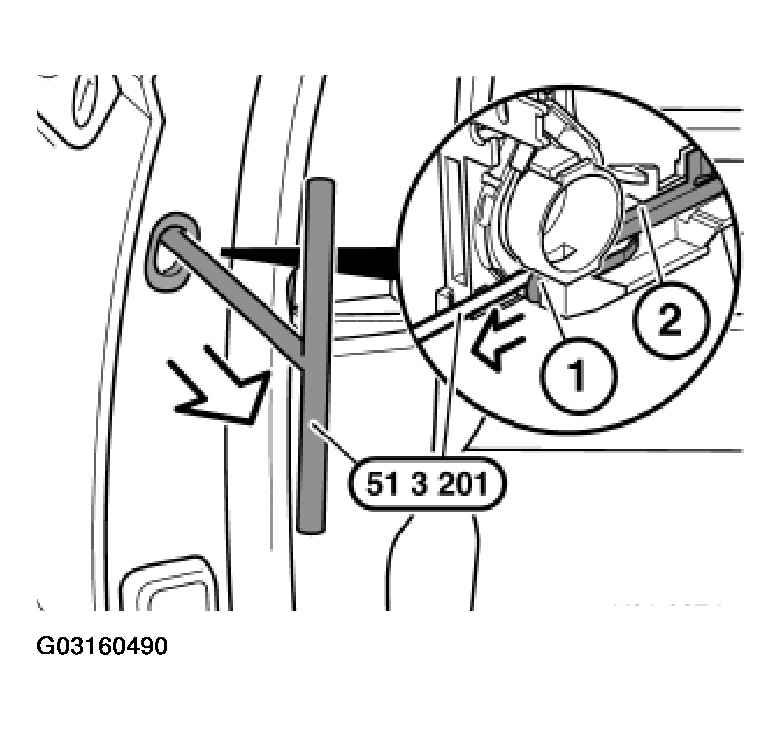

Fig 5: Using Special Tool In Sliding Bore Install Locking Plate

G03160490

Courtesy of BMW OF NORTH AMERICA, INC.
