51 47 101 Removing and installing/replacing luggage compartment floor trim panel

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.

Take out luggage compartment floor trim panel (1).

Only replace:

Unhook tensioning belts (2).

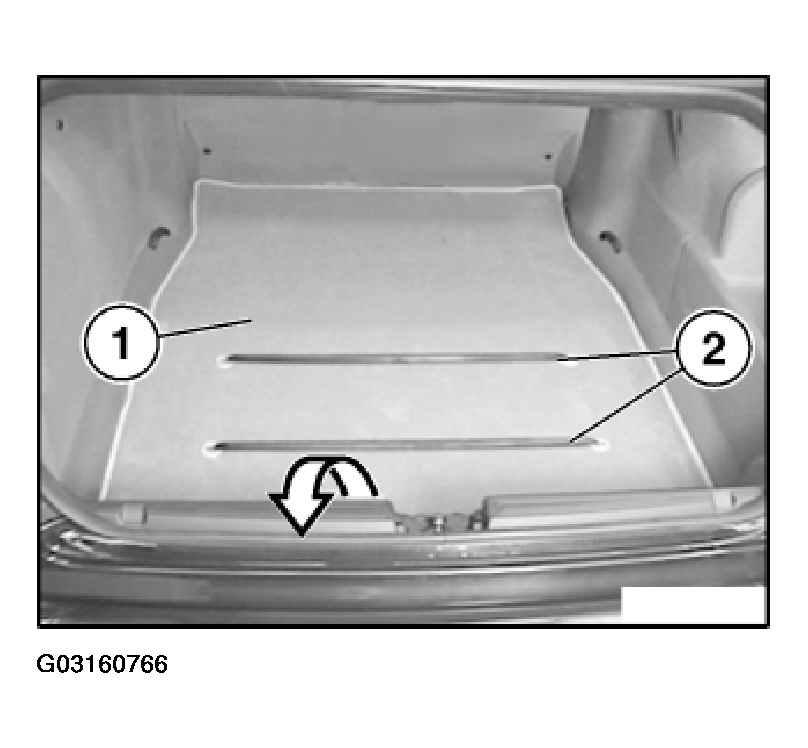

Fig 1: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
