36 10 715 Checking rim for face and radial runout

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel.

Check front or back wheel for face and radial runout.

Pull tire off rim.

Remove fitted balancing weights.

Remove dirt from rim well and rim flange.

Mount disk wheel in balancing machine.

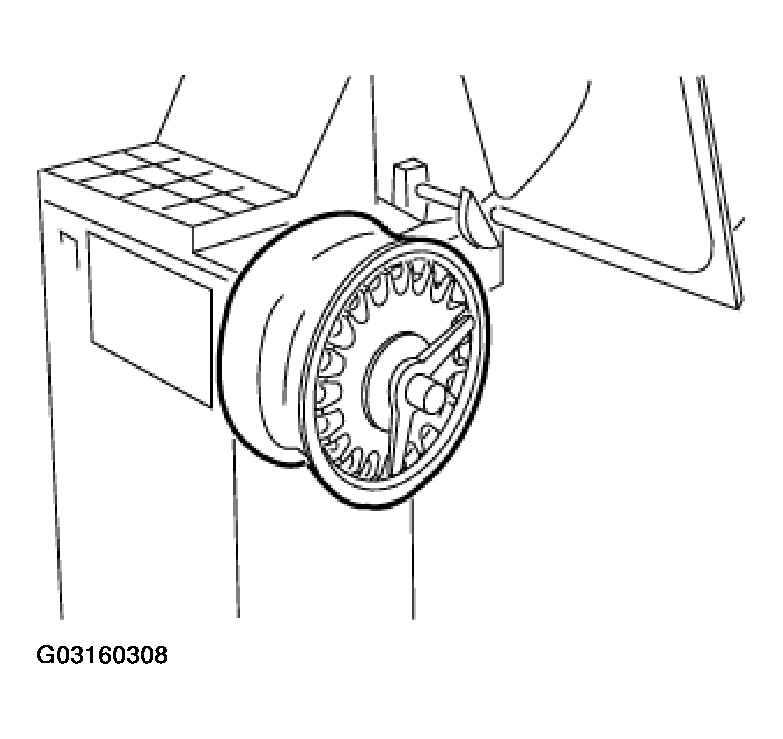

Fig 1: Mounting Disk Wheel In Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable wheel centre supplied with corresponding balancing machine.

Basic Flange
Centre
Type Flange
Clamping Nut

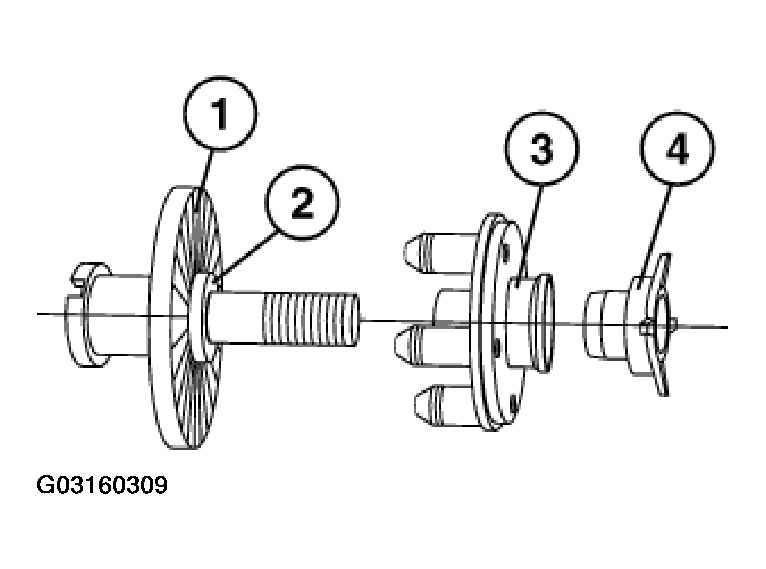

Fig 2: Identifying Basic Centering Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Place dial gauge sensor on rim shoulder.

Turn wheel by hand and measure maximum radial runout,

refer to appropriate wheel/tire type under WHEEL in TECHNICAL DATA.

Carry out measurement on both rim shoulder sides.

NOTE: Dial gauge must be vertical to rim shoulder.

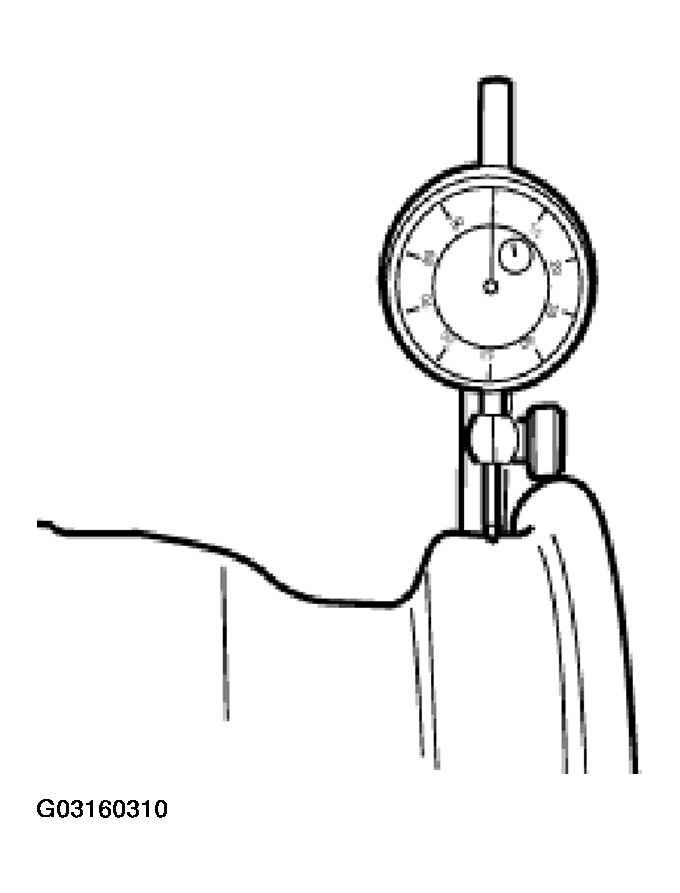

Fig 3: Measuring Radial Runout Of Rim

Courtesy of BMW OF NORTH AMERICA, INC.

Position sensor on rim flange.

Turn wheel by hand and measure maximum lateral runout,

refer to appropriate wheel/tire type under WHEEL in TECHNICAL DATA.

Carry out measurement on both rim flanges.

NOTE: Dial gauge must be vertical to rim flange.

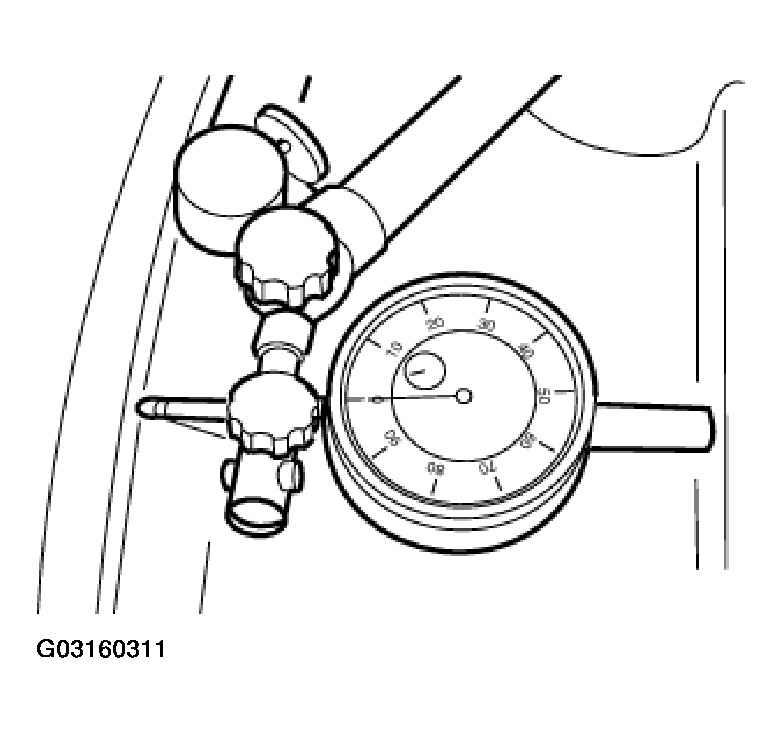

Fig 4: Measuring Lateral Runout Of Rim

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid transformation errors during subsequent installation tasks.
