36 11 527 Removing and installing/replacing rear receiving antenna for RDC
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Remove wheel,
refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
Remove wheel arch trim.

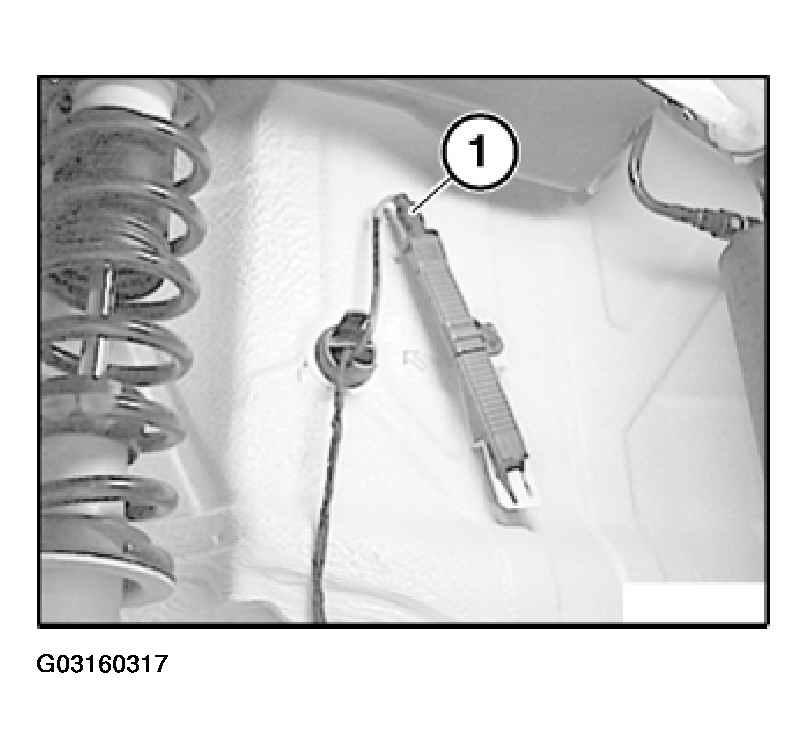

Unfasten plug connection (1) and disconnect.

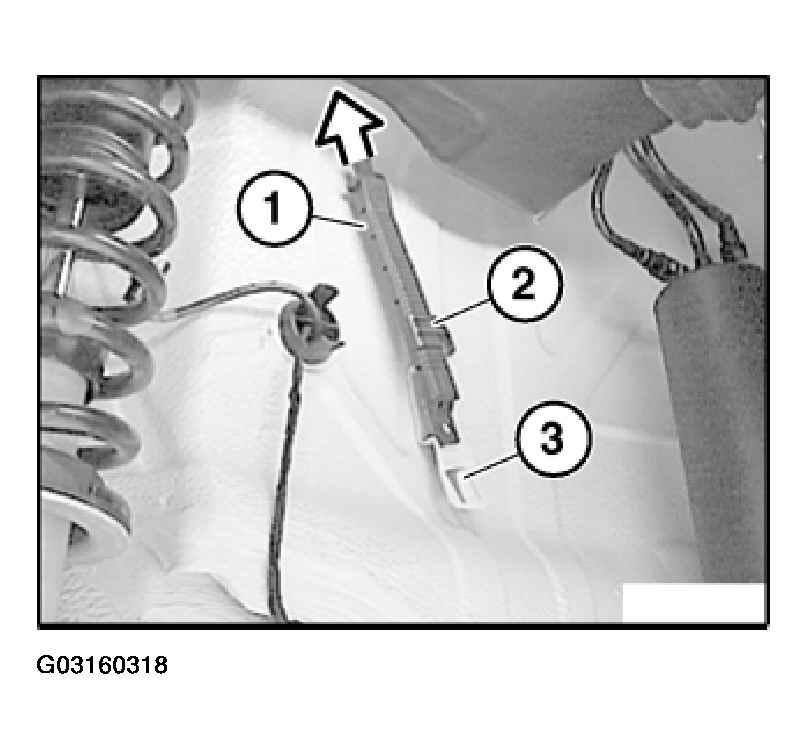

Release hexagon nut (2) and remove reception antenna (1) from fixture (3).
