36 11 522 Removing and installing/replacing front receiving antenna for RDC

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Remove wheel,

refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL

Remove wheel arch trim.

Unfasten plug connection (1) and disconnect.

Release hexagon nuts (2/3) and remove reception antenna.

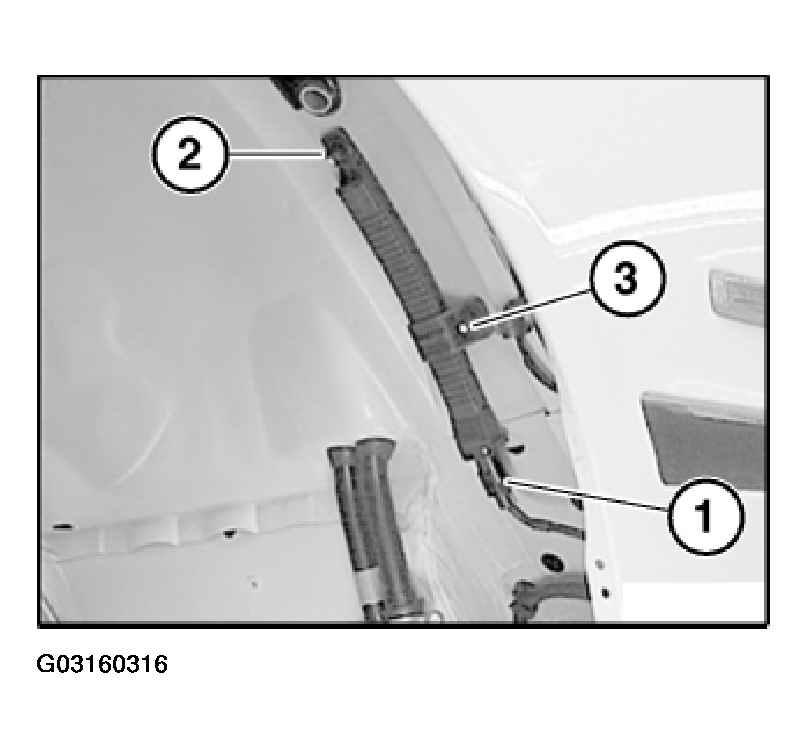

Fig 1: Removing Front Receiving Antenna For RDC

Courtesy of BMW OF NORTH AMERICA, INC.
