17 21 500 Flushing oil cooler with lines (automatic transmission): Procedure:

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Carry out the work steps listed when:

Fitting a new or replacement transmission

Flushing can only be carried out with the automatic transmission removed.

Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Connect the connecting line 17 2 019 from the oil collection unit with the quick-release coupling.

Connect drain line 17 2 018 using quick-release coupling.

Feed open end of drain line into a suitable collection container.

Using oil collection unit, flush approx. 1 liter of transmission fluid (refer to OPERATING FLUIDS - AUTOMATIC TRANSMISSION ) through oil lines and oil cooler.

Reposition quick-release couplings.

Flush oil lines/oil cooler in opposite direction with approx. 1 liter of transmission fluid (refer to OPERATING FLUIDS - AUTOMATIC TRANSMISSION ).

Disconnect quick-release couplings, remove adapters.

NOTE: Dispose of flushing oil properly; do not under any circumstances reuse it.

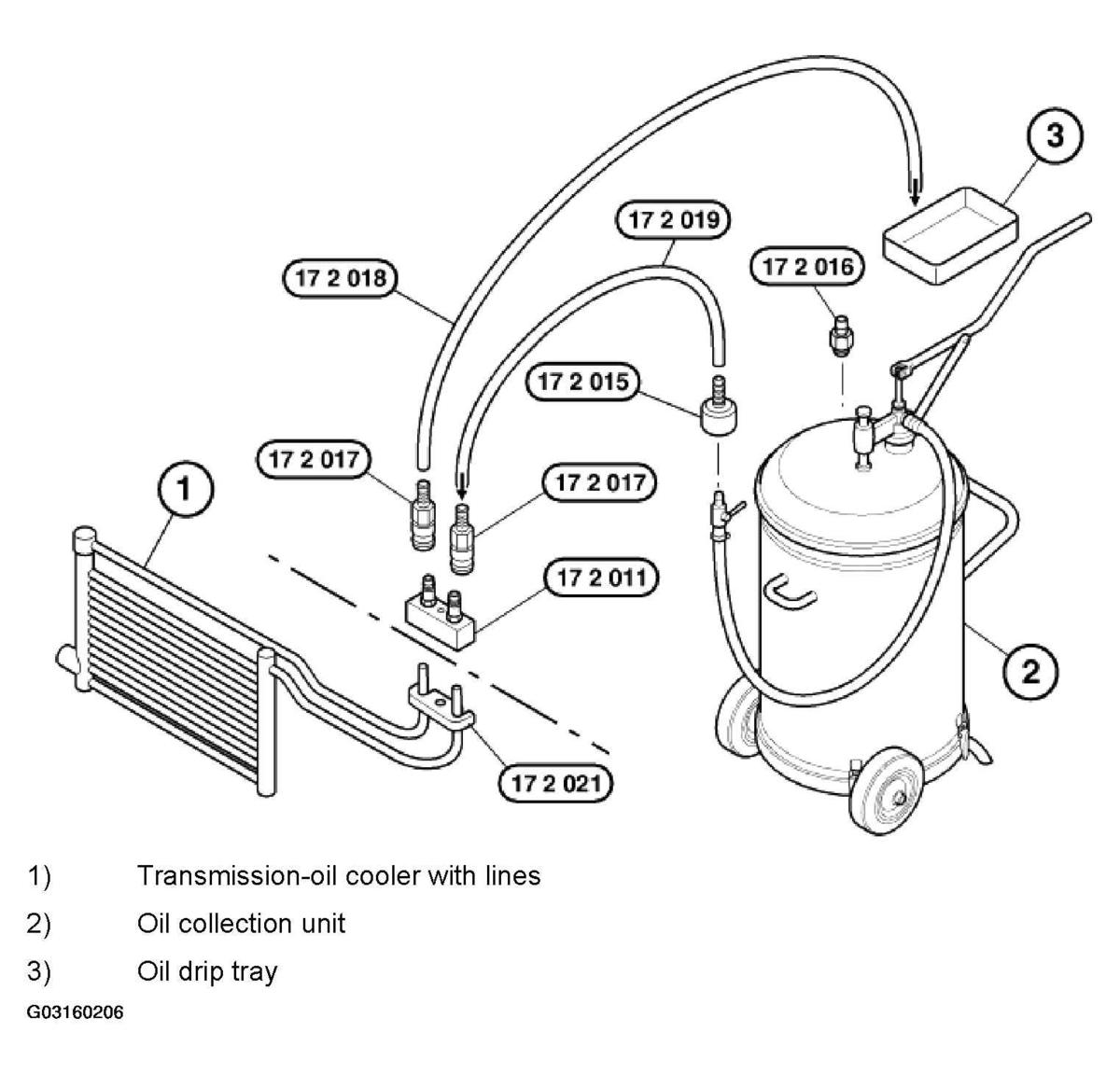

Arrangement Of Flushing Device For Transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z

Fig 1: Identifying Arrangement Of Flushing Device For Transmissions (A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z)

Courtesy of BMW OF NORTH AMERICA, INC.

17 2 011 Adapter for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

17 2 021 Mounting plate for adapter 17 2 011 for transmissions A5S 325Z, GA6HP26Z

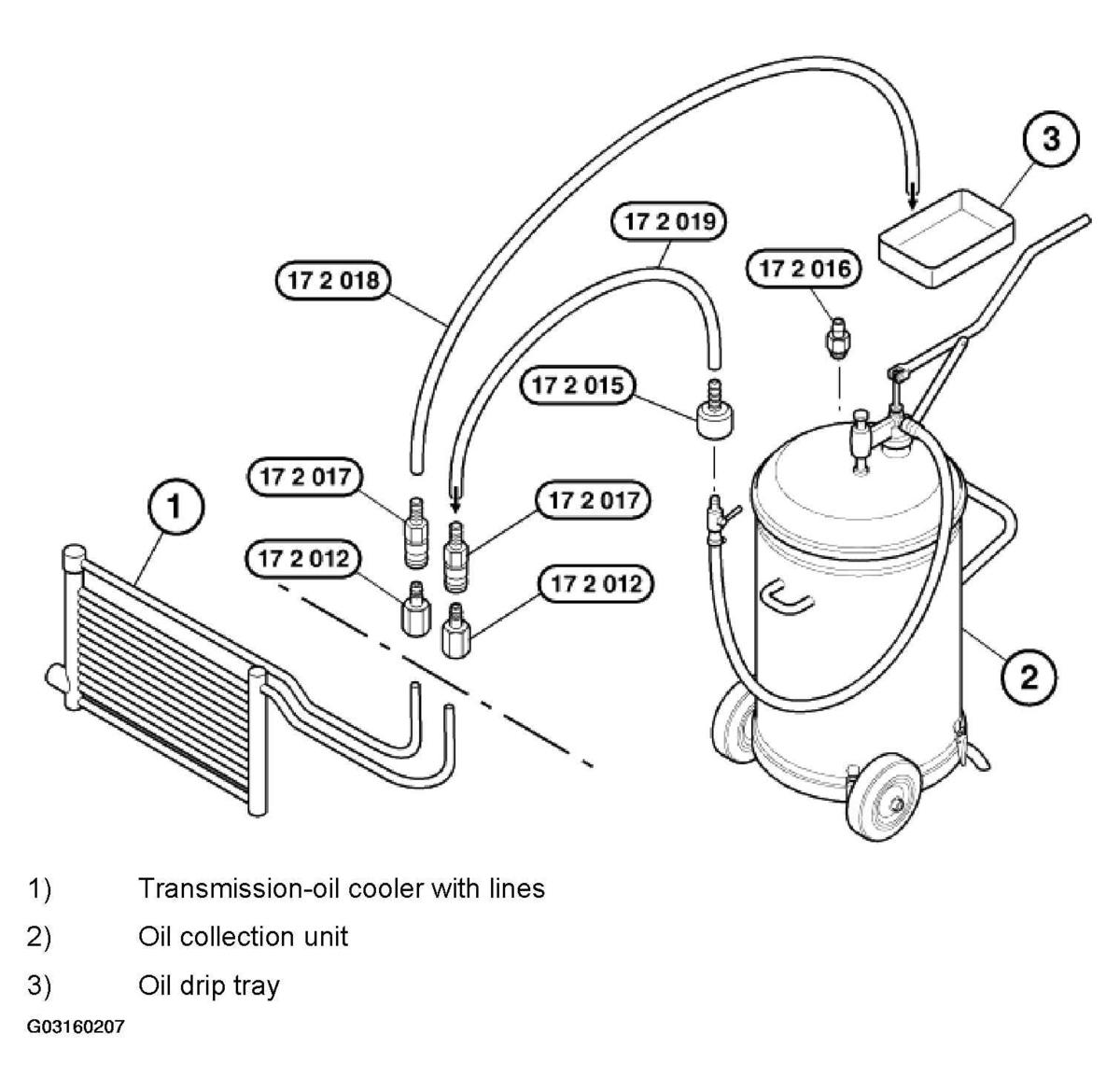

Arrangement Of Flushing Device For Transmission A4S 310R

Fig 2: Identifying Arrangement Of Flushing Device For Transmission (A4S 310R)

Courtesy of BMW OF NORTH AMERICA, INC.

17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

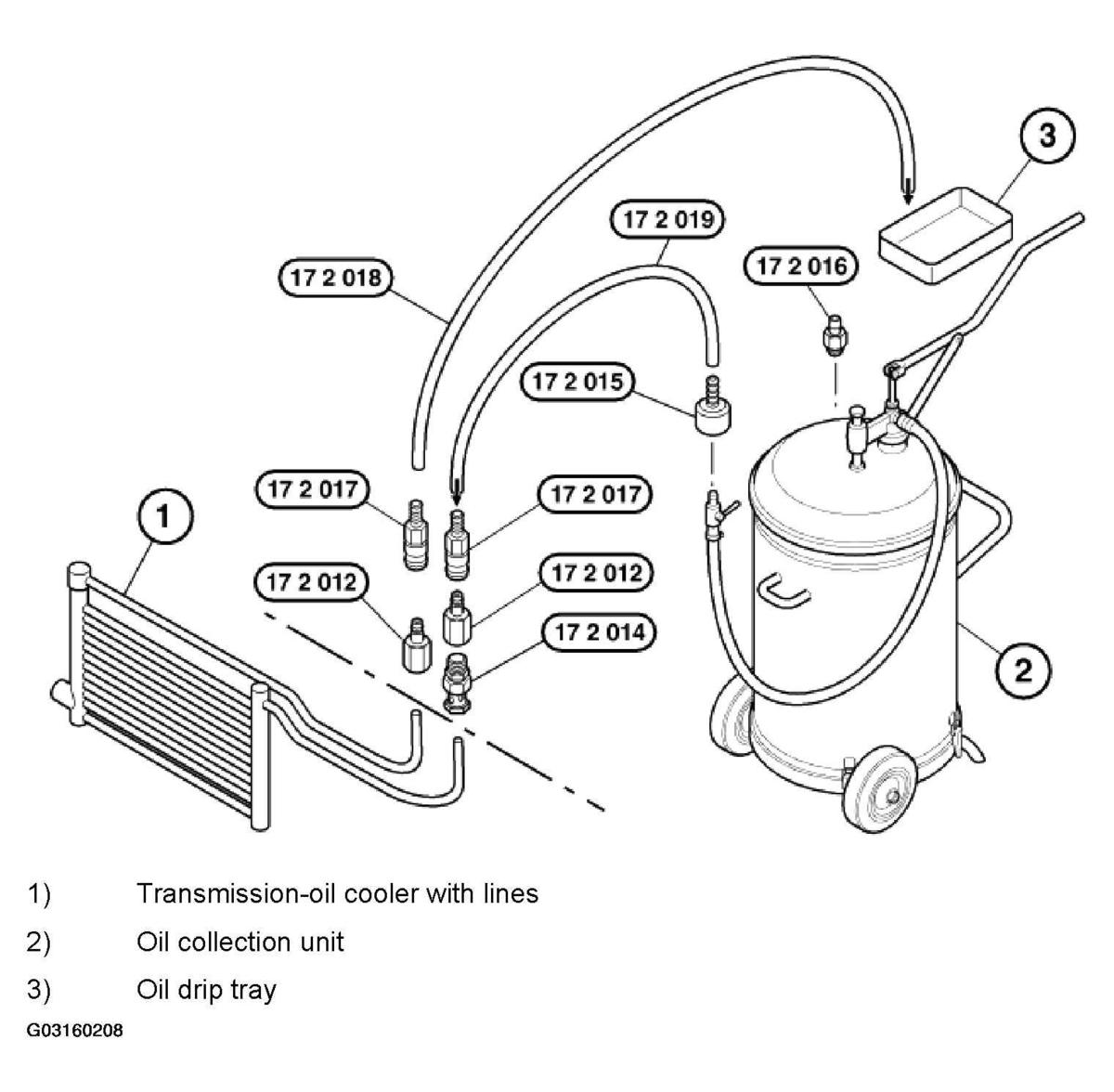

Arrangement Of Flushing Device For Transmission A4S 300J

Fig 3: Identifying Arrangement Of Flushing Device For Transmission (A4S 300J)

Courtesy of BMW OF NORTH AMERICA, INC.

17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)

17 2 014 Banjo bolt for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

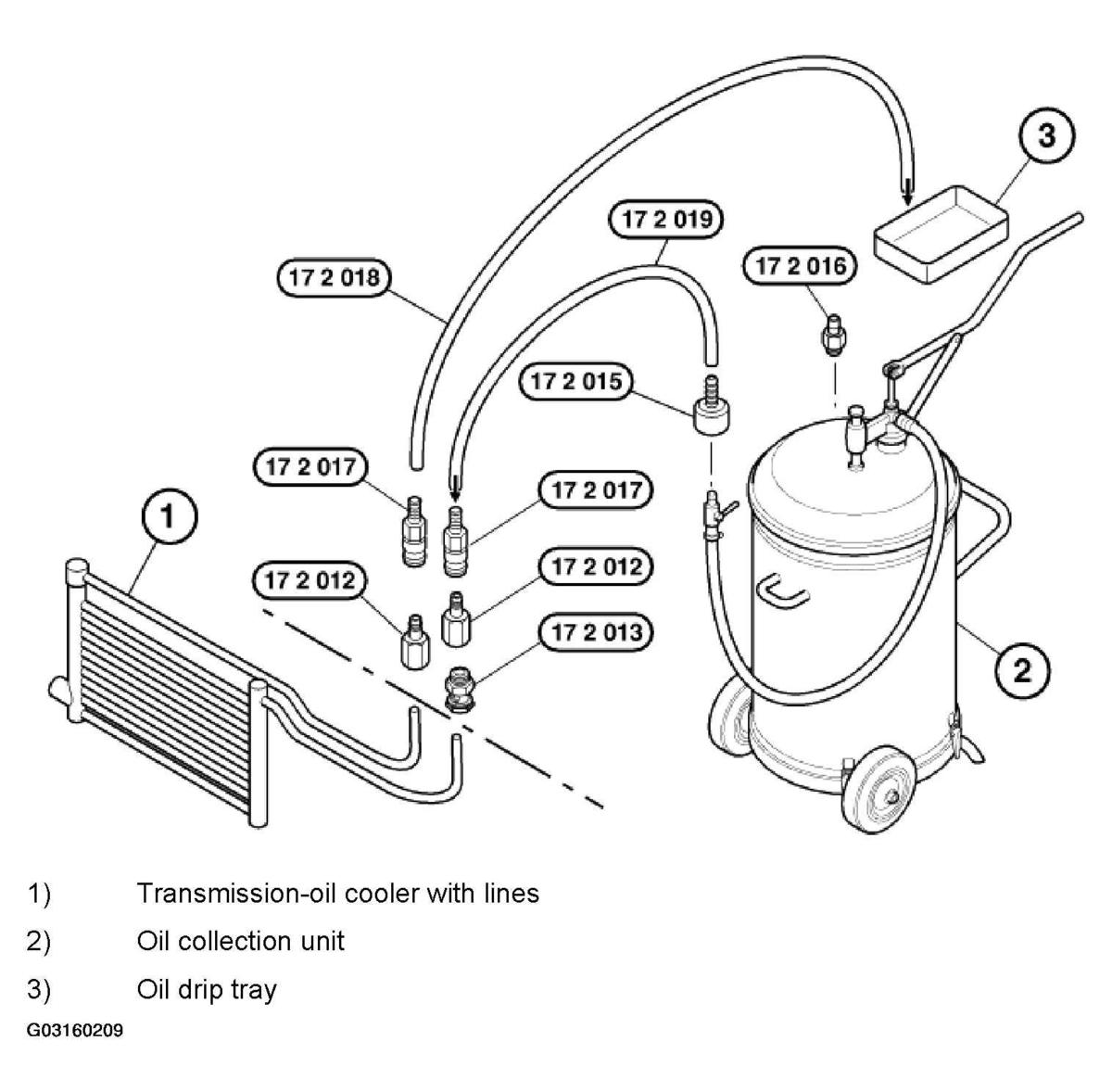

Arrangement Of Flushing Device For Transmission A5S 440Z

Fig 4: Identifying Arrangement Of Flushing Device For Transmission (A5S 440Z)

Courtesy of BMW OF NORTH AMERICA, INC.

17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)

17 2 013 Banjo bolt for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)
