Checking Pressure Drop In Cooling System:
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of scalding!
Only perform this work after engine has cooled down.
Only perform this work after engine has cooled down.

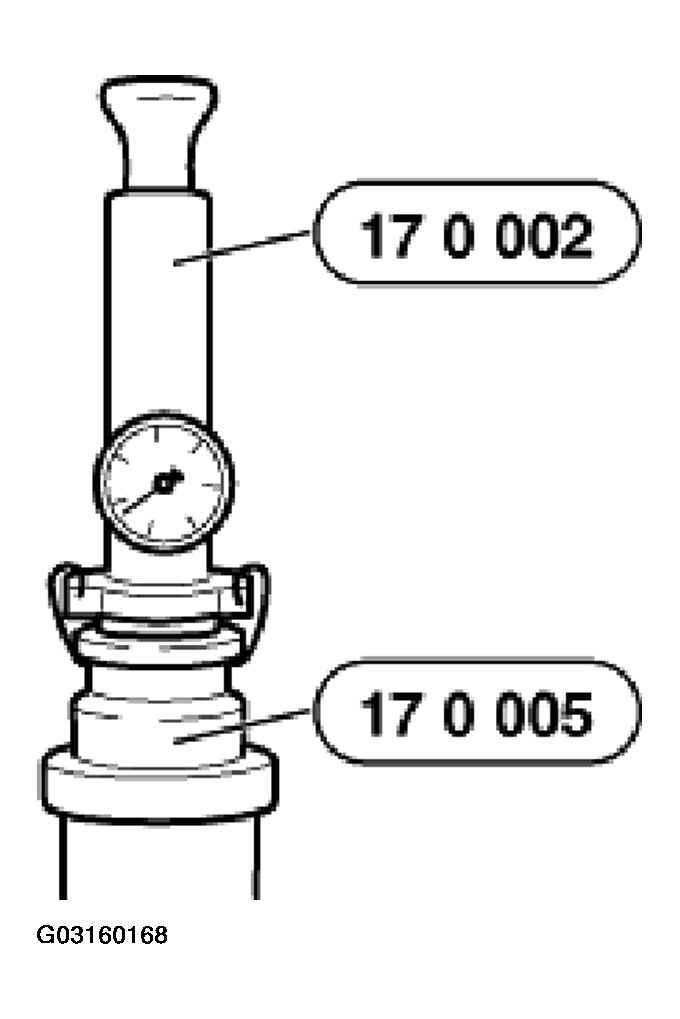

Remove cap on expansion tank. Attach special tool 17 0 002/17 0 005.
Build up gauge pressure of 1.5 bar, wait approx. 2 minutes.
Cooling system is impervious to leaks if pressure drop is max. 0.1 bar.
