13 63 590 Replacing fuel pump relay

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit. Switch off ignition.

Fold down right side trim in luggage compartment.

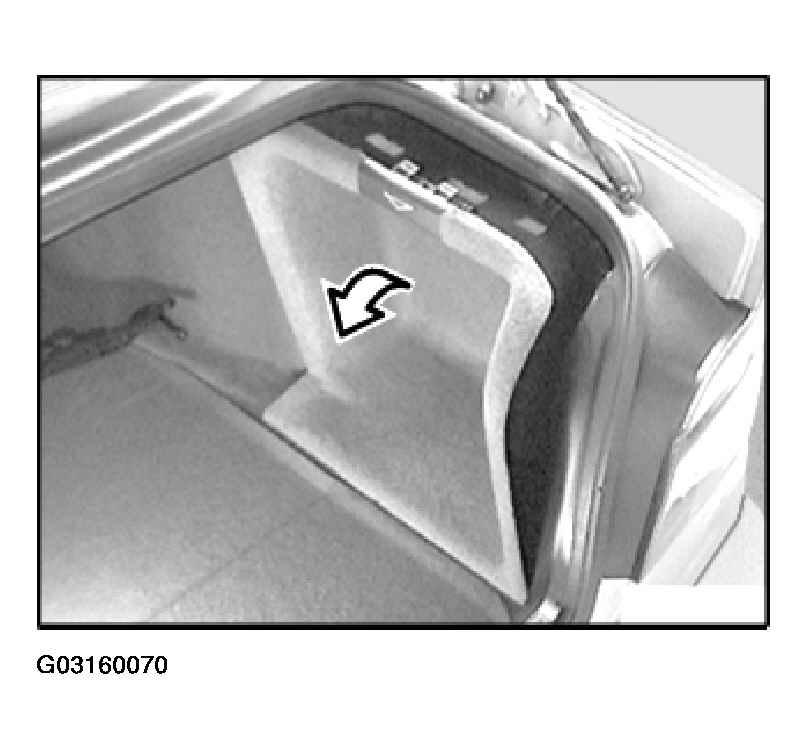

Fig 1: Folding Down Luggage Compartment Right Side Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Detach fuel pump relay (1).

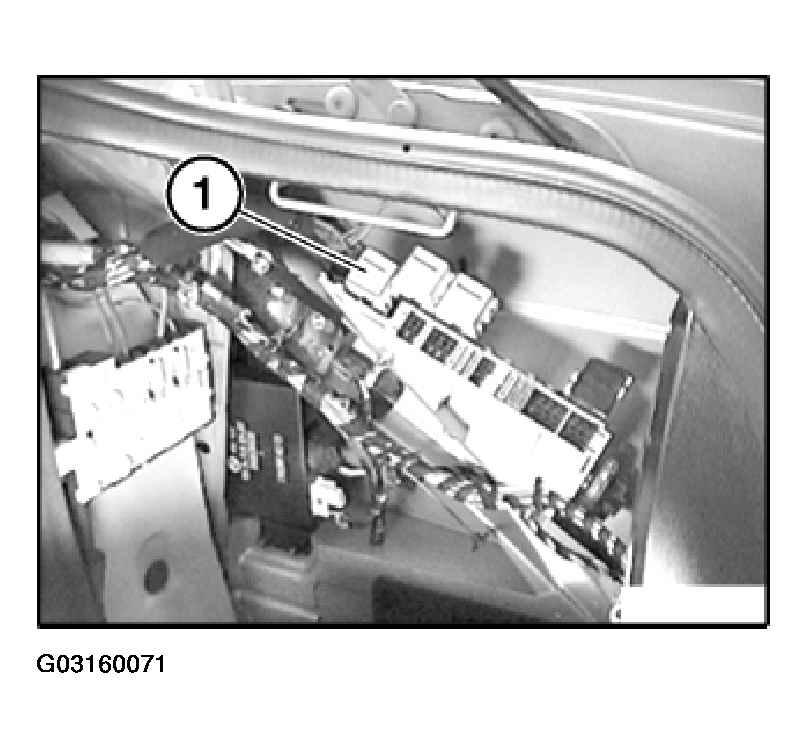

Fig 2: Detaching Fuel Pump Relay

Courtesy of BMW OF NORTH AMERICA, INC.

After removal of fuel pump relay and during engine starting sequence:

The Fuel Pump No Longer Operates
The Engine Does Not Start

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Now clear the fault memory.
