13 62 531 Replacing coolant temperature sensor (M52TU, M54)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Installation location:

Coolant temperature sensor (1) is fitted below intake air manifold in cylinder head of cylinder 6.

Remove intake air manifold, refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (M54) .

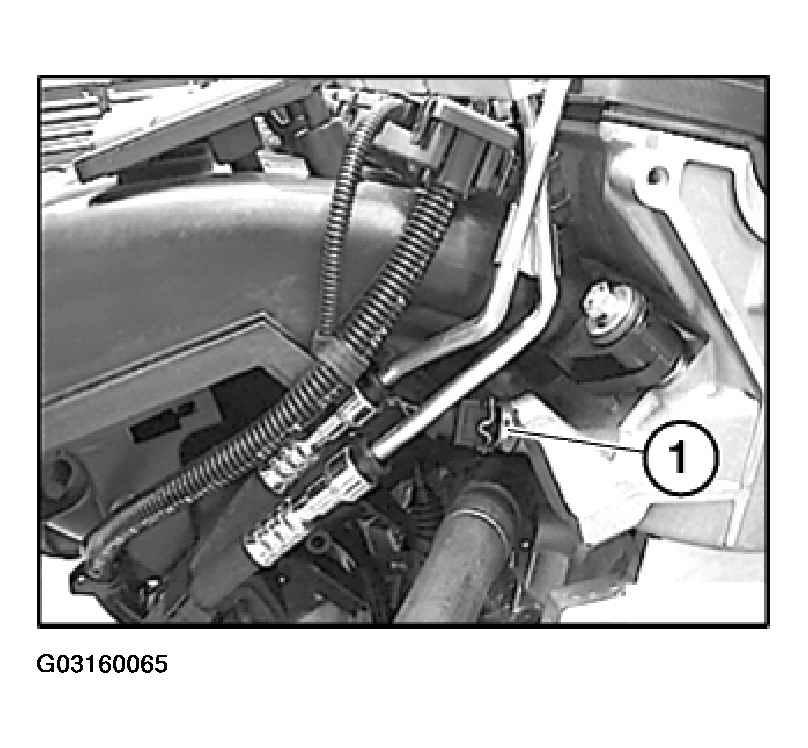

Fig 1: Locating Coolant Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unscrew temperature sensor.

Installation:

Tightening torque, refer to 13 62 2AZ in FUEL SYSTEM - TIGHTENING TORQUES .

Check coolant level, top up coolant if necessary.

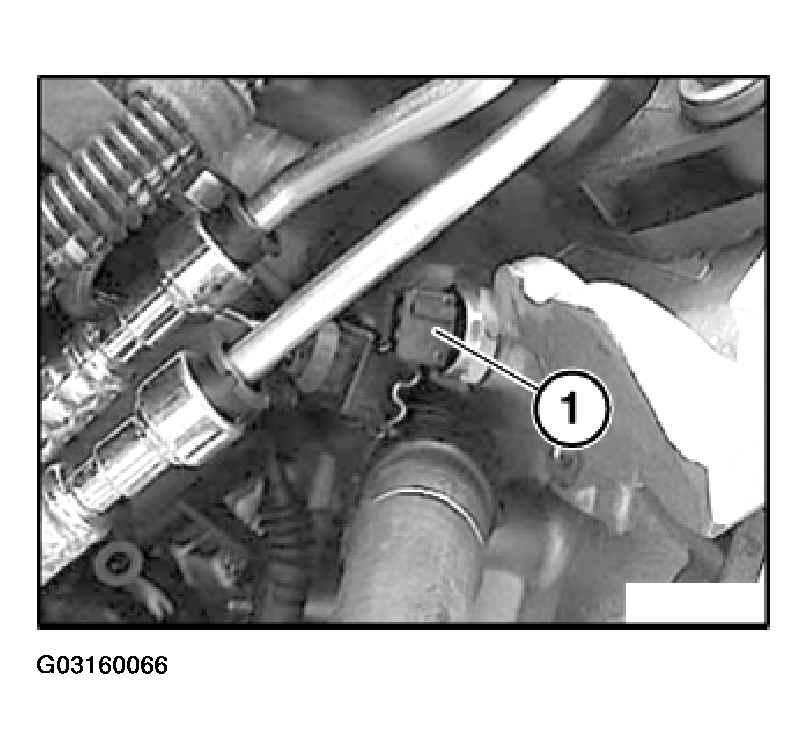

Fig 2: Removing Coolant Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read out fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Then clear fault memory.
