13 31 029 Checking fuel pump delivery pressure (M54): Procedure

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

CAUTION: The fuel in the fuel lines is under pressure (approx. 3 bar)! Catch and dispose of escaping fuel.

Remove cover from fuel injectors.

Remove dust cap (1) from measuring valve on fuel rail.

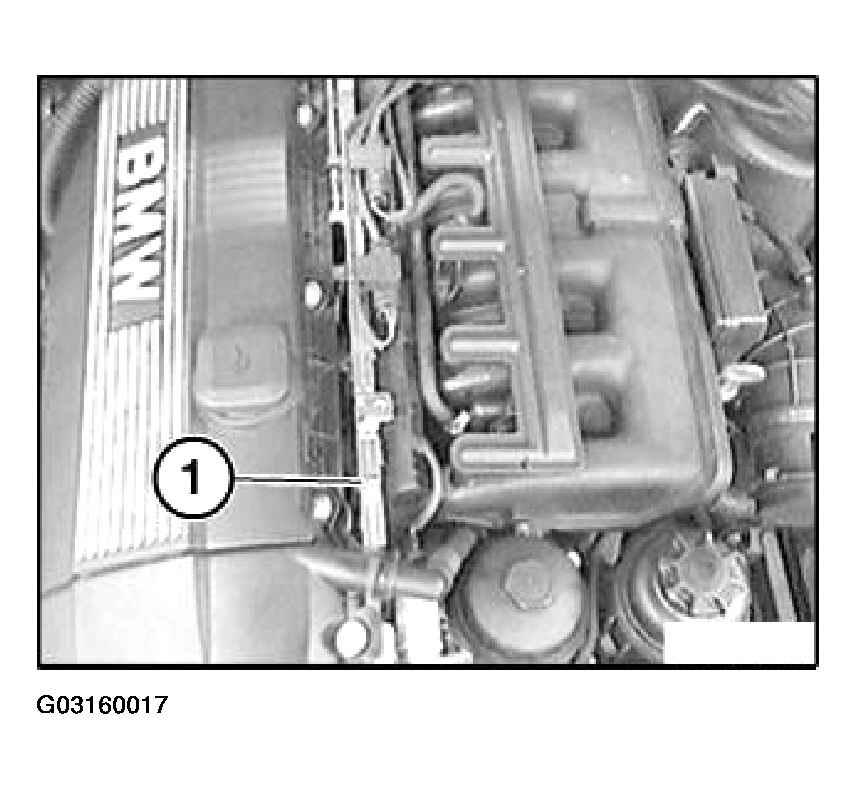

Fig 1: Removing Dust Cap From Measuring Valve On Fuel Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special took kit 13 5 220 (consisting of 13 5 221 and 13 5 222).

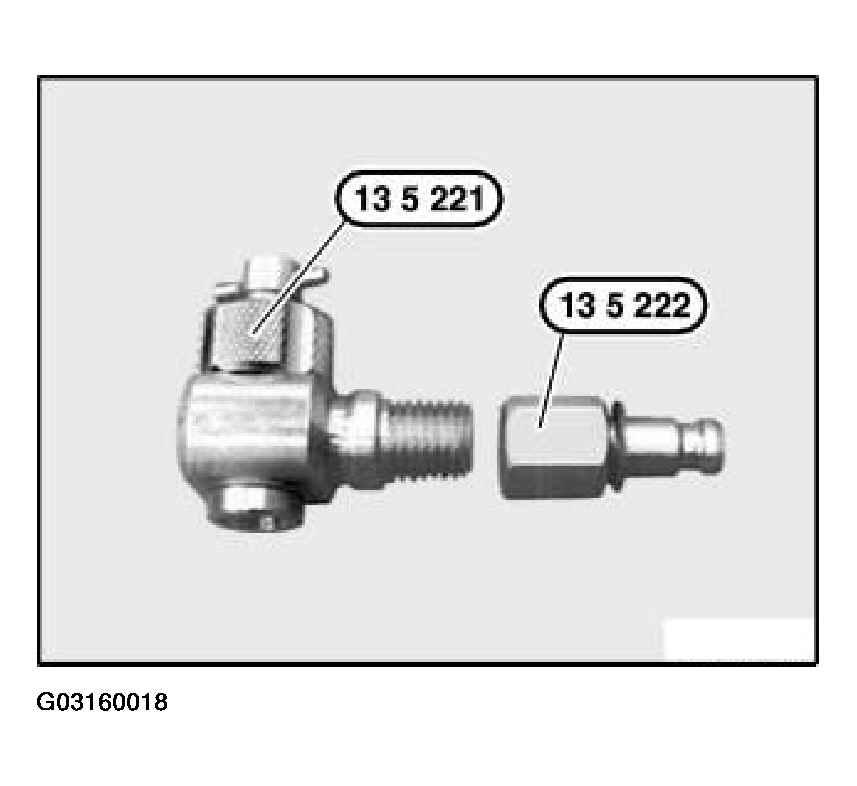

Fig 2: Preparing Fuel Pressure Testing Special Tool Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew check valve (1) on special tool kit 13 5 220.

Fit special tool kit 13 5 220 on measuring valve and tighten knurled nut until hand-tight.

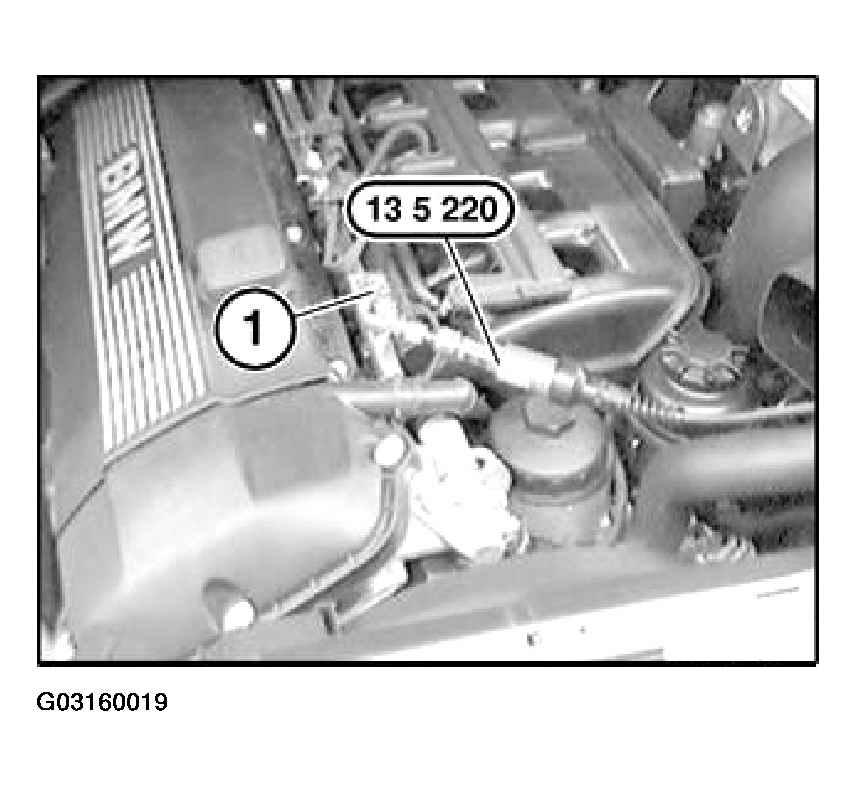

Fig 3: Fuel Pressure Testing Special Tool Kit Installed On Fuel Line

Courtesy of BMW OF NORTH AMERICA, INC.

Start engine.

Screw in check valve (1) until a pressure reading is indicated on DIS Tester.

CAUTION: Do not under any circumstances screw in the check valve up to the mechanical stop. This could damage the valve in the pressure regulator housing.

Measuring Fuel Pressure:

Connect Pressure Sensor To DIS Tester
Start Engine
Select Measurement
Multimeter Function Appears
Select Pressure Test
Read Off Fuel Pressure

Compare actual value of test pressure with specified value.

Switch off engine.

Checking Fuel Pump:

Detach fuel pump relay.

NOTE: Check whether fuel pump no longer starts up during engine starting procedure (engine fails to start).

Connect special tool 61 3 050 to terminal (87) and terminal (30).

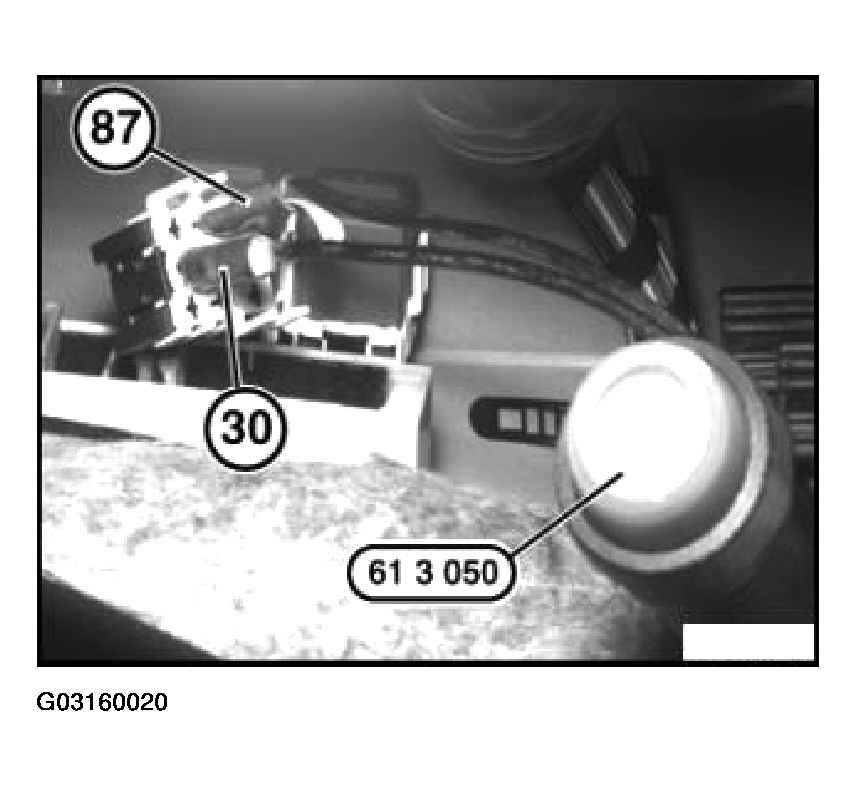

Fig 4: Connecting Special Tool To Fuel Pump Relay Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Press button and read off fuel pump delivery pressure on DIS Tester.

Compare actual value with specified value of delivery pressure.

Keep special tool 13 3 010 ready for further tests.

Further tests are described in the section "Fuel pressure check".

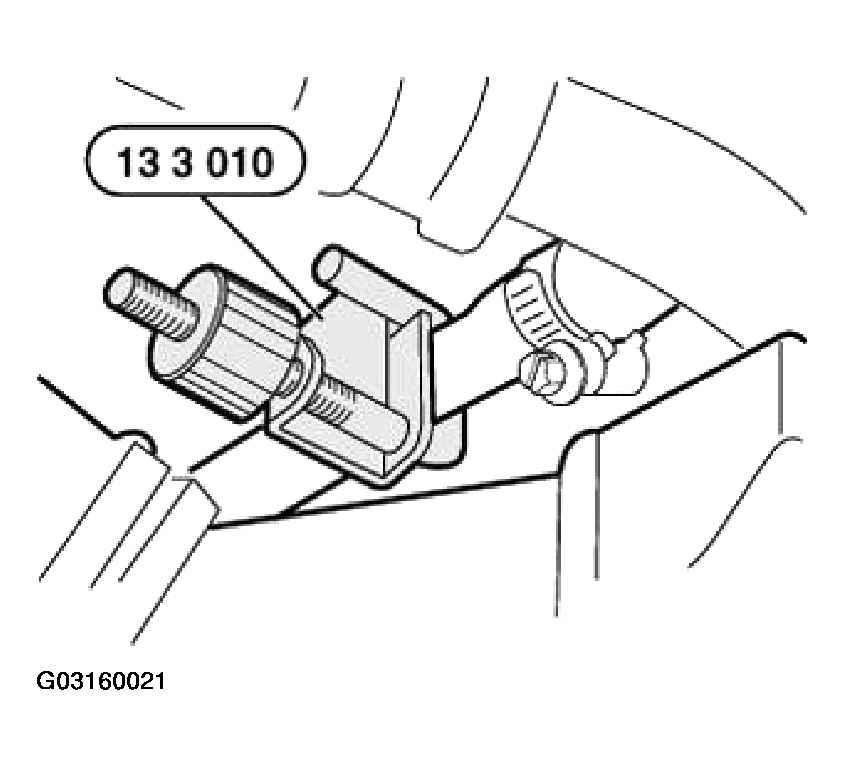

Fig 5: Identifying Placement Of Special Tool 13 3 010

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Then clear fault memory.
