12 61 285 Replacing oil level sensor
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Switch off ignition.
- Unfasten oil filter cap to enable engine oil in filter to flow back into the oil sump.
- Remove reinforcement plate.
- Drain off engine oil.

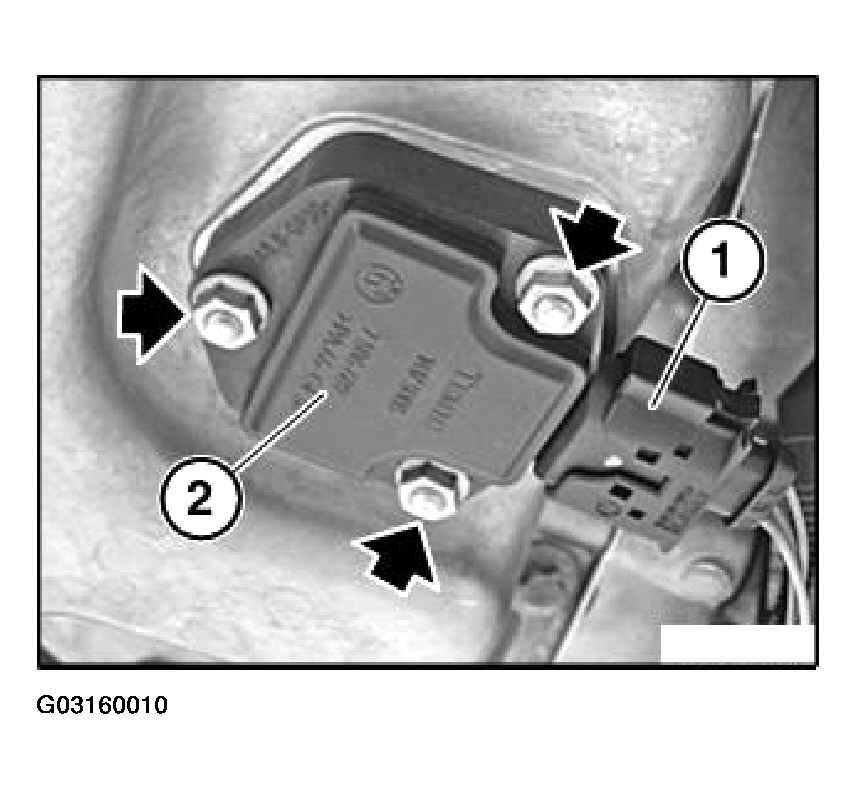

Unlock plug (1) and remove.
Unscrew nuts.
Remove oil level sensor (2).
Installation:
Clean sealing face on oil sump.
Replace seal on oil level sensor.
Tightening torque, refer to 12 61 2AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Installation:
Top up engine oil.
Tighten down oil filter cap.
Tightening torque, refer to 11 42 2AZ in ENGINE MECHANICAL - TIGHTENING TORQUES - 530I .
