12 12 011 Replacing all spark plugs: Procedure

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This repair instruction is valid for the following engines:

M52/M52TU/M54/M56
S52/ S50US

Necessary preliminary tasks:

Remove ignition coils, refer to 12 13 511 REPLACING IGNITION COIL (M52, M52TU, S52, S50US, M54) .

Unscrew and remove spark plugs with special tool 12 1 171 in conjunction with special tool 12 1 200.

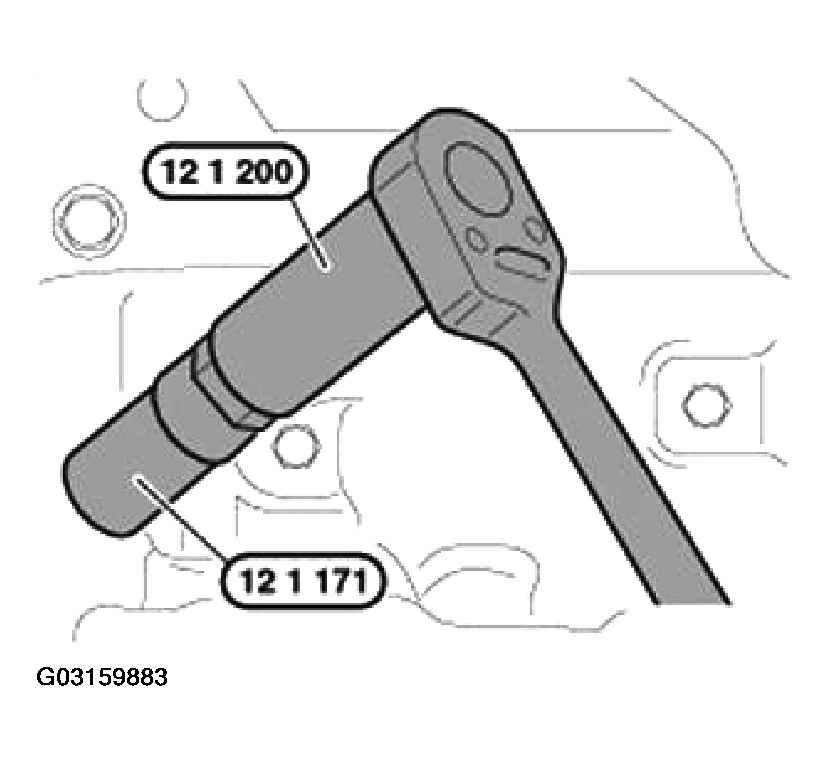

Fig 1: Removing Spark Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If special tool 12 1 200 is not used,

Tightening torque, refer to 12 12 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
