Removing And Installing Or Replacing Vibration Damper

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Unscrew and remove splash guard.
Remove fan impeller with fan clutch and fan cowl, refer to 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52/S54/M52/M52TU/M54/M56) .
Remove A/C compressor drive belt, refer to 11 28 050 REPLACING A/C COMPRESSOR DRIVE BELT (M52/S52/M52TU/M54/M56) .
Remove alternator drive belt, refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (M52/S52/M52TU/M54/M56) .

IMPORTANT: Risk of damage.

Protect cooler against damage.

Version 1

Vibration damper and hub for vibration damper are two parts:

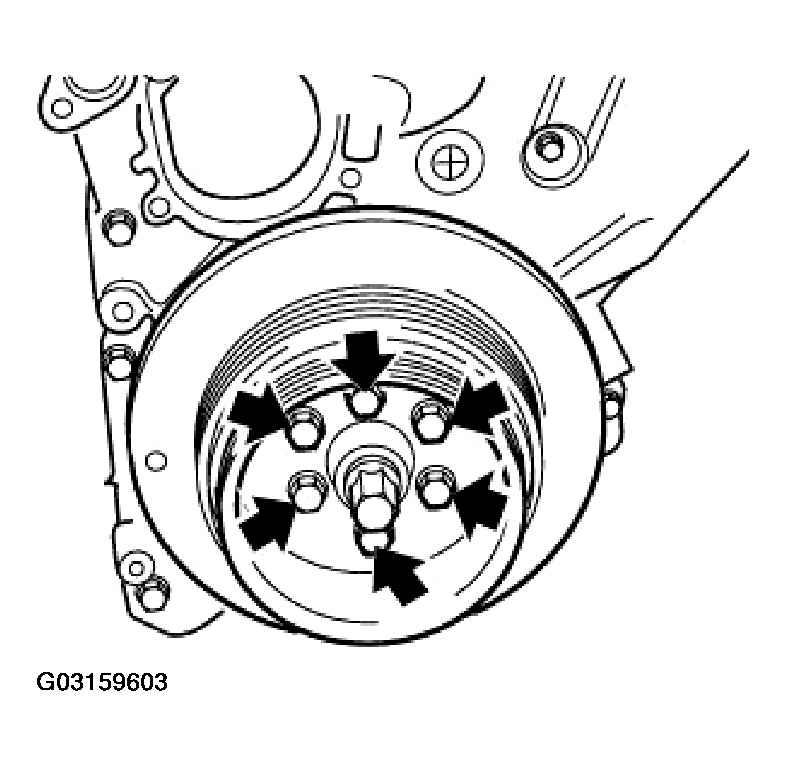

Unscrew vibration damper bolts and take off vibration damper.

Fig 1: Removing Vibration Damper Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1

Vibration damper and hub for vibration damper are two parts:

Installation:

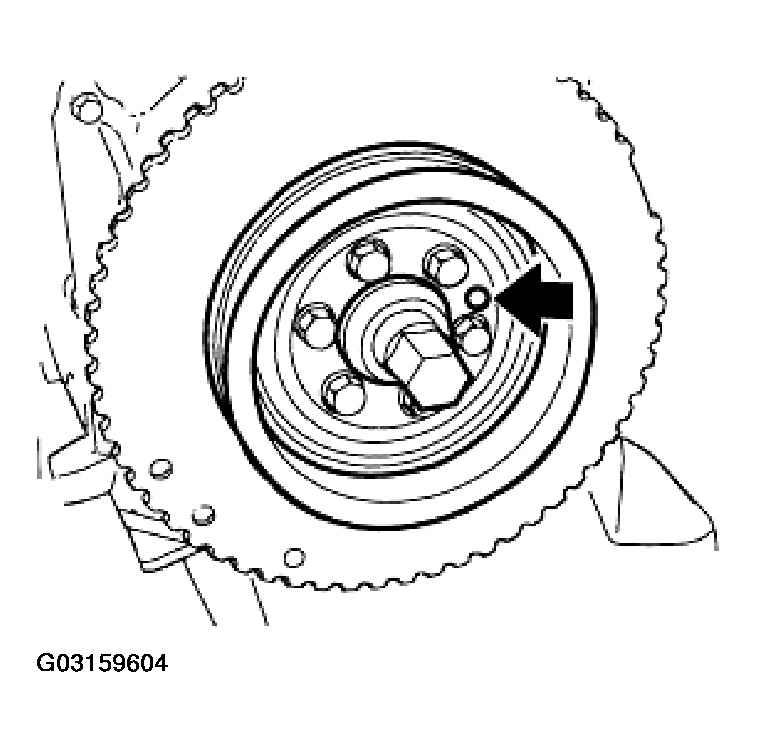

Align locating bore in vibration damper to dowel pin.

Install and tighten down screws.

Tightening torque, refer to 11 23 3AZ in ENGINE MECHANICAL - TIGHTENING TORQUES - 530I (E39) .

Fig 2: Aligning Locating Bore In Vibration Damper To Dowel Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Vibration damper and hub for vibration damper are one part:

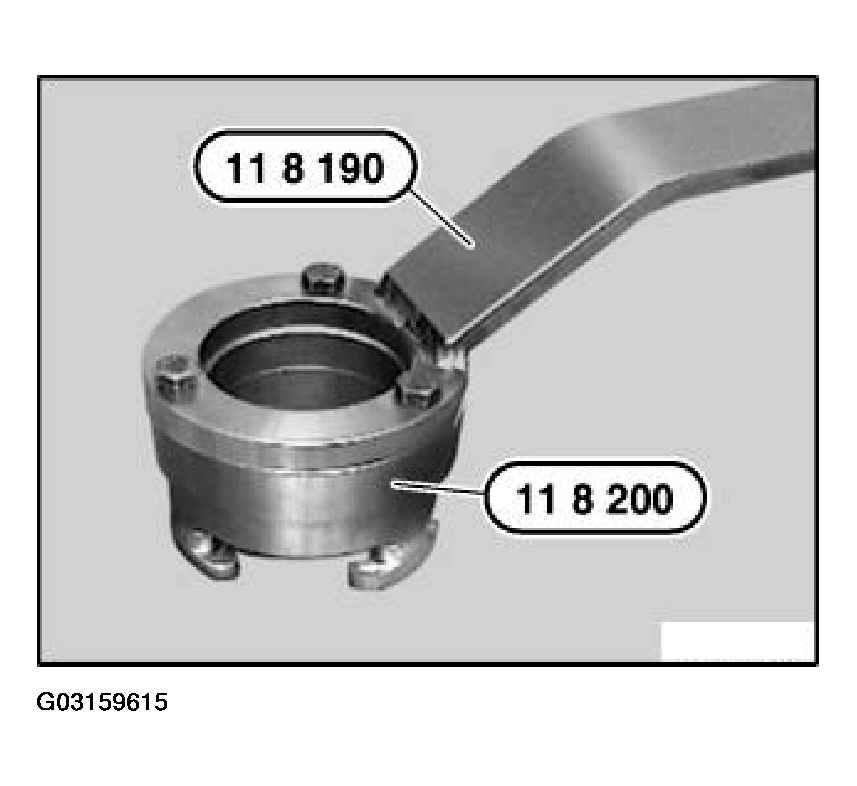

Screw special tool 11 8 190 to special tool 11 8 200.

Fig 3: Assembling Vibration Damper Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

NOTE: Special tool 11 8 200 must snap into place in openings (1).

Fig 4: Identifying Openings On Vibration Damper For Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

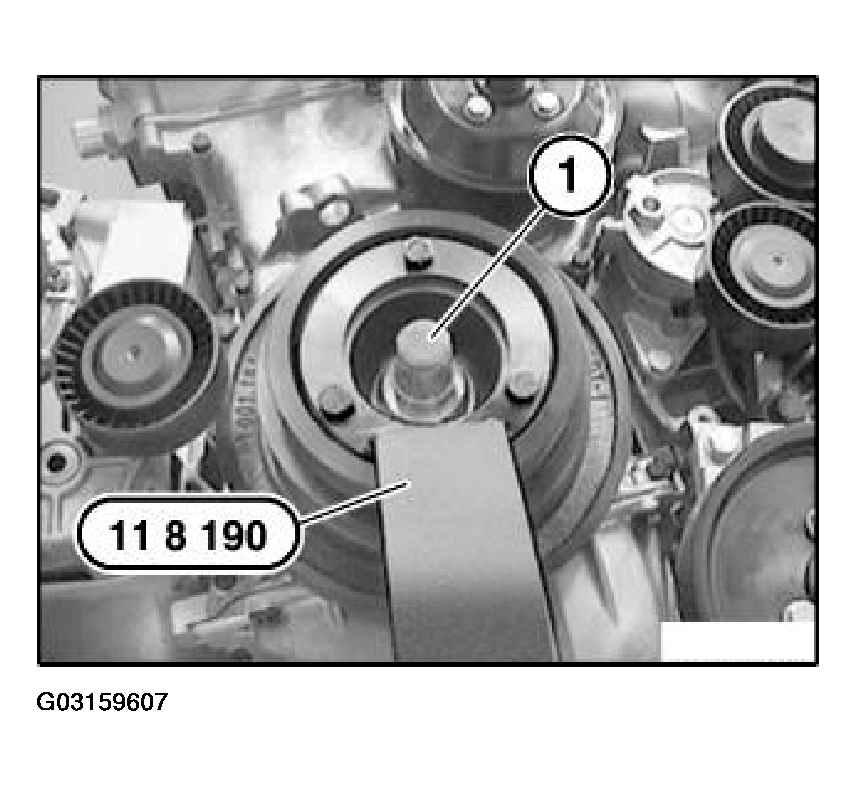

When releasing and tightening down central bolt, grip special tool 11 8 190 with assistance of a second person.

Version 2

Insert special tool 11 8 200 in openings on vibration damper and turn counterclockwise so that counter-supports snap into place on vibration damper.

Release central screw (1).

Fig 5: Removing Central (Crankshaft) Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Feed out special tools 11 8 190/ 11 8 200.

Remove central screw and washer.

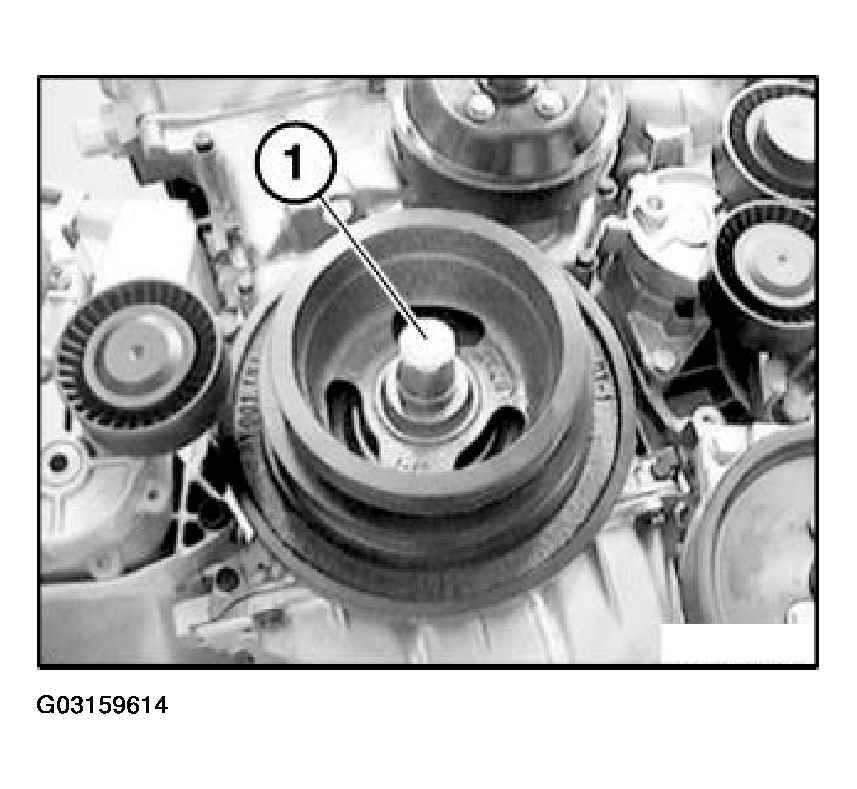

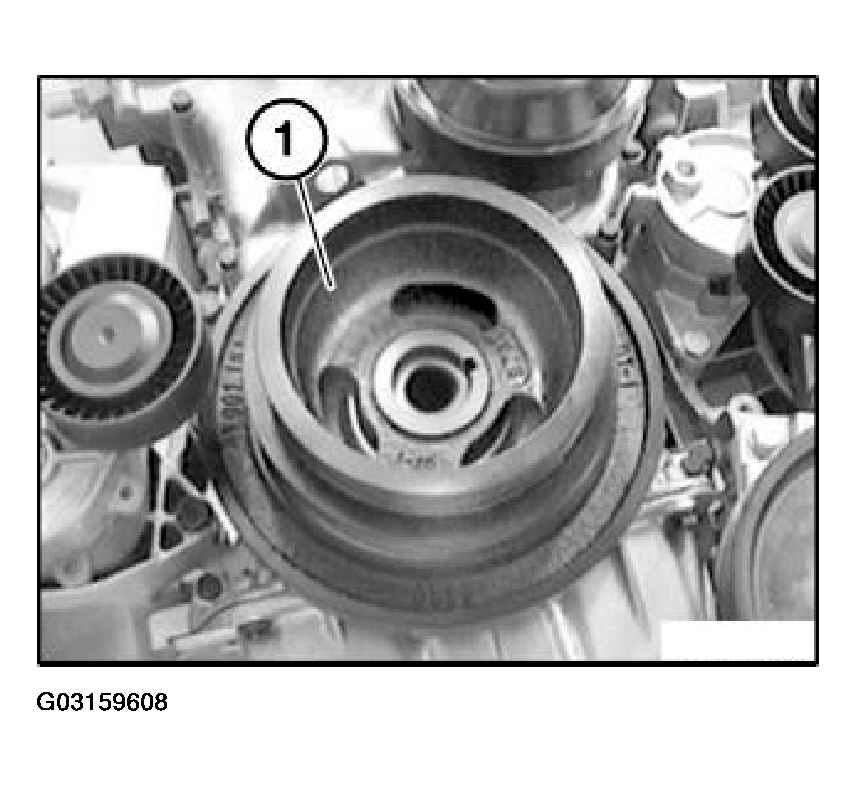

Carefully detach vibration damper (1) by hand.

Fig 6: Removing Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

NOTE: If vibration damper cannot be detached by hand:

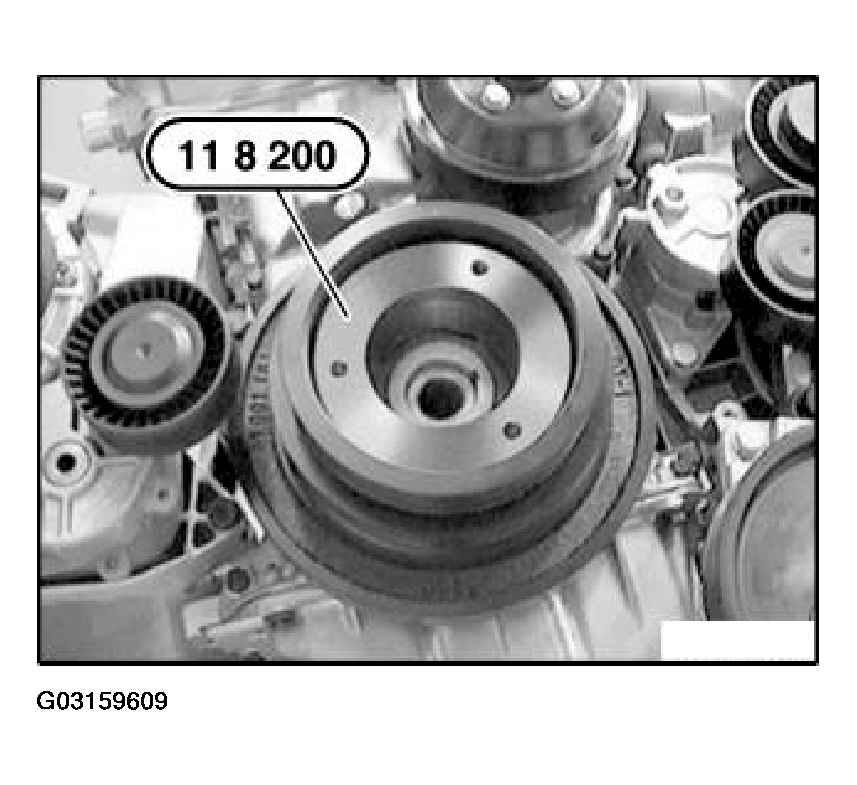

Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

Fig 7: Inserting Special Tool In Openings On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

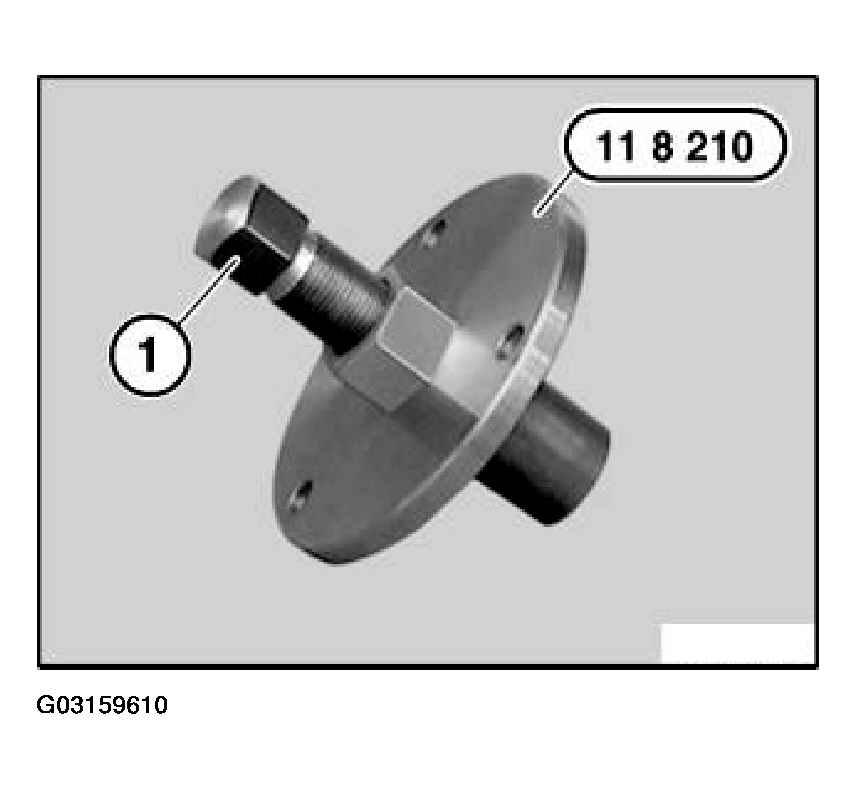

Screw out spindle (1) on special tool 11 8 210 as far as possible.

Fig 8: Loosen Spindle Screw On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

IMPORTANT: Risk of damage.

Protect cooler against damage.

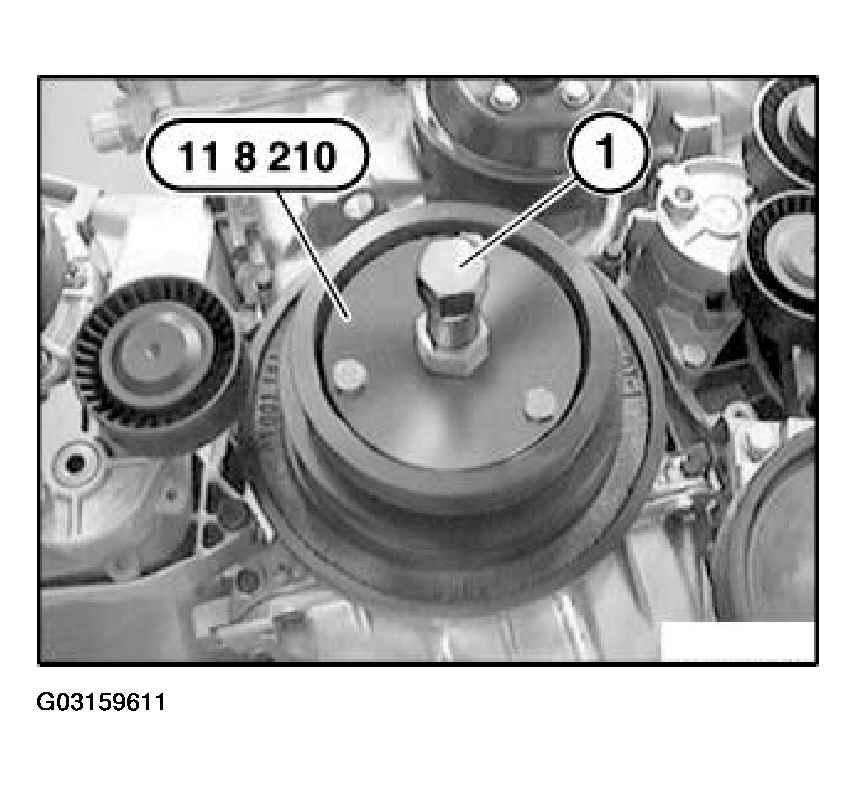

Carefully install special tool 11 8 210.

Screw special tool 11 8 210 to special tool 11 8 200.

Detach vibration damper by turning spindle (1) on special tool 11 8 210.

Fig 9: Removing Vibration Damper With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

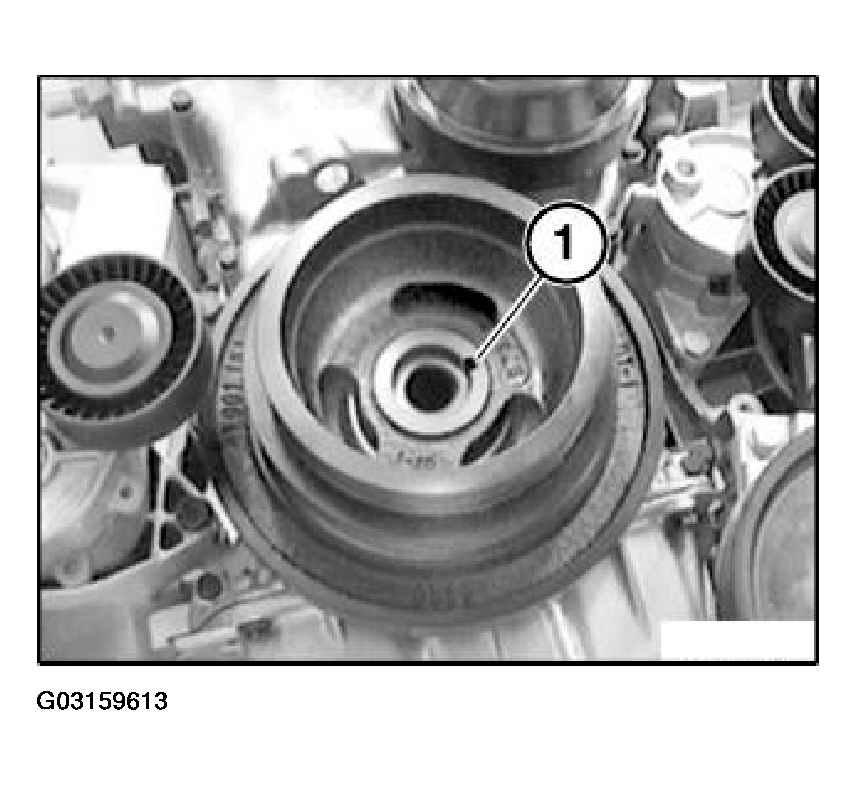

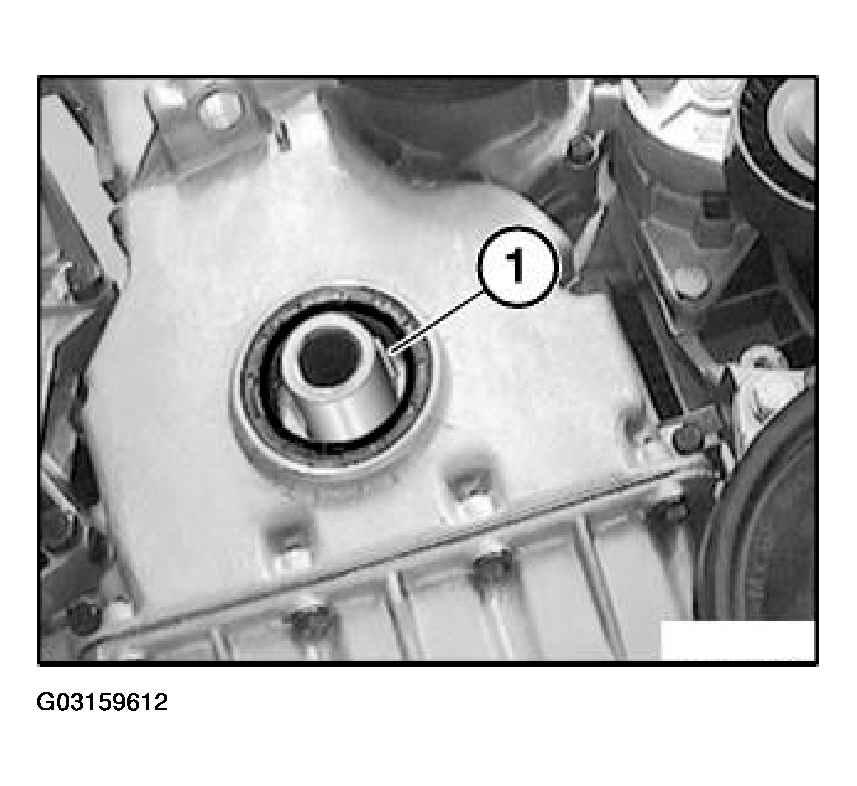

Check featherkey (1) for damage and correct installation position.

Fig 10: Checking Featherkey

Courtesy of BMW OF NORTH AMERICA, INC.

Replace radial seal in lower timing case cover, refer to 11 14 141 REPLACING RADIAL SEAL IN LOWER TIMING CASE COVER .

Version 2

Installation:

Align groove (1) in vibration damper to featherkey.

Fit vibration damper.

Fig 11: Installing Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

Replace central screw (1).

Install central screw and washer.

Fig 12: Installing Central Screw And Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

Screw special tool 11 8 190 to special tool 11 8 200.

Fig 13: Fitting Special Tool To Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

Tighten down central screw (1).

Tightening torque, refer to 11 23 2AZ in ENGINE MECHANICAL - TIGHTENING TORQUES - 530I (E39) .

Fig 14: Tightening Central Screw

Courtesy of BMW OF NORTH AMERICA, INC.
