Replacing Valve Springs

Cylinder head removed, refer to 11 12 100 REMOVING AND INSTALLING/REPLACING CYLINDER HEAD (M52TU/M54/M56) .

Preliminary tasks are described in 11 12 503 DISASSEMBLING AND ASSEMBLING CYLINDER HEAD (M52/S52/M52TU/M54/M56) .

Brace bucket tappets with special tool 11 3 250.

Lift out bearing strip with bucket tappet.

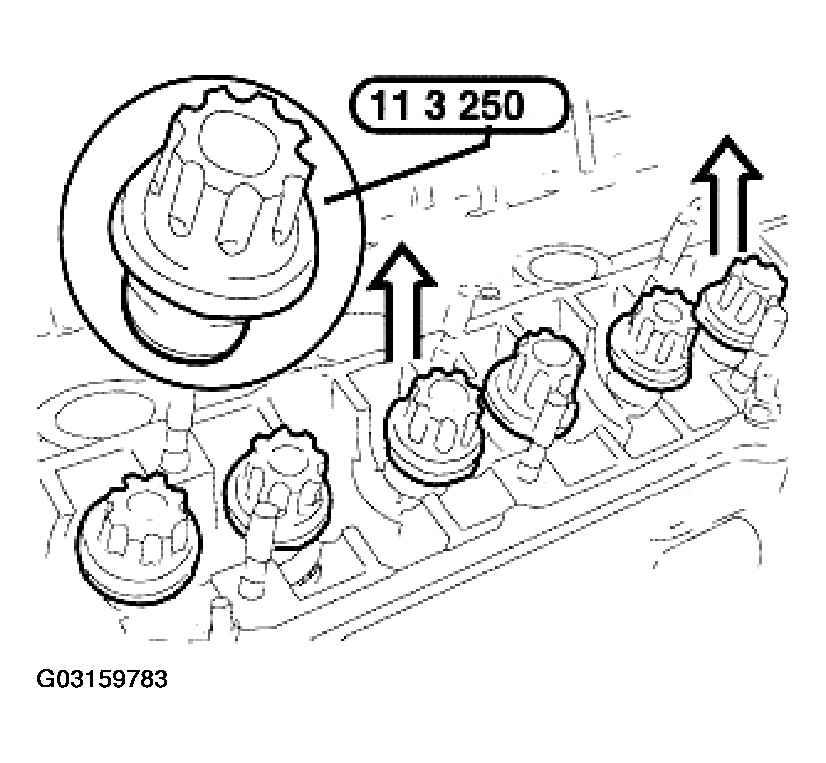

Fig 1: Removing Bearing Strip With Bucket Tappet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Only re-use used bucket tappets in the same tappet bore.

Arrange bucket tappets by cylinder and place on special tool 11 3 030 in correct order.

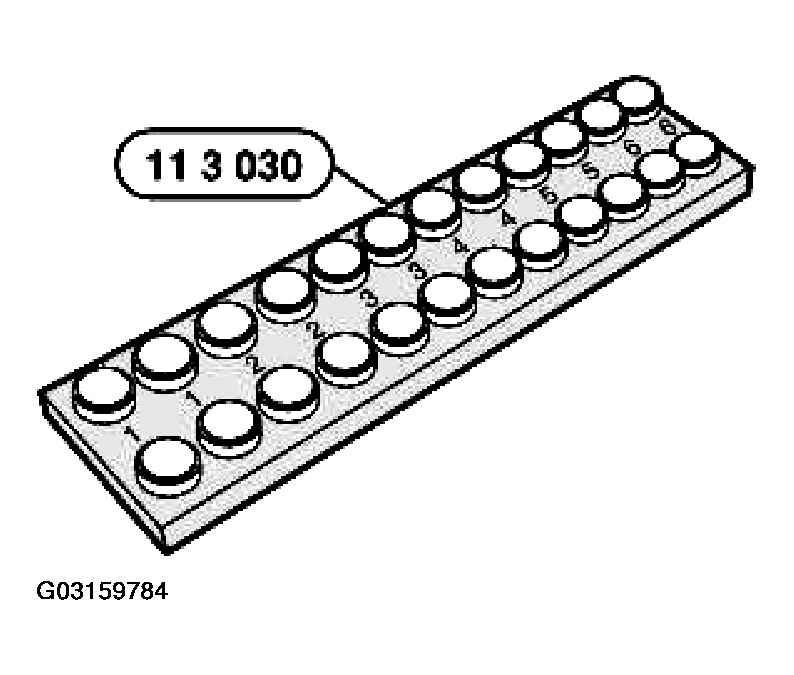

Fig 2: Place Bucket Tappets In Appropriate Order

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 1 441 from below in special tool 11 1 065 and secure with special tool 11 1 045.

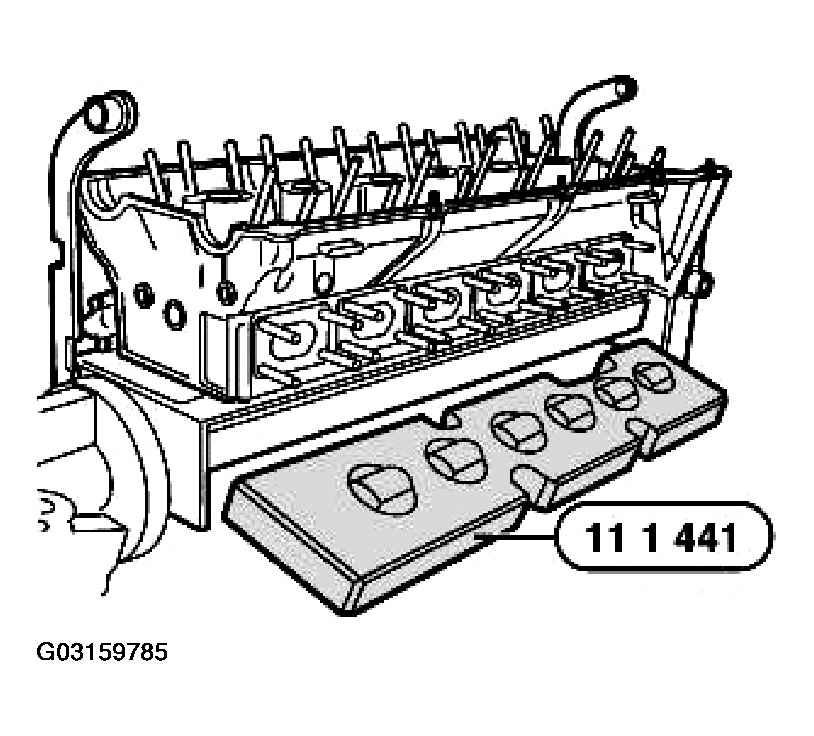

Fig 3: Assemble Cylinder Head To Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Align special tool 11 0 345 in direction of valve shaft and select appropriate groove in special tool 11 0 342.

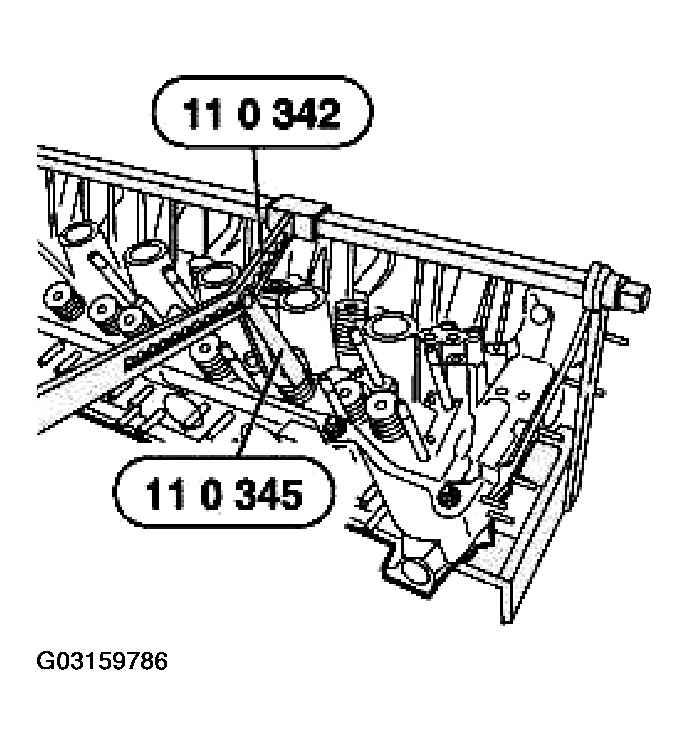

Fig 4: Aligning Valve Spring Compressor As Illustrated

Courtesy of BMW OF NORTH AMERICA, INC.

Press down valve spring on spring cap, top, and remove valve keys.

Remove valve spring and plate spring.

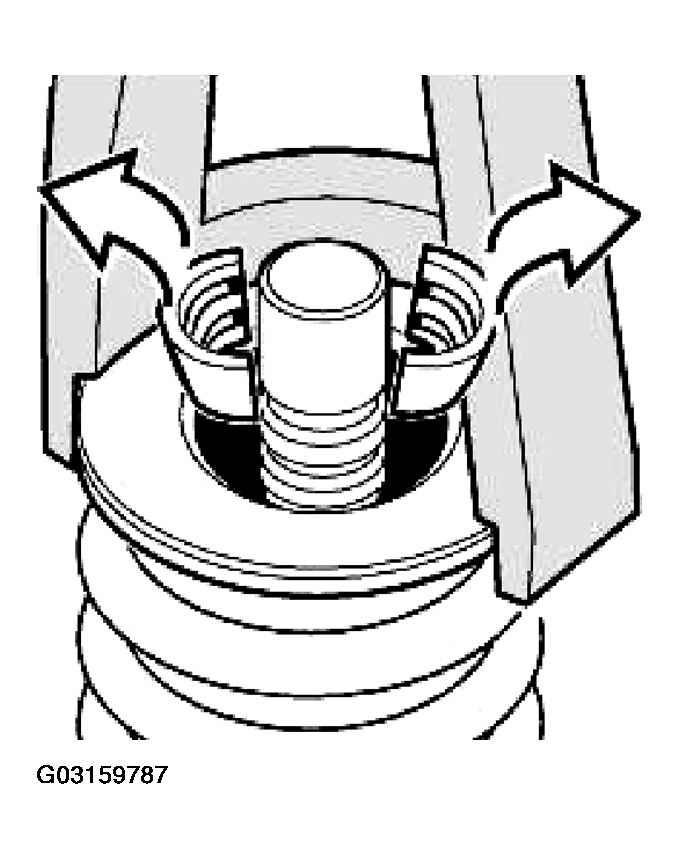

Fig 5: Removing Valve Spring And Plate Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement:

1. Valve
2. Valve-Stem Seal
3. Lower Plate Spring
4. Valve Spring
5. Top Plate Spring
6. Valve Tapers

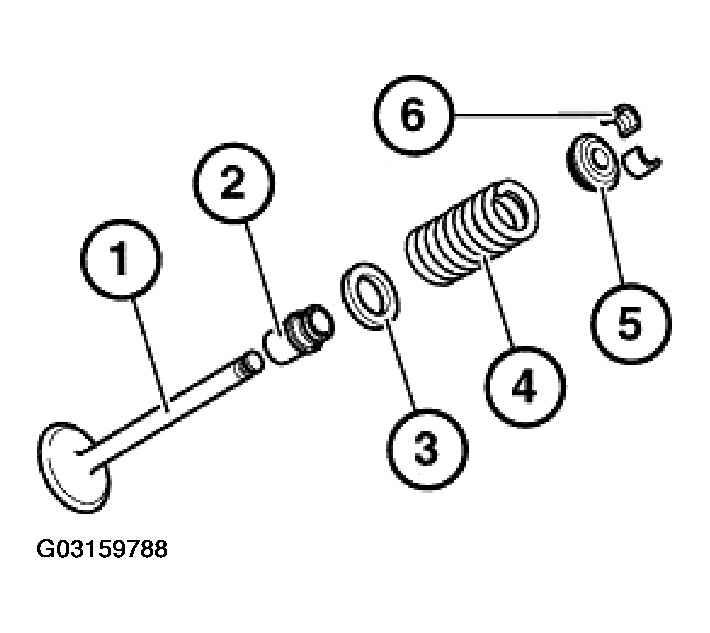

Fig 6: Exploded View Of Valve Components
