Replacing Valve Stem Seals

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Cylinder head removed, refer to 11 12 100 REMOVING AND INSTALLING/REPLACING CYLINDER HEAD (M52TU/M54/M56) .

Preliminary tasks are described in 11 12 503 DISASSEMBLING AND ASSEMBLING CYLINDER HEAD (M52/S52/M52TU/M54/M56) .

Remove all valve springs, refer to 11 34 715 REPLACING ALL VALVE SPRINGS (M52/S52/M52TU/M54/M56) .

Remove valve stem seal with special tool 11 1 480.

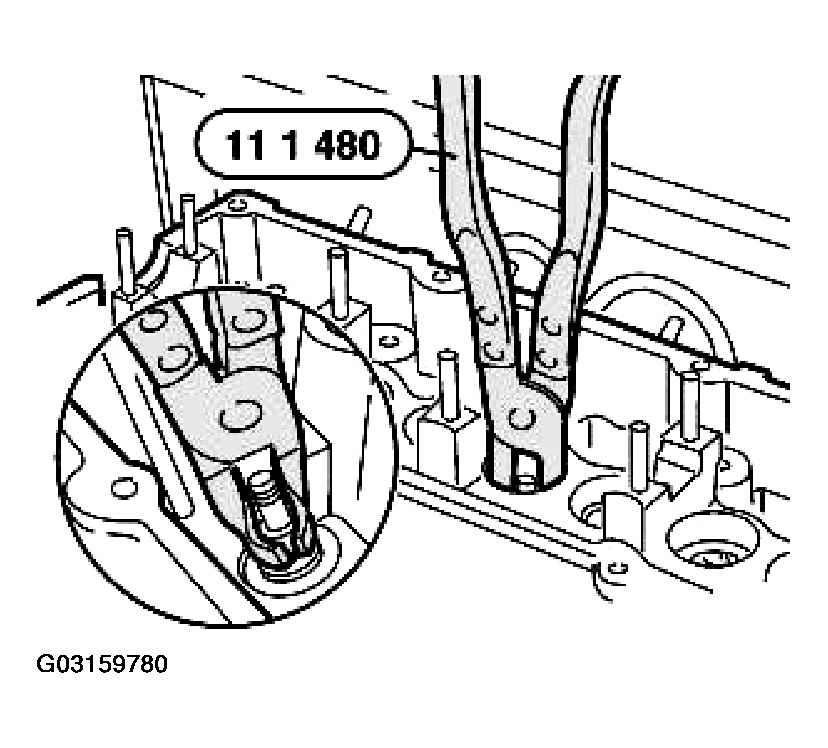

Fig 1: Removing Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate valve stem with oil and insert valve. Fit special tool 11 1 960.

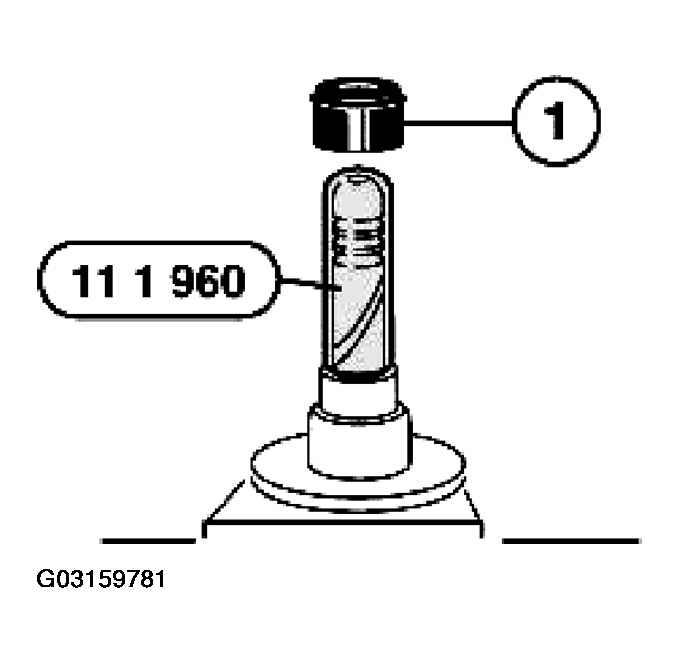

Coat new valve stem seal (1) with oil and install.

Fig 2: Fit Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Press valve stem seal firmly home by hand with special tool 11 1 200.

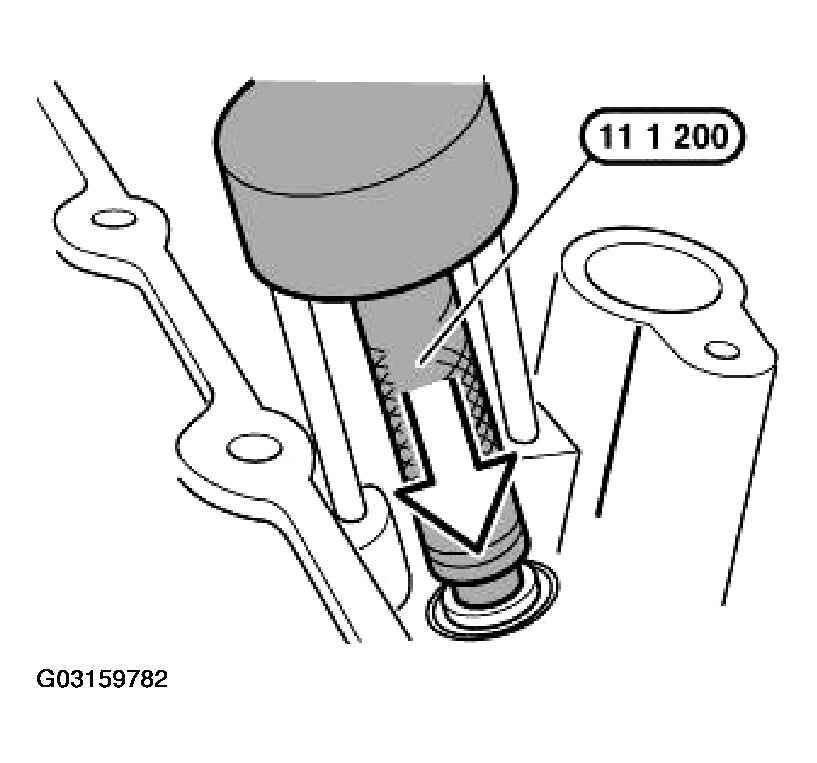

Fig 3: Pressing Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.
