Removing And Installing Or Replacing Flywheel

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Clutch removed, refer to CLUTCHES - 5 SERIES (E39) .

Lock flywheel with special tool 11 2 170.

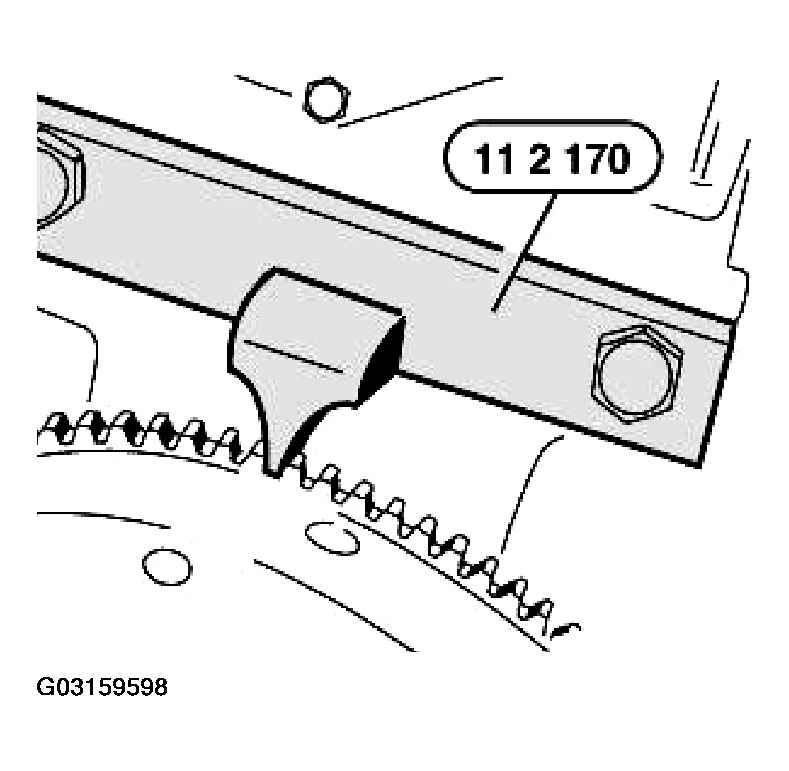

Fig 1: Locking Flywheel

G03159598

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove flywheel.

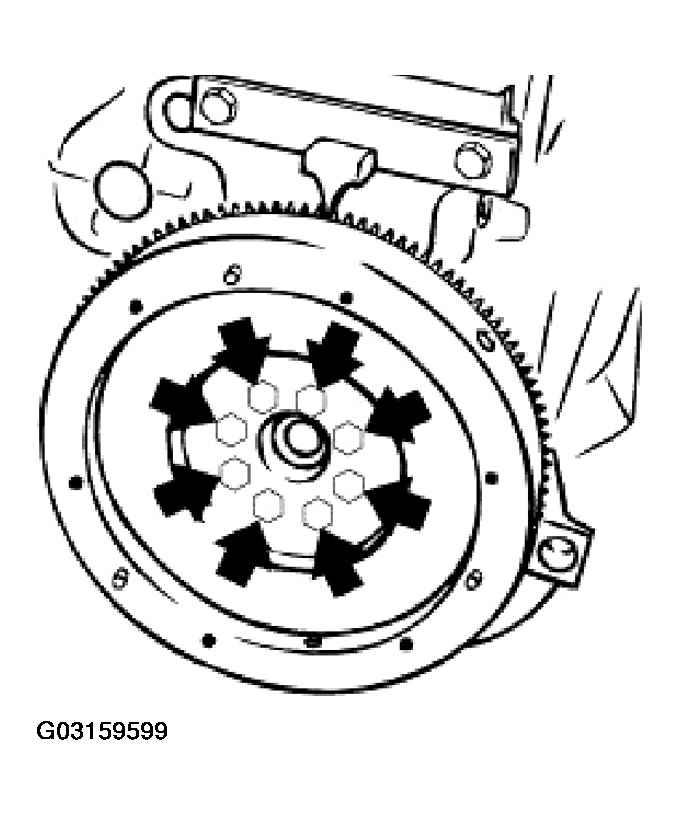

Fig 2: Removing Flywheel

G03159599

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check dowel sleeve for damage and correct installation position.

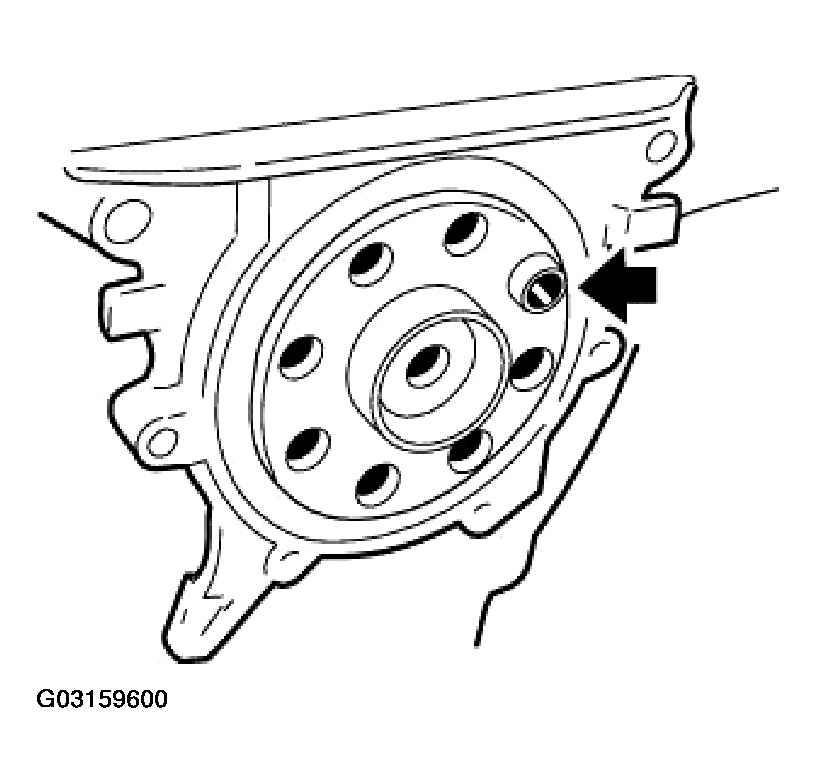

Fig 3: Identifying Installed Position Of Dowel Sleeve

G03159600

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position of dowel sleeve (1) in dual-mass flywheel is identified by two notches next to associated bolt hole.

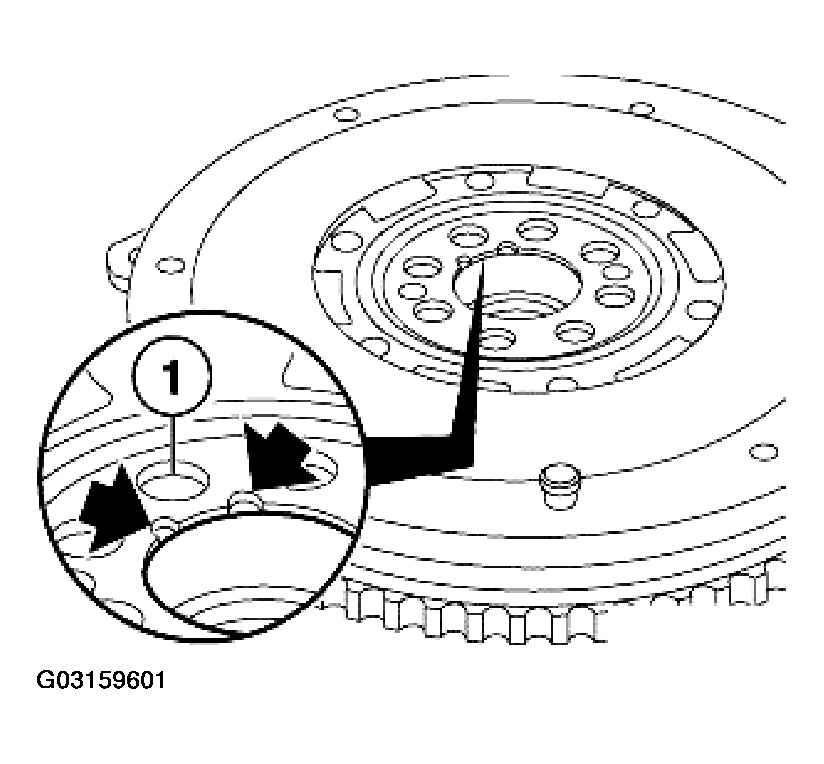

Fig 4: Identifying Installed Position Of Dowel Sleeve (Dual-Mass Flywheel)

G03159601

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean thread and install new micro-encapsulated screws.

Tightening torque, refer to 11 22 1 AZ in ENGINE MECHANICAL - TIGHTENING TORQUES - 530I (E39) .

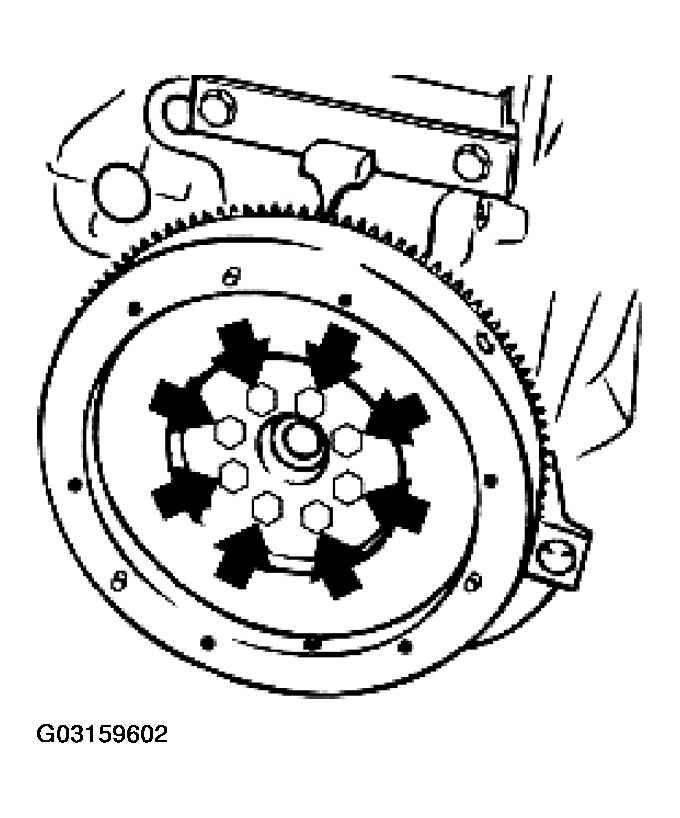

Fig 5: Installing Flywheel

G03159602

Courtesy of BMW OF NORTH AMERICA, INC.
