Special tools required:

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

11 7 020
11 7 030

(for work step number 13 00 002)

Read out fault memory, clear if necessary.

Remove cover from fuel injectors.

NOTE: Do not mix up oxygen monitor sensors for cylinders 1 to 3 and 4 to 6 at plug connection to wiring harness.

Mark plug connections.

Unclip the cable from the retainer. Disconnect plug. Unclip cable on rear side of engine from cable guide.

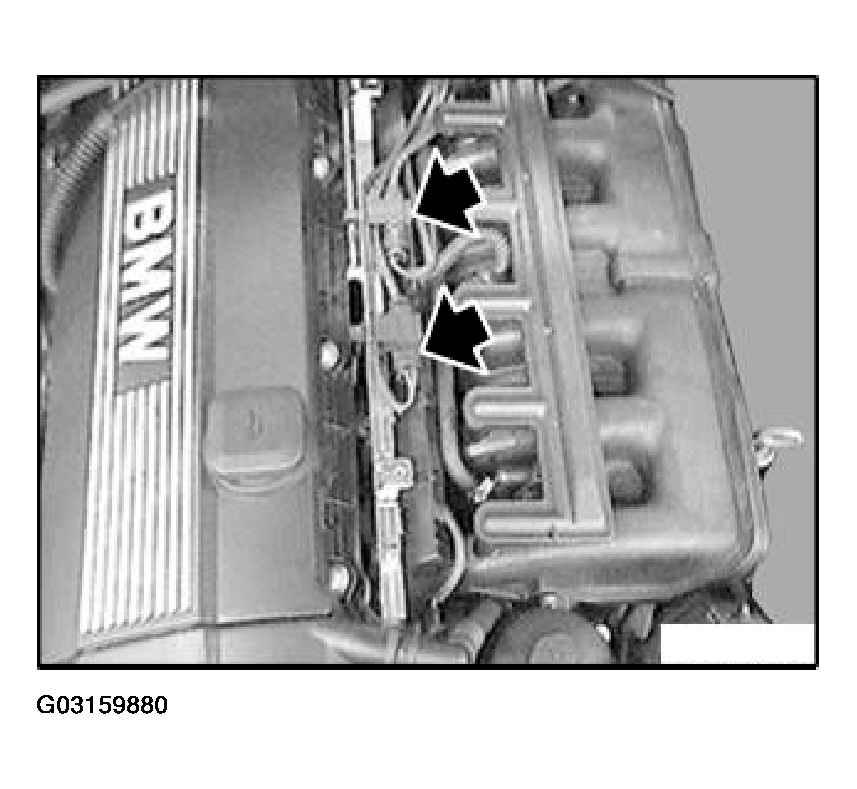

Fig 1: Disconnecting Plug Connectors At Arrows

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On vehicles with automatic transmission:

In event of unfavorable tolerances, accessibility to the oxygen monitor sensor from cylinders 4 to 6 is only possible after the exhaust system has been removed.

Release oxygen monitor sensor from cylinders 1 to 3 with special tool 11 7 030.

Release oxygen monitor sensor from cylinders 4 to 6 with special tool 11 7 020.

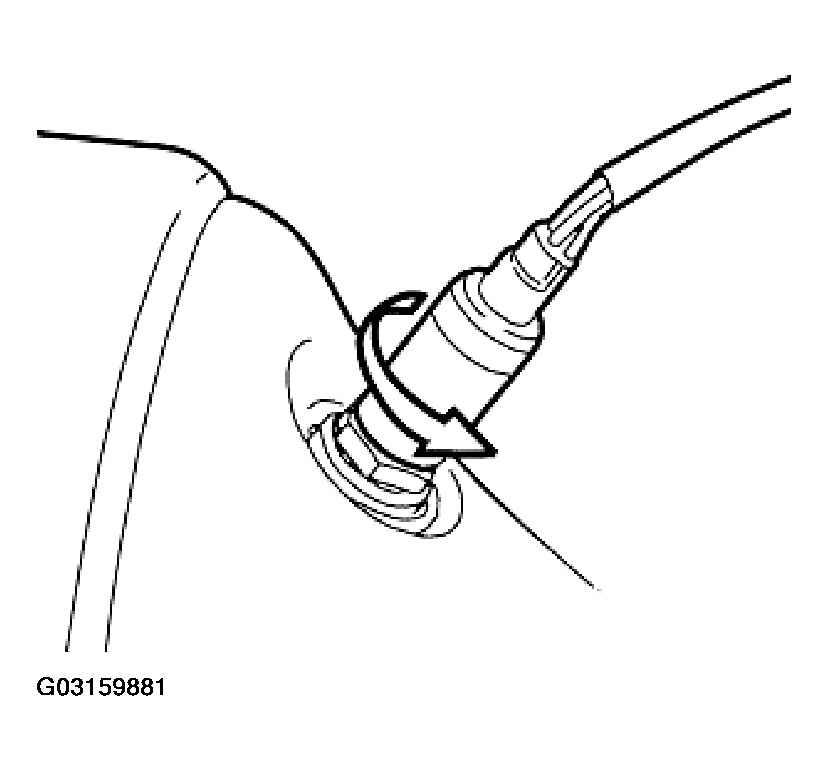

Fig 2: Removing Oxygen Monitor Sensors

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The threads of new oxygen monitor sensors are already coated with Never Seez compound.

If an oxygen monitor sensor is reused, only apply a thin and uniform coat of Never Seez compound to thread.

Part of oxygen control sensor which projects into exhaust system branch must not be cleaned or come into contact with lubricant.

Installation:

Secure oxygen monitor sensor for cylinders 1 to 3 with special tool 11 7 030.

Secure oxygen monitor sensor for cylinders 4 to 6 with special tool 11 7 020.

Tightening torque, refer to 11 78 1AZ in ENGINE MECHANICAL - TIGHTENING TORQUES - 530I (E39) .

Cover oxygen monitor sensors when applying underseal.

Pay attention to cable routing of oxygen monitor sensors.

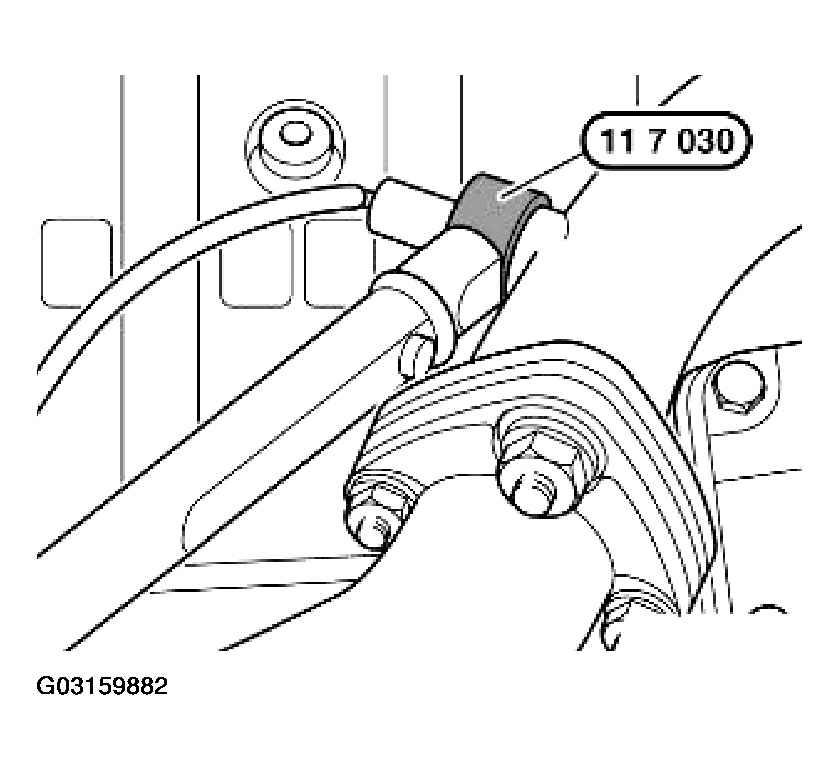

Fig 3: Installing Oxygen Monitor Sensors

Courtesy of BMW OF NORTH AMERICA, INC.
