Disassembling And Assembling Cylinder Head

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Cylinder head removed, refer to 11 12 100 REMOVING AND INSTALLING/REPLACING CYLINDER HEAD (M52TU/M54/M56) .

If necessary, remove coolant thermostat, refer to 11 53 000 REMOVING AND INSTALLING/REPLACING COOLANT THERMOSTAT (M52TU/M54/M56) .

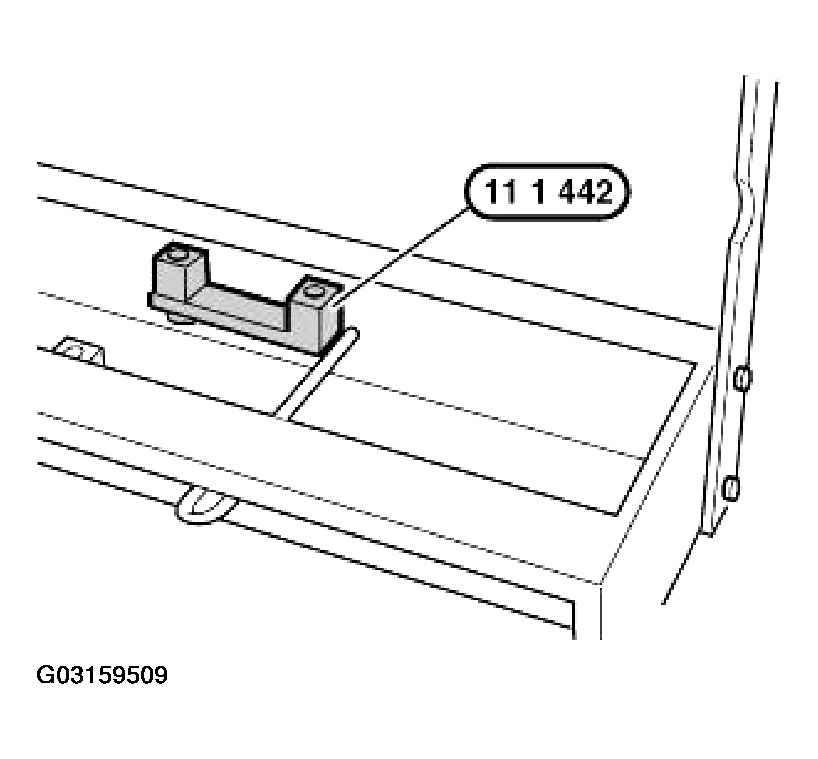

Screw on special tool 11 1 442.

Fig 1: Installing Special Tool 11 1 442

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 l 065 onto special tool 00 1 490.

Provide special tools for disassembling cylinder head:

special tool 11 l 071
special tool 11 l 067
special tool 11 0 192

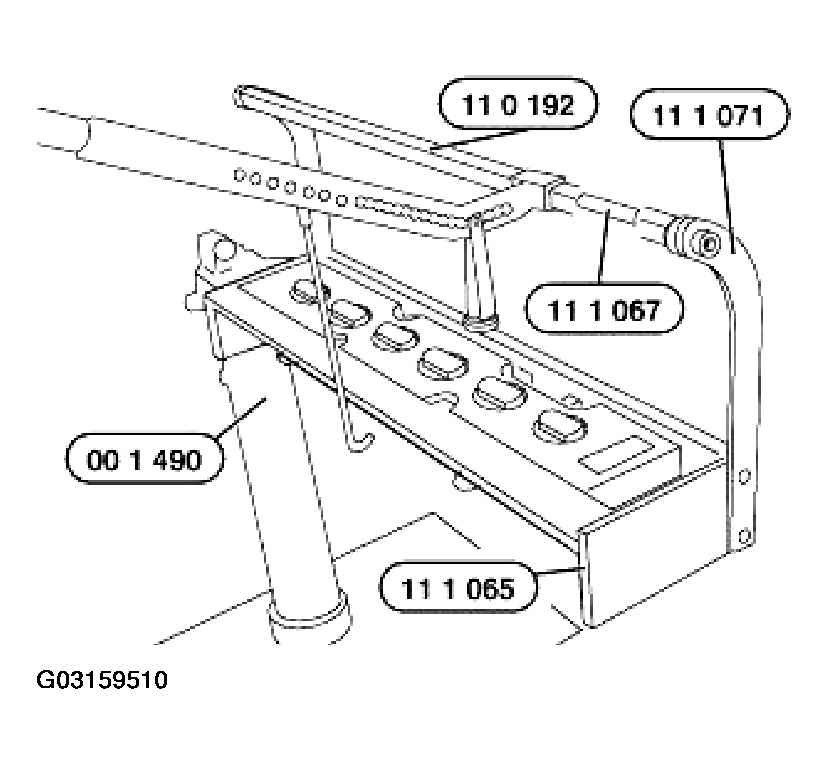

Fig 2: Assembling Cylinder Head Special Tools (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
special tool 11 l 045
special tool 11 0 342
special tool 11 0 343
special tool 11 0 345
special tool 11 l 441

Assemble special tools.

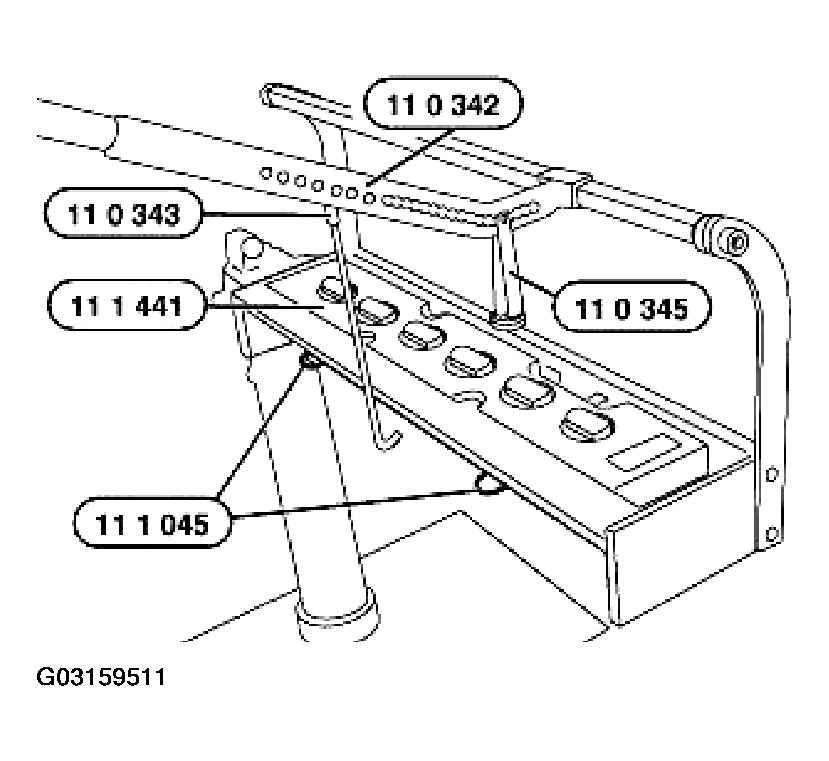

Fig 3: Assembling Cylinder Head Special Tools (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

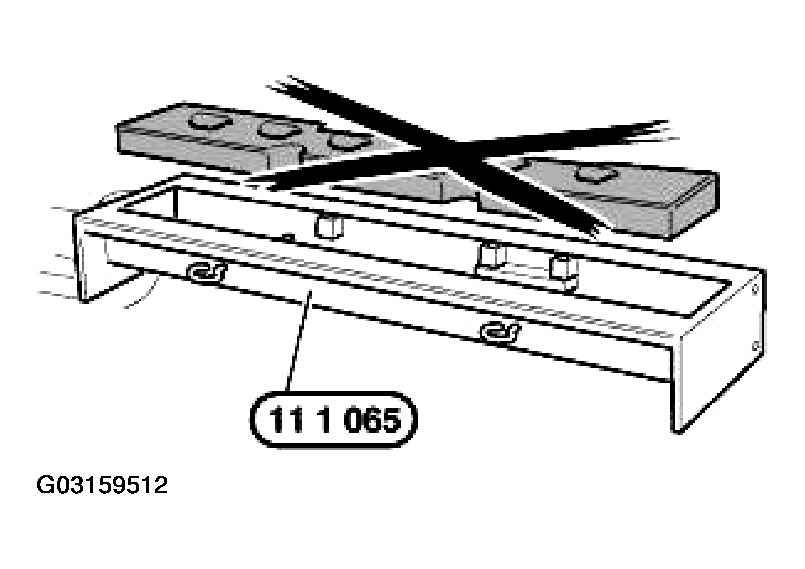

NOTE: Do not install special tool 11 1 441 (locating board) in special tool 11 1 065 at this stage.

Fig 4: Do Not Install Special Tool 11 1 441 (Locating Board)

Courtesy of BMW OF NORTH AMERICA, INC.

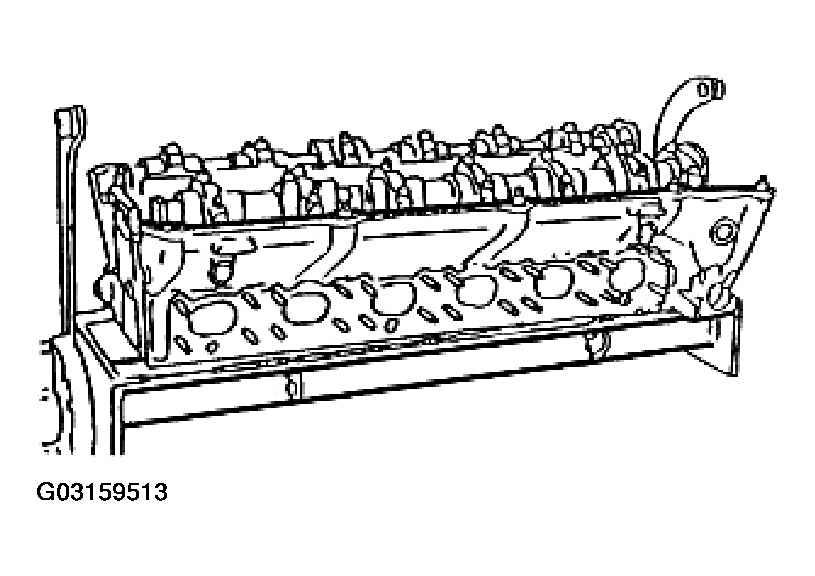

Place cylinder head on special tool 11 1 065 and screw on with two screws.

Fig 5: Placing Cylinder Head On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all valve springs, refer to 11 34 715 REPLACING ALL VALVE SPRINGS (M52/S52/M52TU/M54/M56) .

Remove all valve stem seals, refer to 11 34 560 REPLACING ALL VALVE STEM SEALS (M52/S52/M52TU/M54/M56) .

Remove all valves, refer to 11 34 552 REMOVING AND INSTALLING OR REPLACING ALL VALVES (M52/S52/M52TU/M54/M56) .
