11 12 100 Removing and installing/replacing cylinder head (M52TU/M54/M56): Installation

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Installation of cylinder head is described separately from removal.

Clean sealing faces of cylinder head and engine block; if necessary, remove traces of gasket with hardwood spatula. Make sure no gasket remnants drop into oil and cooling channels.

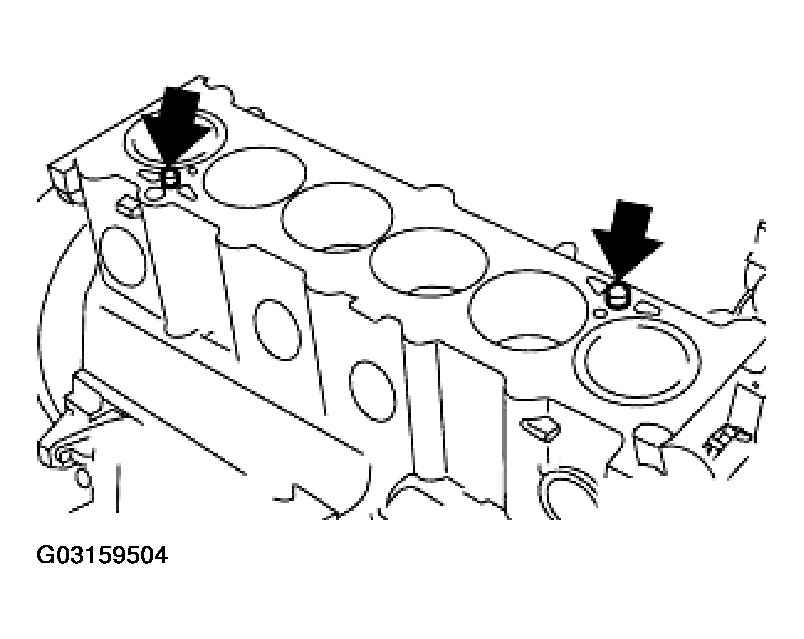

Check adapter sleeves for damage and correct installation position.

Apply permanently elastic sealing compound Drei Bond 1209 to joints to timing case cover.

Replace cylinder head gasket.

Fig 1: Applying Permanently Elastic Sealing Compound Drei Bond

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A cylinder head seal 0.3 mm thicker than usual can be obtained for machined (milled) cylinder heads.

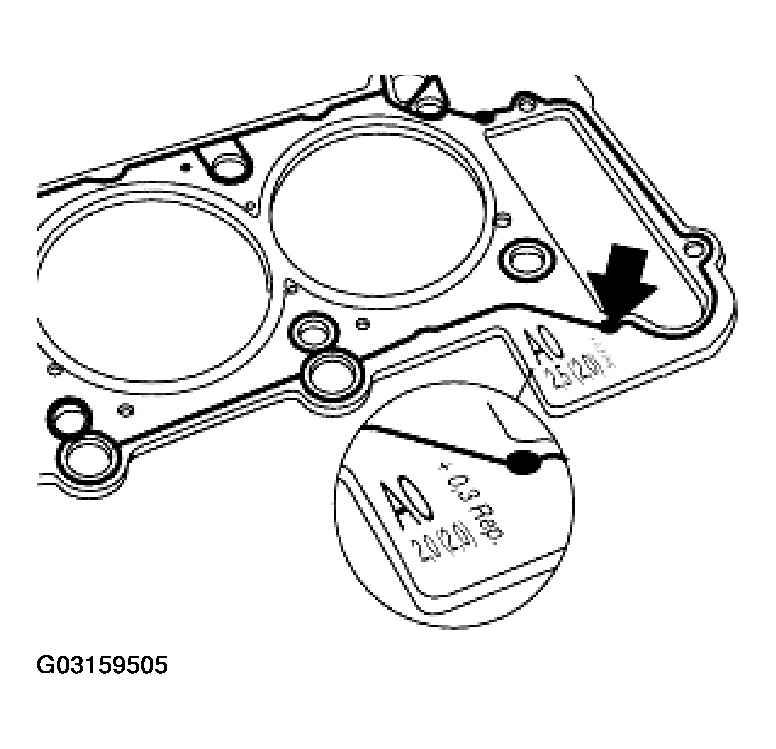

Fig 2: Identifying Optional Cylinder Head Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Different cylinder head bolts for M52TU engine:

M10X95 For Engines With Cast Iron Engine Block
M10X110 For Engines With Aluminum Engine Block

Use cylinder head bolts only once.

There must be no oil in the tapped holes of the engine block and the timing case cover.

Risk of cracking and distorted tightening values.

Put the cylinder head on.

Apply a light coat of oil to washer contact area and thread of new cylinder head bolts.

NOTE: Use special tool 00 9 120 for torsion angle tightening.

Tighten down cylinder head bolts in sequence 1 to 14.

Tightening torque, refer to 11 12 6AZ in ENGINE MECHANICAL - TIGHTENING TORQUES - 530I (E39) .

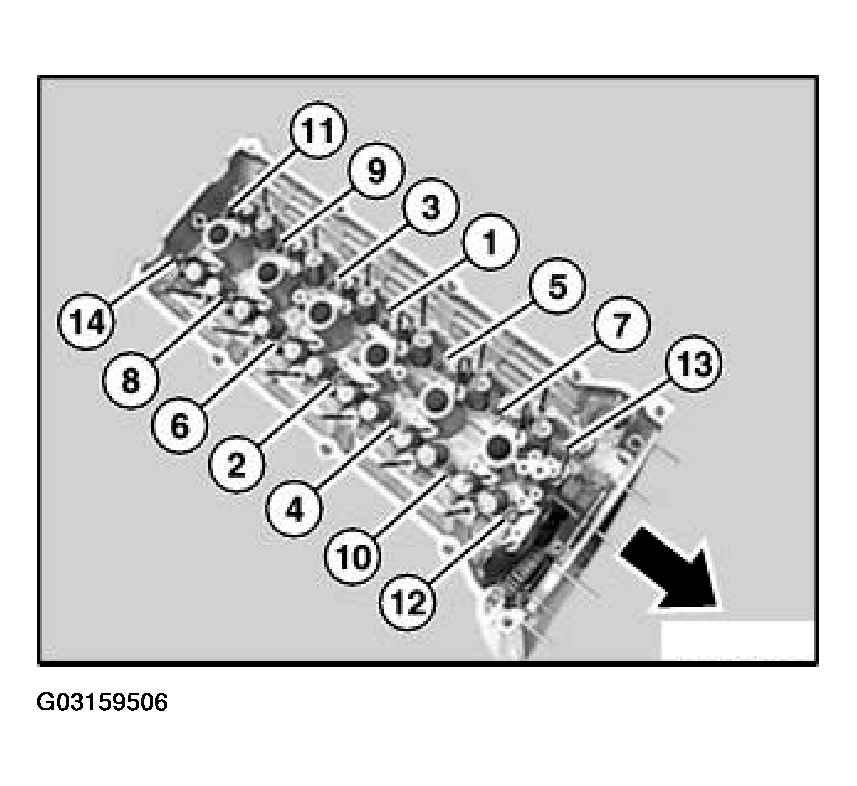

Fig 3: Cylinder Head Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Install chain guide.

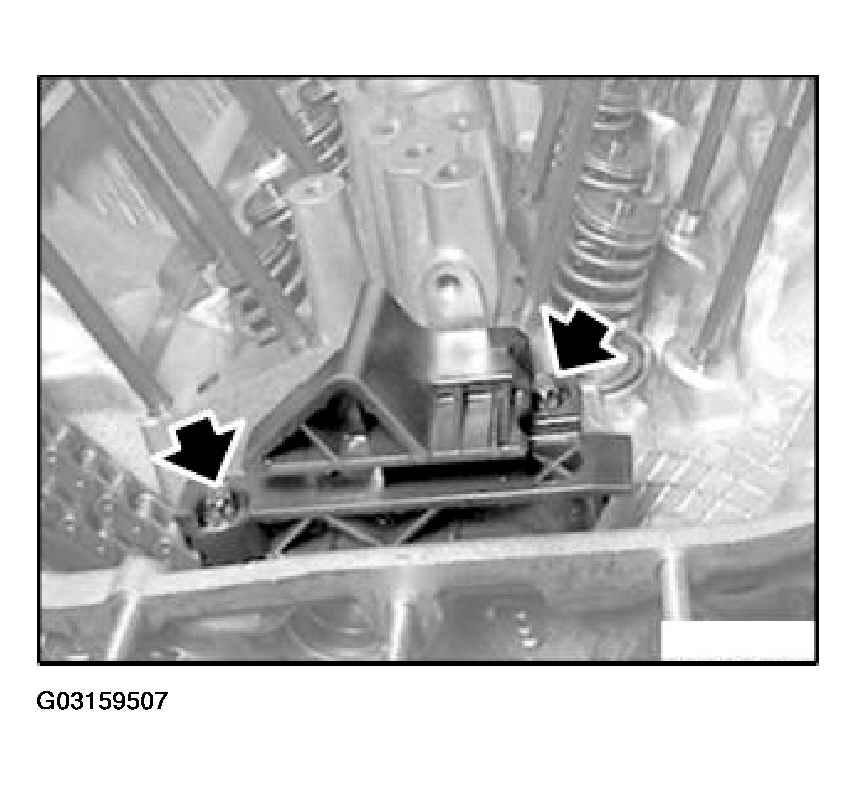

Fig 4: Installing Chain Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws and tighten down screw connection between timing case cover and cylinder head.

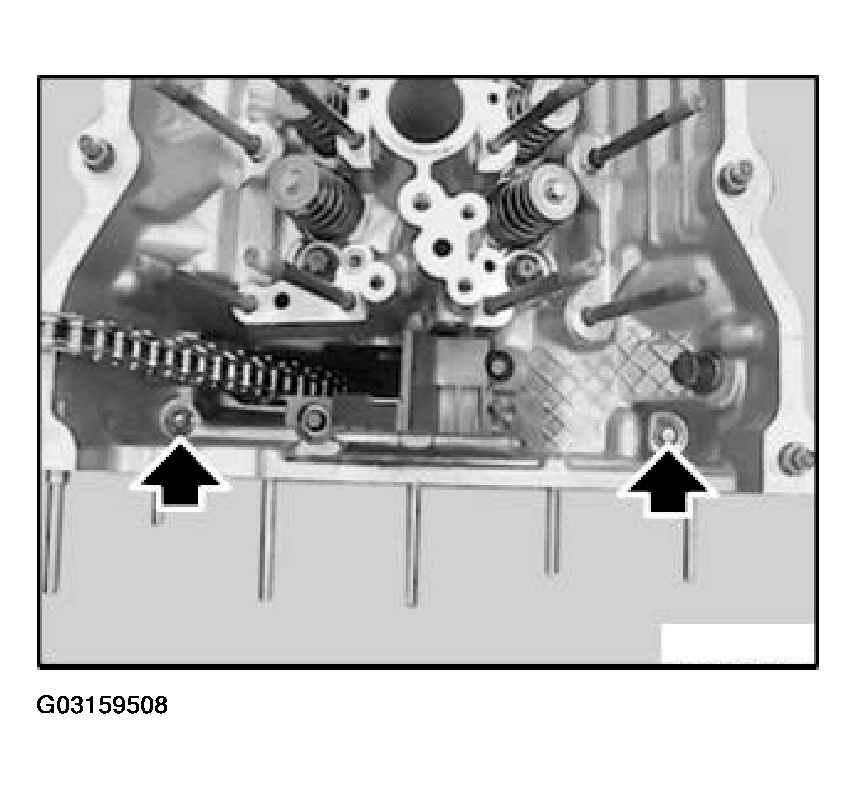

Fig 5: Installing Screw Connection Between Timing Case Cover And Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Install camshafts, refer to 11 31 001 REPLACING CAMSHAFT (M52TU/M54/M56) .

Install double VANOS adjustment unit, refer to 11 36 010 REMOVING AND INSTALLING OR REPLACING DOUBLE VANOS ADJUSTMENT UNIT (M52TU/M54/M56) .

Assemble engine.
