Replacing Grooved Ball Bearing In Crankshaft

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Clutch removed, refer to CLUTCHES - 5 SERIES (E39) .

IMPORTANT: In version with needle bearing (1) in dual-mass flywheel (2), no grooved ball bearing may be fitted in the crankshaft.

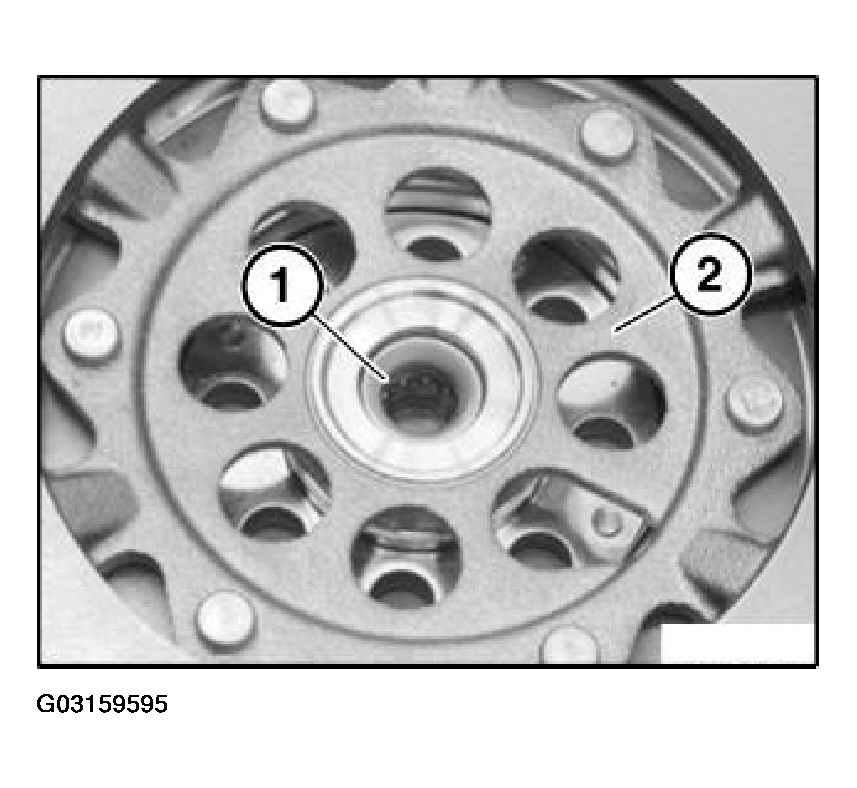

Fig 1: Identifying Needle Bearing In Dual-Mass Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Grooved Ball Bearing:

Remove guide bearing with special tool 11 2 340.

Fig 2: Removing Guide Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Install new thrust bearing and drive firmly home with special tool 11 2 350 in conjunction with special tool 00 5 500.

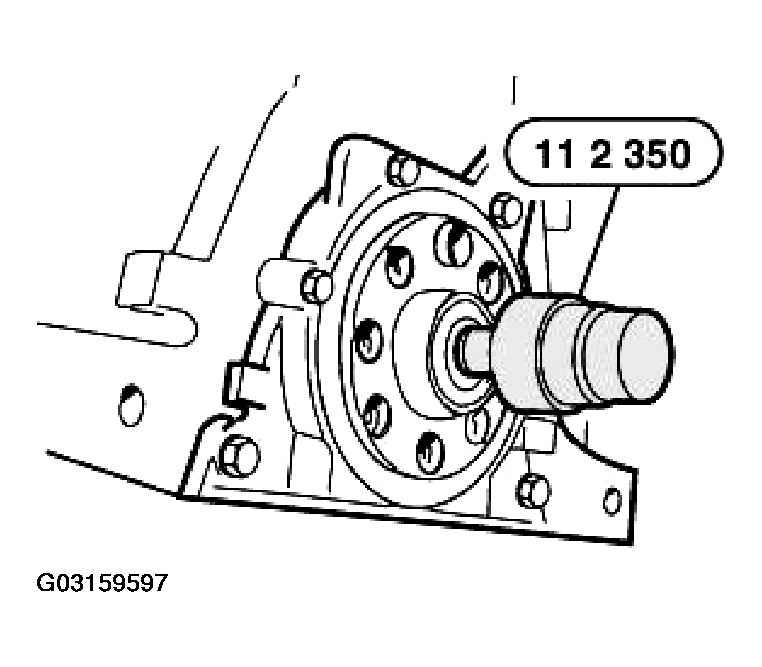

Fig 3: Installing Guide Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
