Checking Camshaft Timing

Necessary preliminary tasks:

• Remove fan impeller with fan clutch and fan cowl, refer to 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52/S54/M52/M52TU/M54/M56) .
• Remove cylinder head cover, refer to 11 12 000 REMOVING AND INSTALLING, SEALING CYLINDER HEAD COVER (M52TU/M54/M56) .
• Remove all spark plugs, refer to 12 12 011 REPLACING ALL SPARK PLUGS .

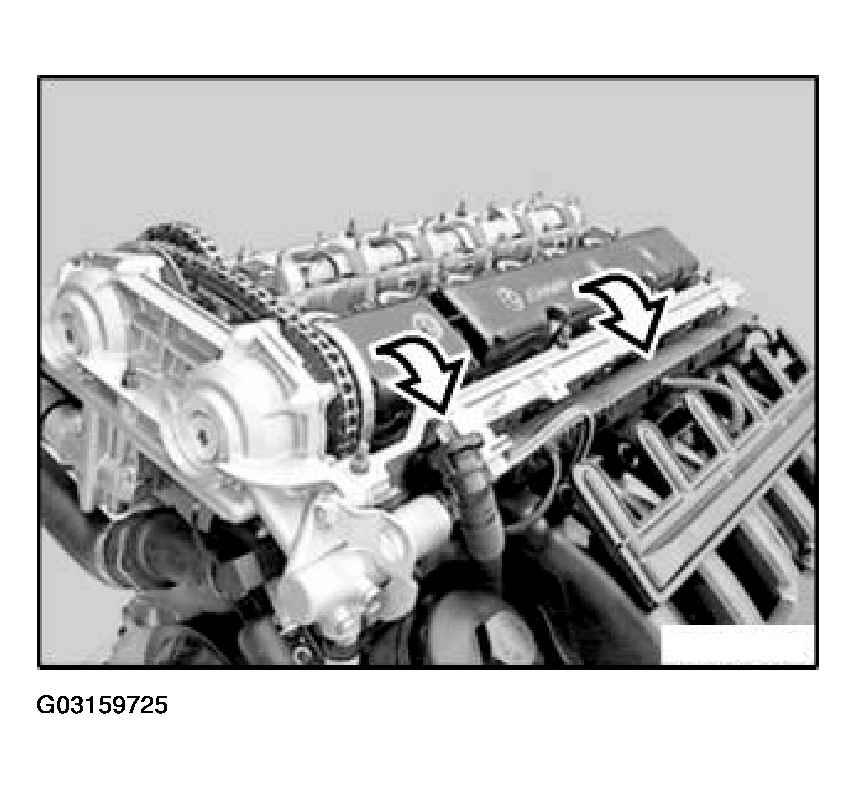

Detach cover for inlet camshaft.

Fig 1: Detaching Cover For Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

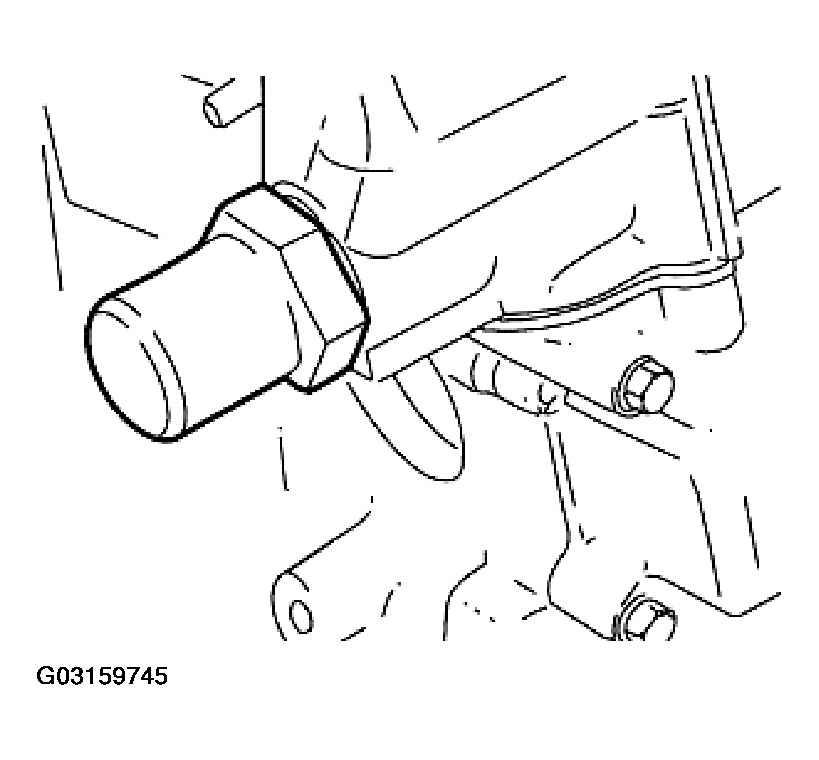

Remove cylinder for chain tensioning piston.

Fig 2: Removing Cylinder For Timing Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

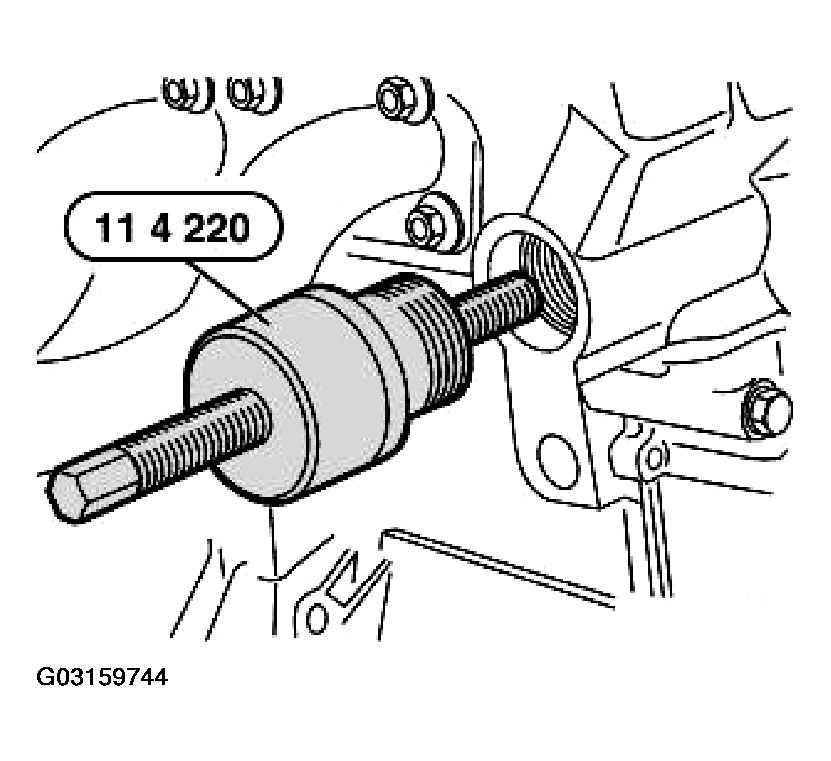

Install special tool 11 4 220.

Fig 3: Installing Timing Chain Tensioning Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Fit adjusting screw to bow cover.

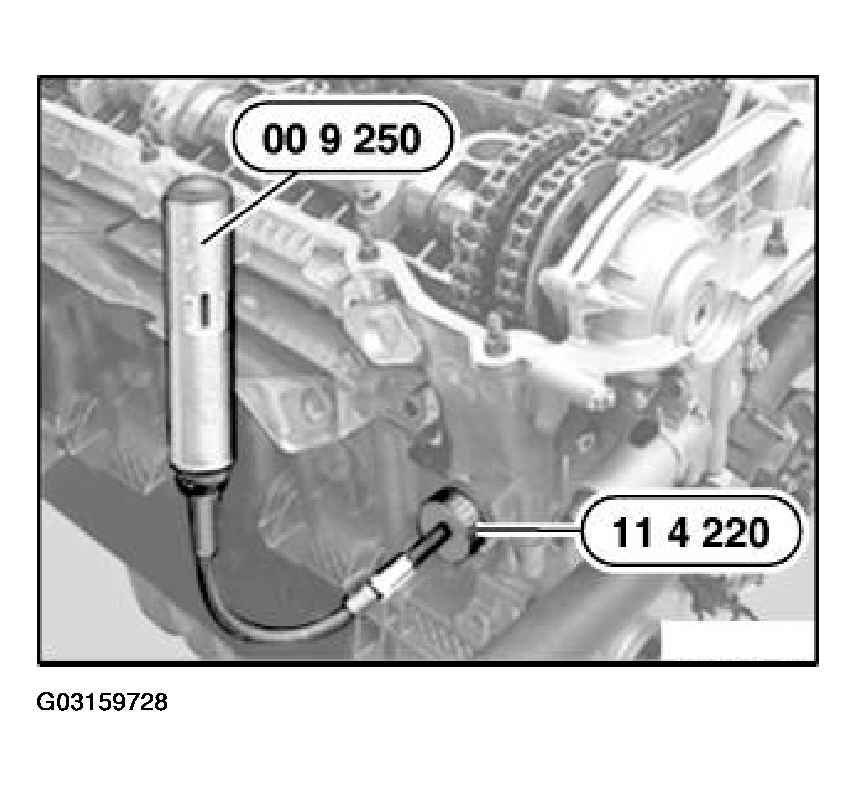

Preload tensioning rail with special tool 11 4 220 by rotating adjusting screw with special tool 00 9 250 or standard torque wrench to 0.7 Nm.

Fig 4: Preload Timing Belt Tensioning Rail

Courtesy of BMW OF NORTH AMERICA, INC.

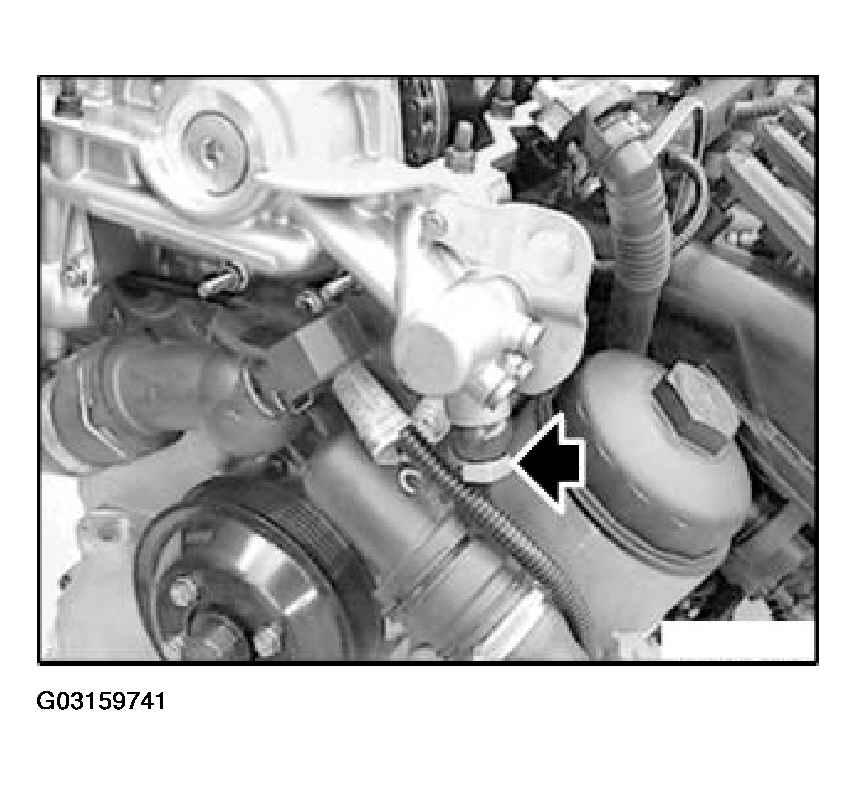

Unscrew oil pressure pipe.

Fig 5: Removing Oil Pressure Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

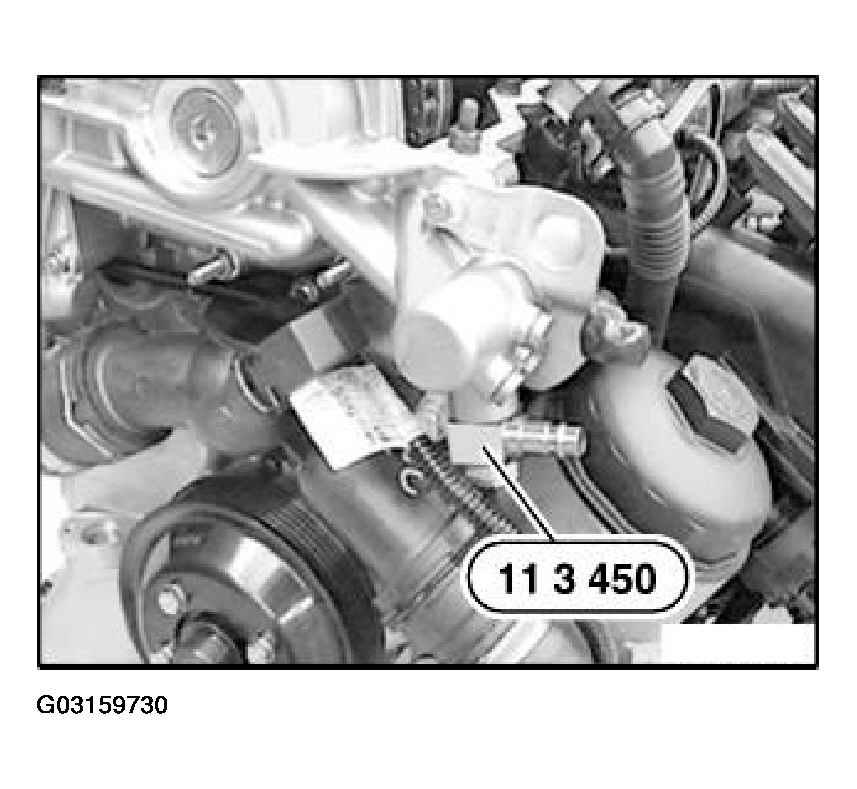

Mount special tool 11 3 450 with banjo bolt of oil pressure line.

Fig 6: Installing Special Tool With Oil Pressure Line Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Identifying VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

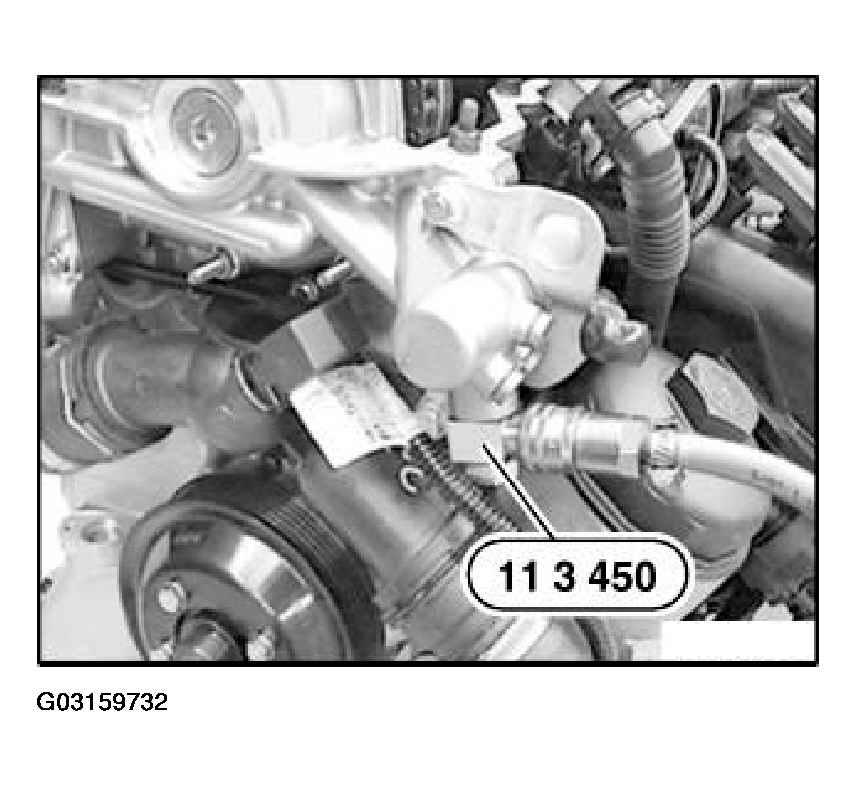

Connect compressed air (2 to 8 bar).

Fig 8: Connecting Compressed Air To Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

With compressed air supply connected, crank engine at least two revolutions in direction of rotation until cam tips on inlet and exhaust camshafts on 1st cylinder face each other.

Fig 9: Cranking Engine Twice Until Cam Tips Face Each Other

Courtesy of BMW OF NORTH AMERICA, INC.

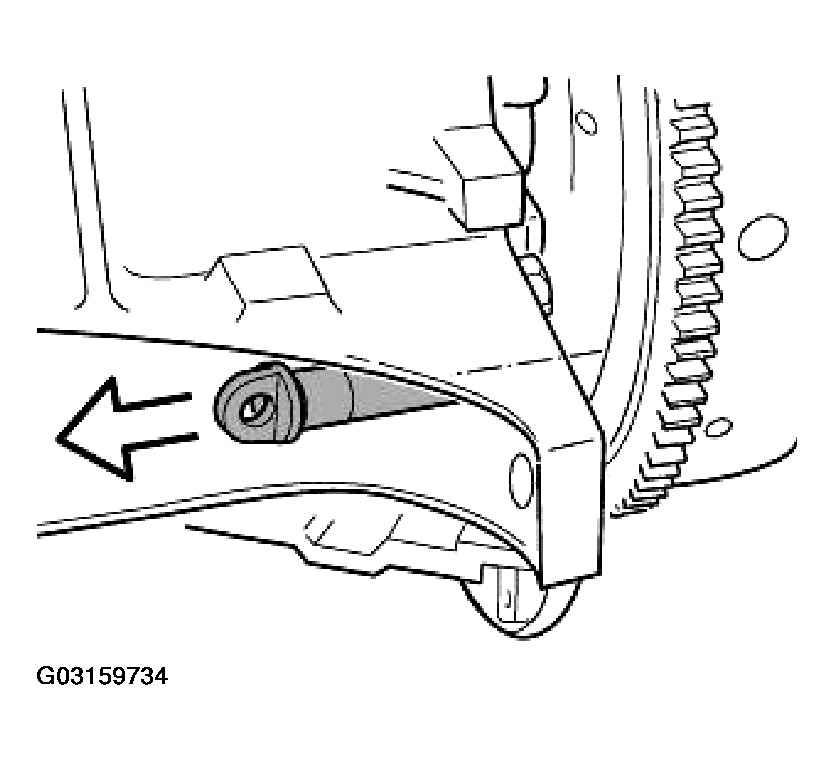

Pull dust guard out of the special tool bore.

Fig 10: Removing Dust Guard

Courtesy of BMW OF NORTH AMERICA, INC.

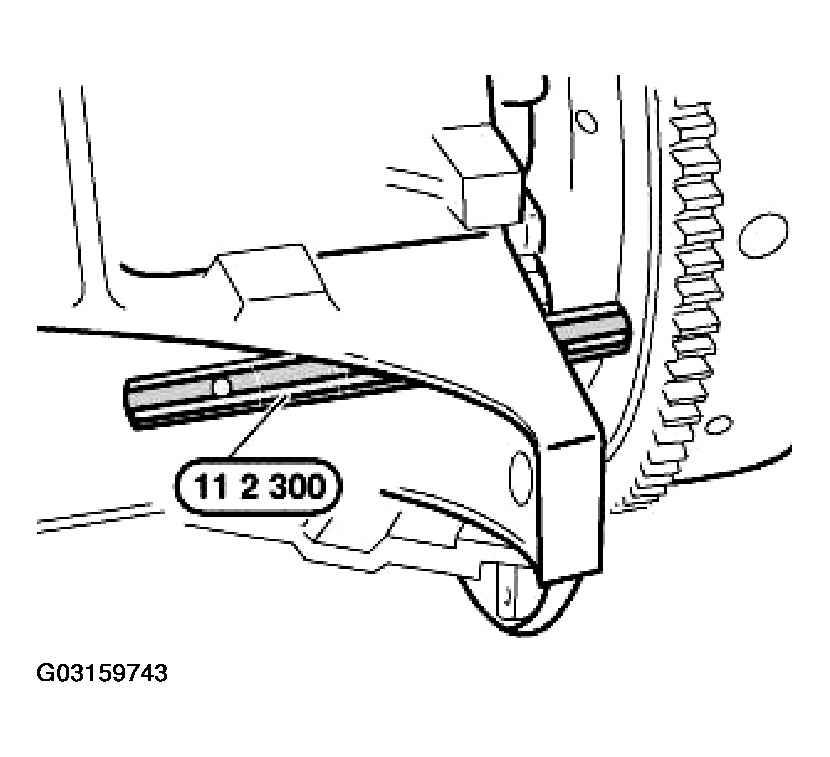

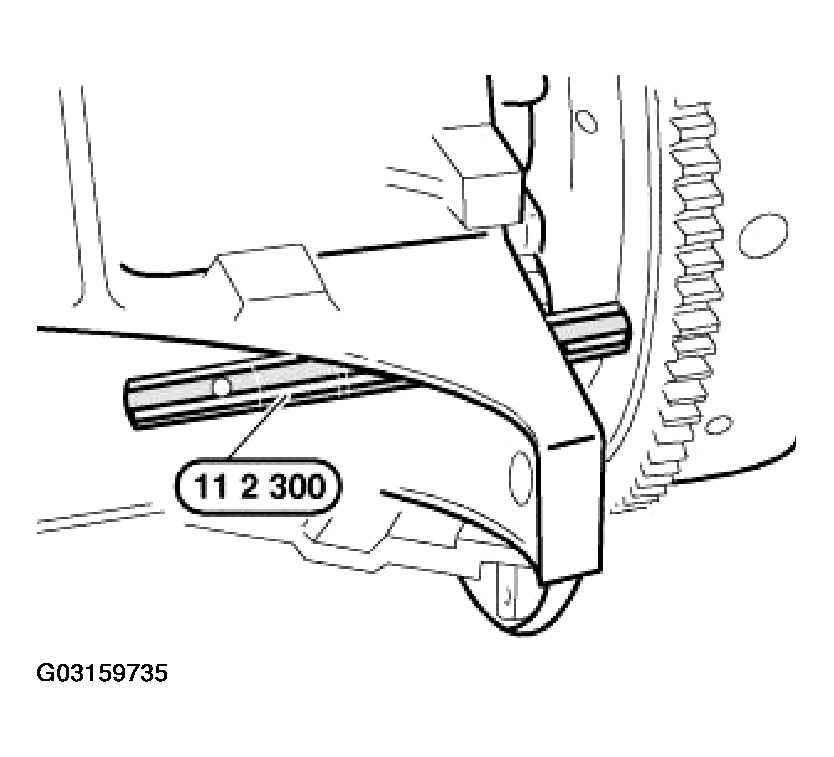

Secure crankshaft with special tool 11 2 300 in TDC firing position of 1st cylinder.

Fig 11: Install Flywheel Locking Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 2 300 before starting engine.

Automatic Transmissions Only:

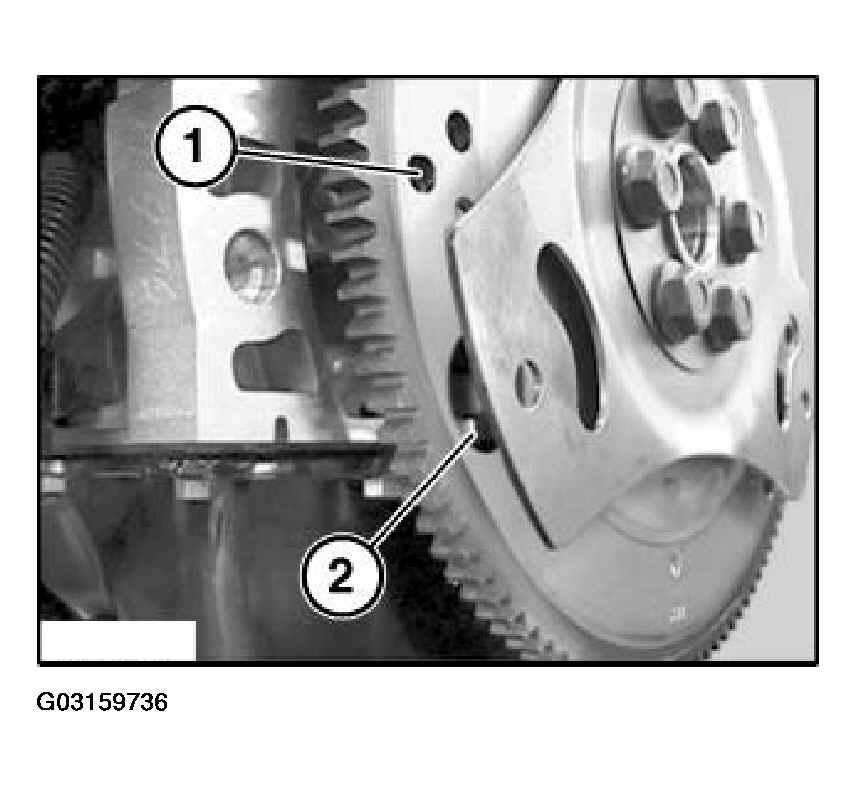

If special tool 11 2 300 is secured in the correct bore (1), the engine can no longer be cranked at the central bolt.

Fig 12: Identifying Special Tool Bore On Flex Plate

Courtesy of BMW OF NORTH AMERICA, INC.

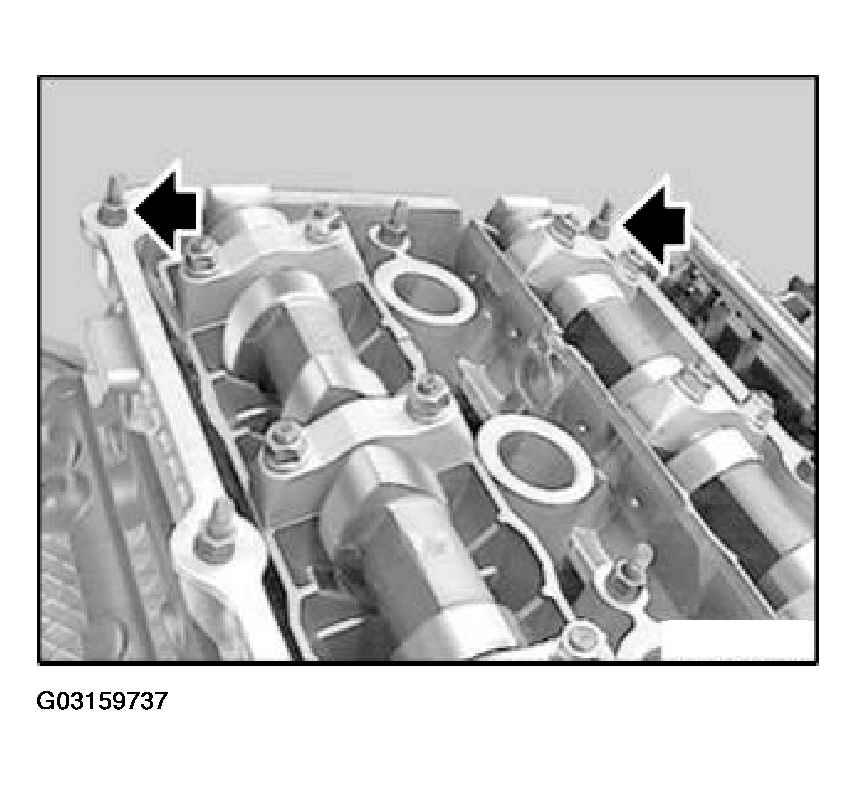

Unscrew studs.

Fig 13: Removing Studs From Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

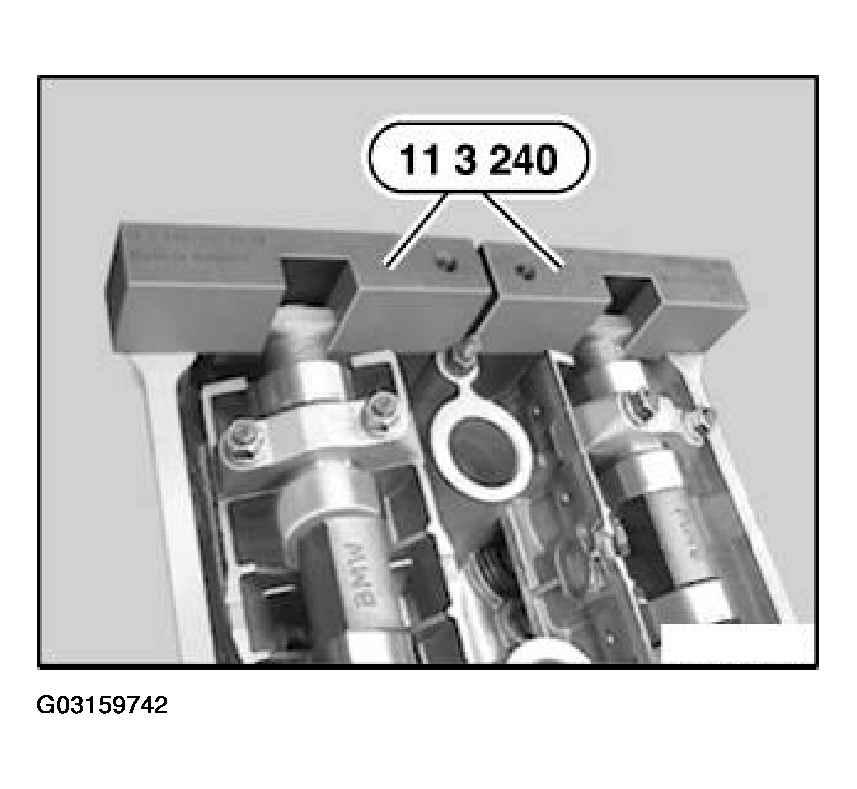

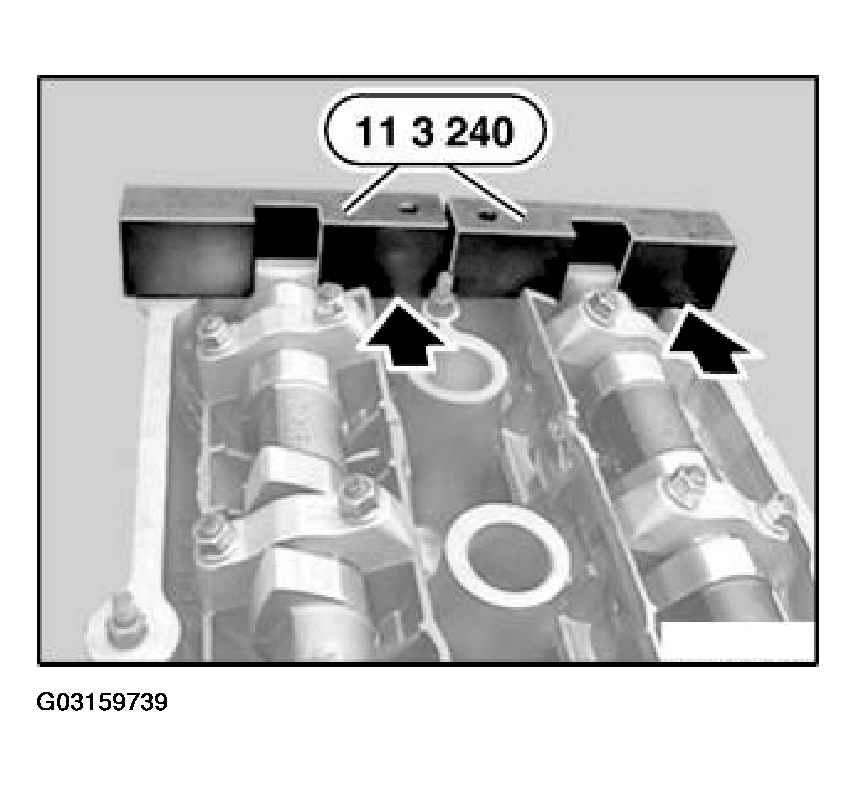

Place special tool 11 3 240 on camshafts.

Fig 14: Placing Special Tool 11 3 240 On Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

The timing must be reset if the special tool 11 3 240 protrudes to the exhaust side.

If necessary, adjust camshaft timing. Refer to 11 31 505 ADJUSTING CAMSHAFT TIMING (M52TU/M54/M56) .

Fig 15: Checking Camshaft Timing

Courtesy of BMW OF NORTH AMERICA, INC.

Detach compressed air connection.

Remove special tool 11 3 450.

Fig 16: Detaching Compressed Air Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Fit oil pressure line with new seals.

Tightening torque, refer to 11 36 2AZ in ENGINE MECHANICAL - TIGHTENING TORQUES - 530I (E39) .

Fig 17: Fitting Oil Pressure Line With New Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 3 240.

Fig 18: Removing Special Tool 11 3 240

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 2 300.

Fig 19: Removing Flywheel Locking Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Install dust guard from inspection bore.

Unfasten and remove special tool 11 4 220.

Fig 20: Removing Special Tool 11 4 220

Courtesy of BMW OF NORTH AMERICA, INC.

Install cylinder for chain tensioning piston. Refer to 11 31 090 REMOVING AND INSTALLING/REPLACING CHAIN TENSIONING PISTON (M52/M52TU/M54/M56) .

Fig 21: Installing Cylinder For Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
