Special Tools

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 BMW M5, 2002 BMW 540i, 2001 BMW M5, 2001 BMW 540i, and 2000 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Fixture (32 4 000)

Courtesy of BMW OF NORTH AMERICA, INC.

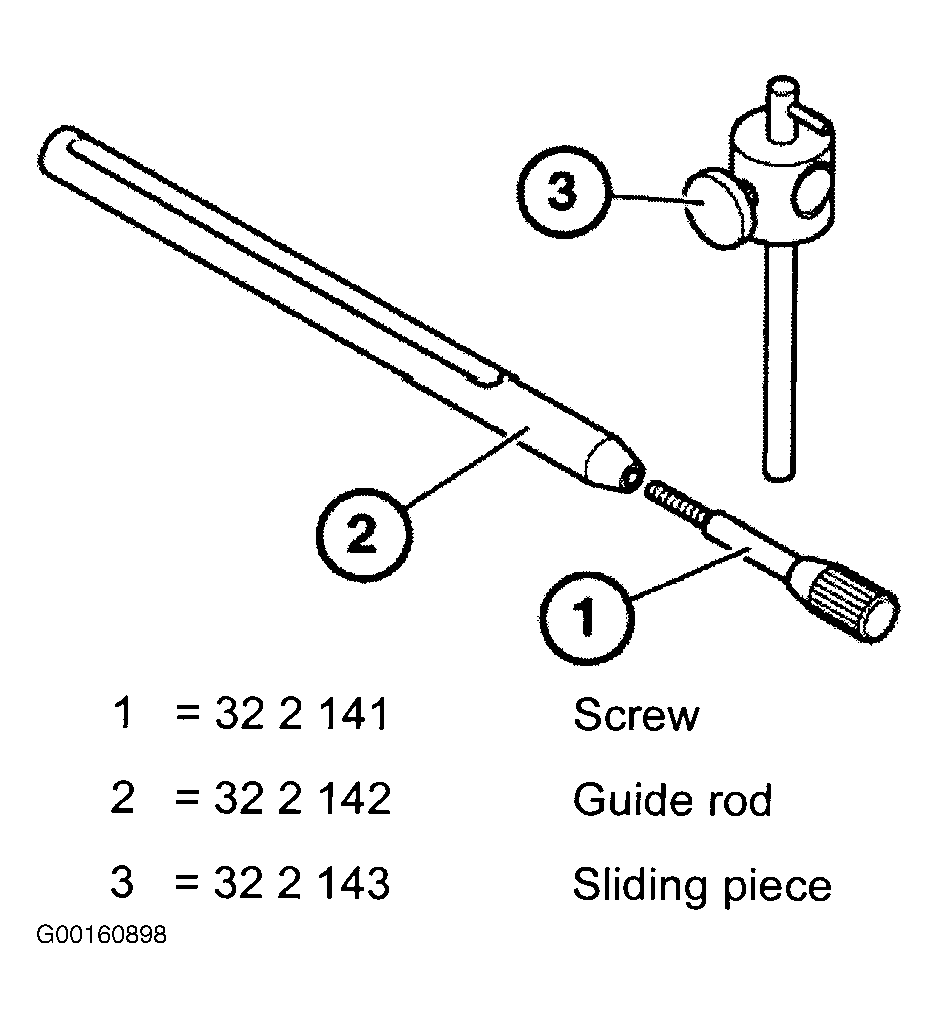

Fig 2: Identifying Gauge (32 2 140)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Precision Spring Balance (64 1 100)

Courtesy of BMW OF NORTH AMERICA, INC.

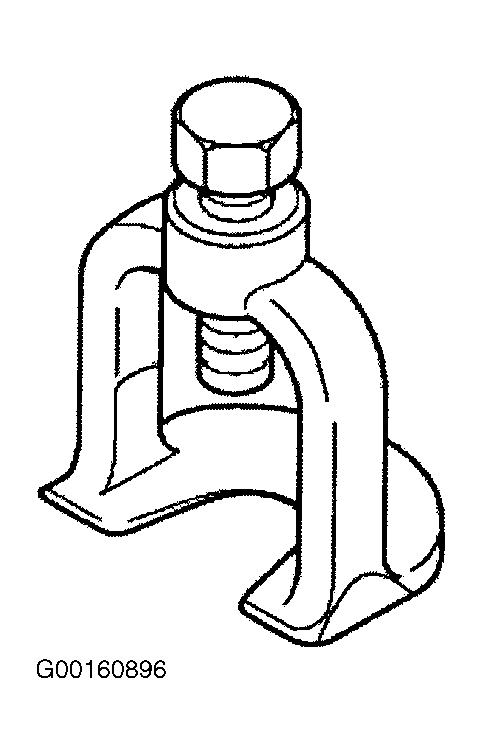

Fig 4: Identifying Removal Tool (32 1 190)

Courtesy of BMW OF NORTH AMERICA, INC.
