Removal & Installation (540i)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 BMW M5, 2002 BMW 540i, 2001 BMW M5, 2001 BMW 540i, and 2000 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Draw hydraulic fluid out of tank. Do not re-use.
  2. Remove splash guard.
  3. Remove v-belt.
  4. Remove lines on the vane pump. Line (1) goes to steering unit and line (2) to the container. See Fig 1.
  5. Unfasten nut (3). See Fig 2.
  6. Unfasten mount on oil pan and remove pump. See Fig 3.
  7. To install, reverse removal procedure. Tighten oil pan mounting to specification. See TORQUE SPECIFICATIONS .
  8. Secure support (1) to pump. See Fig 2. Tighten to specification. See TORQUE SPECIFICATIONS .
  9. Install nut (2) hand tight against engine support. Tighten nut (3). Tighten both to specification. See TORQUE SPECIFICATIONS .
  10. Replace seals and tighten lines to specification. See TORQUE SPECIFICATIONS .
  11. Bleed hydraulic system. See BLEEDING POWER STEERING SYSTEM .

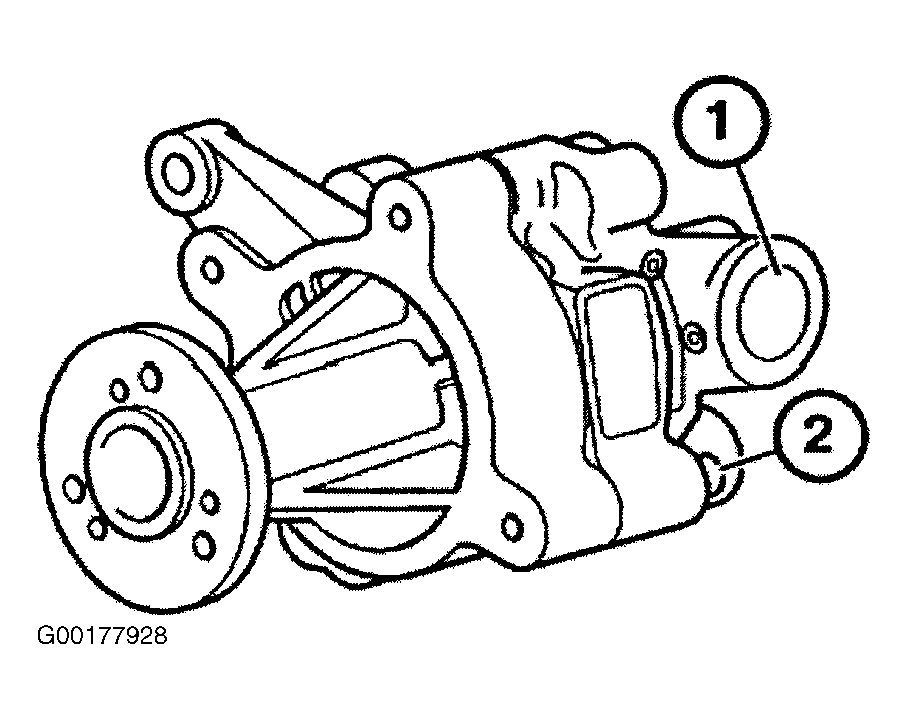

Fig 1: Locating Vane Pump Lines
G00177928Courtesy of BMW OF NORTH AMERICA, INC.

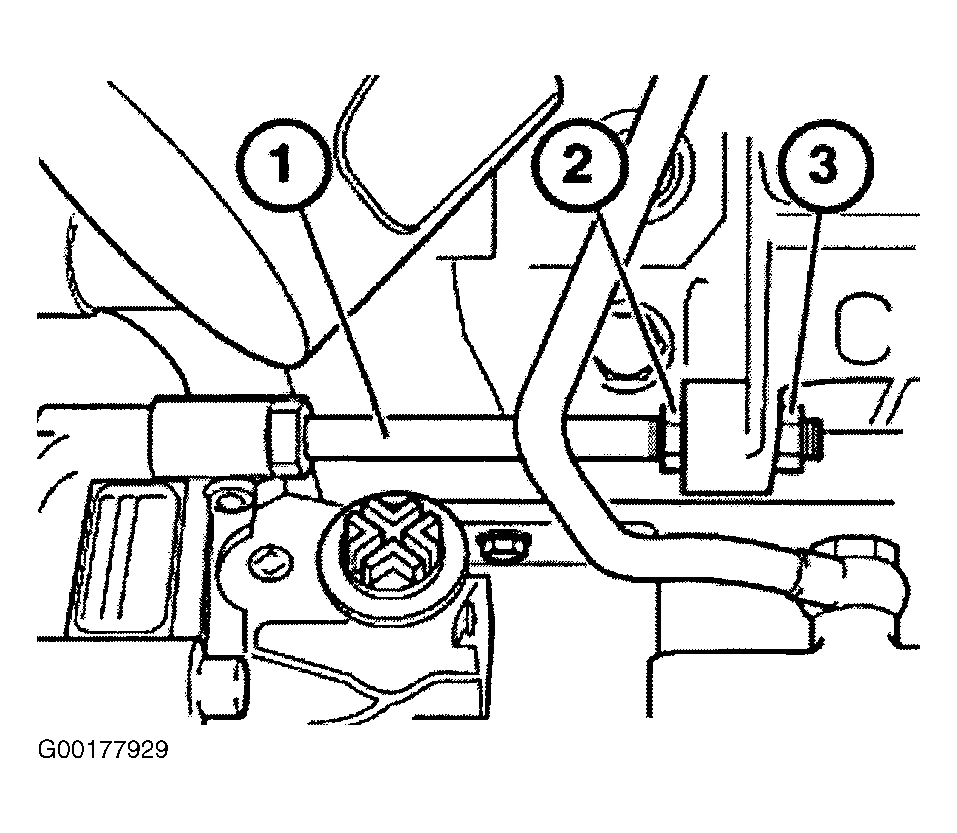

Fig 2: Locating Support To Vane Pump Screws
G00177929Courtesy of BMW OF NORTH AMERICA, INC.

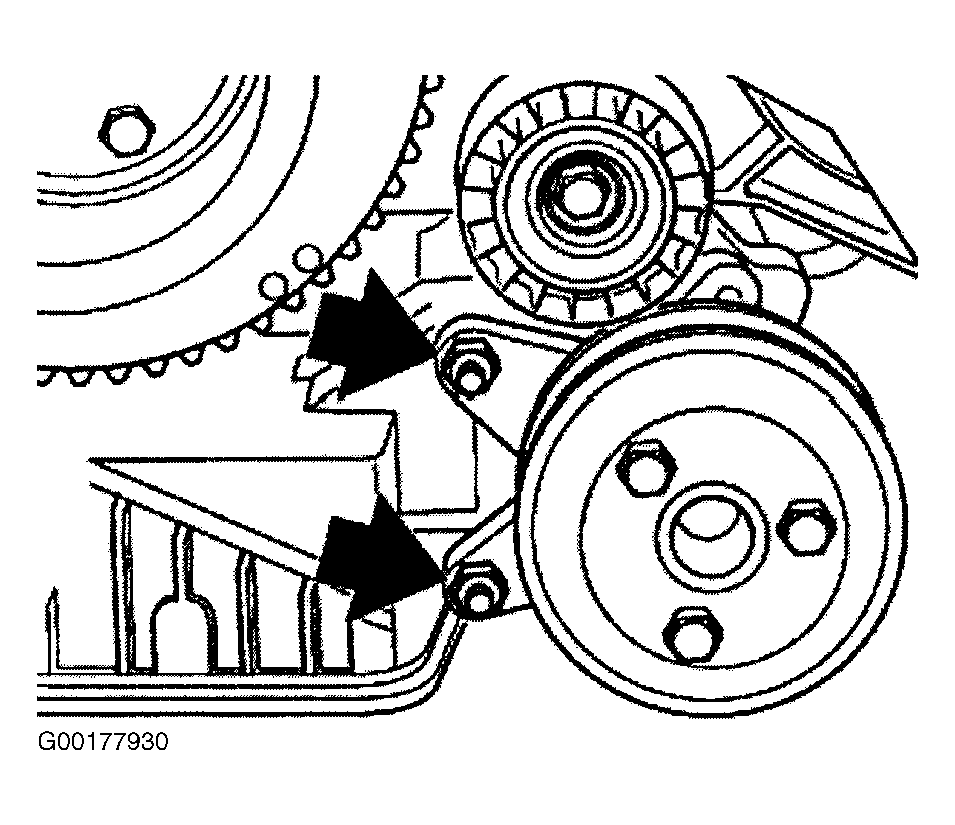

Fig 3: Removing Vane Pump
G00177930Courtesy of BMW OF NORTH AMERICA, INC.
