Power Steering Gear: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 BMW M5, 2002 BMW 540i, 2001 BMW M5, 2001 BMW 540i, and 2000 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Observe all waste disposal regulations.
  1. Draw hydraulic fluid out of container and do not re-use.
  2. Remove steering wheel. See STEERING COLUMNS - E38 & E39 article.
  3. Unscrew and remove splash guard.
  4. Remove heat shield.
  5. Remove hydraulic lines. See Fig 1.
  6. Unfasten nut. Press tie rod off pitman arm with special tool (32 1 190). See Fig 2.
  7. Remove pitman arm. Before untightening clamping screw (1), mark position of sliding pitman arm on the segment shaft. See Fig 3.
  8. Unscrew screw and slide universal joint off steering gear. See Fig 4.
  9. Remove steering gear from front axle support and, if necessary, separate plug connection to Servotronic unit. See Fig 5.
Fig 1: Removing Hydraulic Lines
G00177925Courtesy of BMW OF NORTH AMERICA, INC.

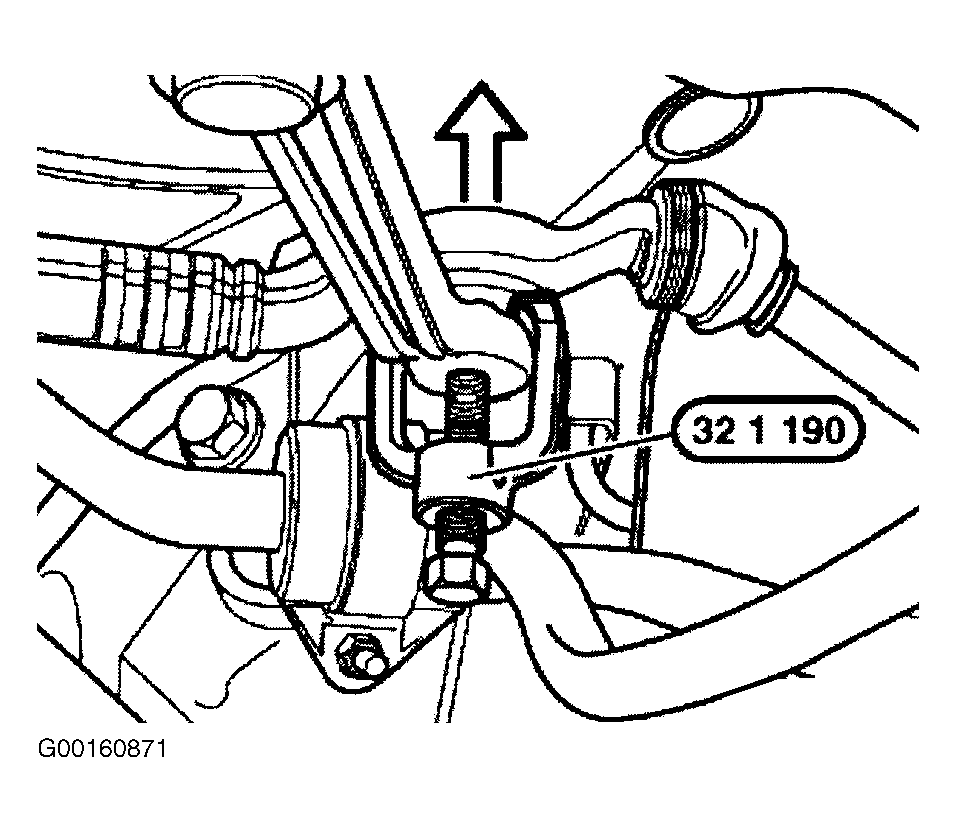

Fig 2: Pressing Off Tie Rod
G00160871Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Removing Pitman Arm
G00177926Courtesy of BMW OF NORTH AMERICA, INC.
Fig 4: Locating Universal Joint Screw
G00177927Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Identifying Steering Gear Components
G00160874Courtesy of BMW OF NORTH AMERICA, INC.
