Checking For Leaks

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 BMW M5, 2002 BMW 540i, 2001 BMW M5, 2001 BMW 540i, and 2000 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Check all visible connections, hoses, lines and steering gear for traces of fluid. See Fig 1.

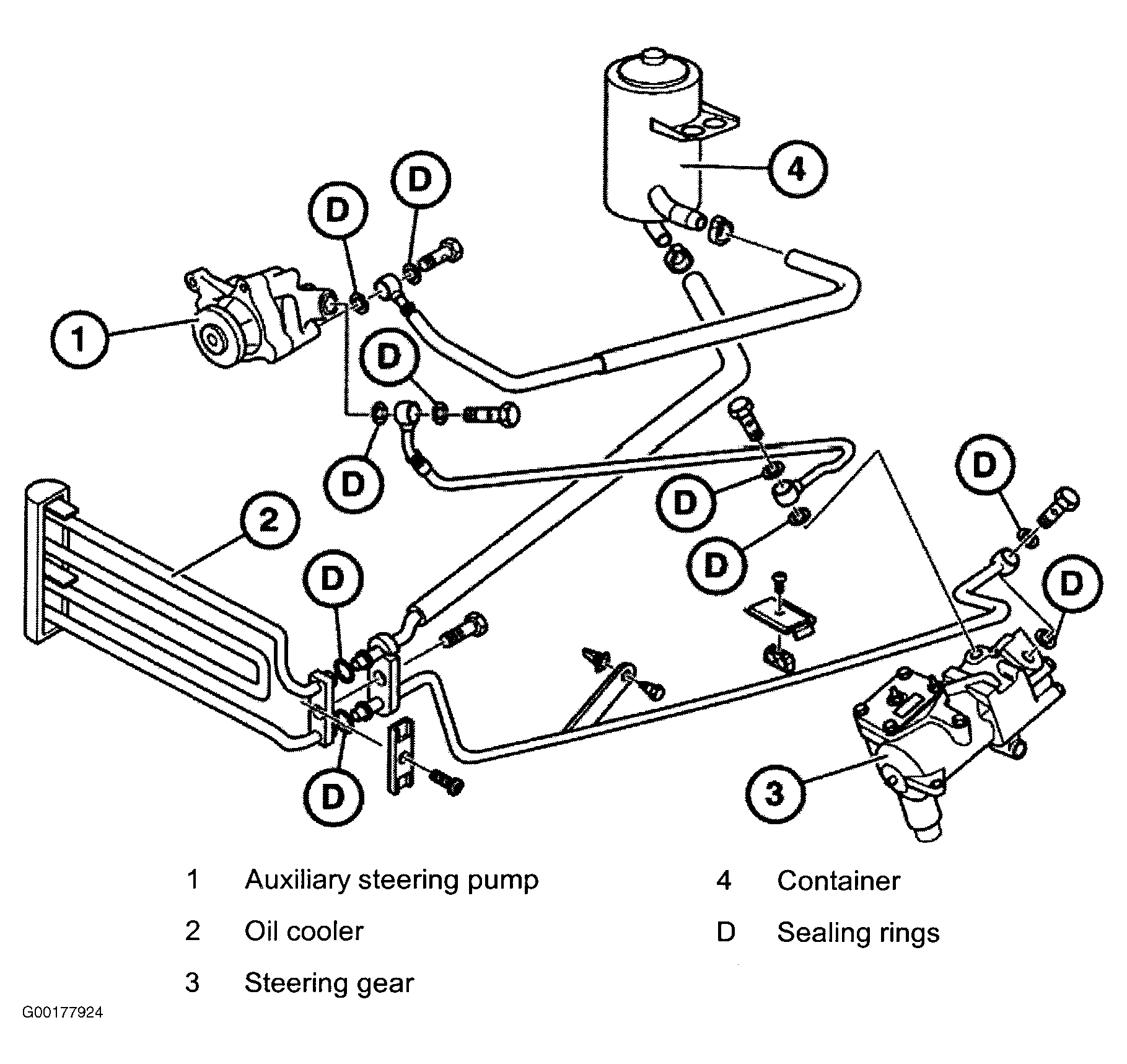

Fig 1: Locating Power Steering Unit Components & Lines
G00177924Courtesy of BMW OF NORTH AMERICA, INC.
