00 11 259 Replenishing/changing rear differential oil

Failure to comply with this instruction will result in serious damage to the rear differential!

Replenishing Rear Differential Oil:

Undo oil filler plug (1).

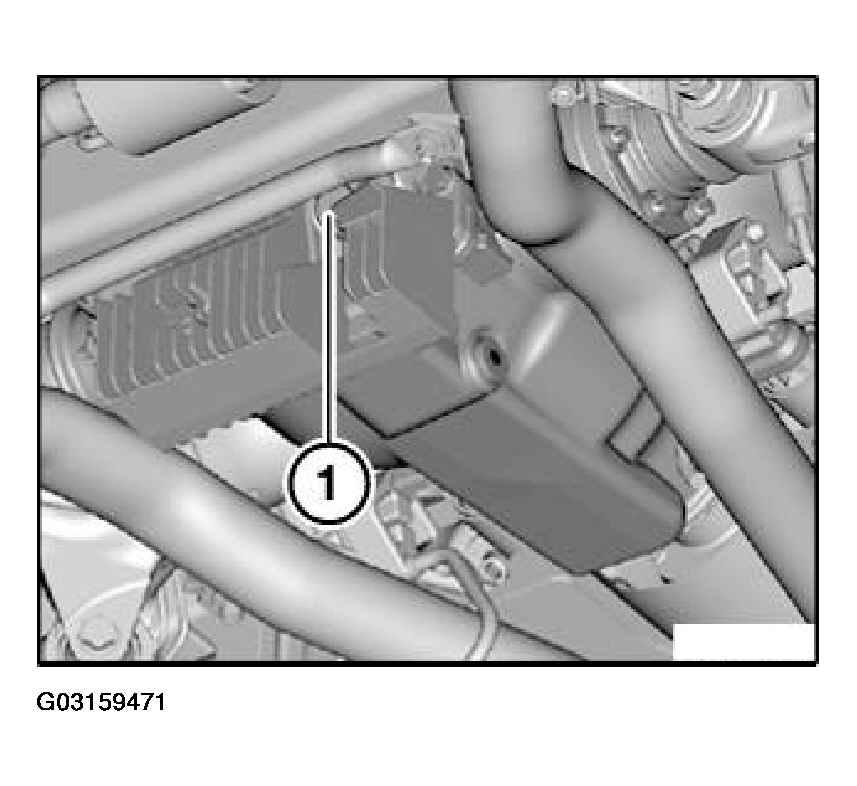

Fig 1: Locating Rear Differential Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Check rear differential oil level.

If necessary, pour in rear differential oil up to lower edge of opening for oil filler plug (1).

Installation:

1. Oil filler plug with sealing ring:

   Replace sealing ring (1).

   Tightening torque - 65 Nm.

2. Oil filler plug with O-ring:

   Replace oil filler plug (2).

   Tightening torque - 60 Nm.

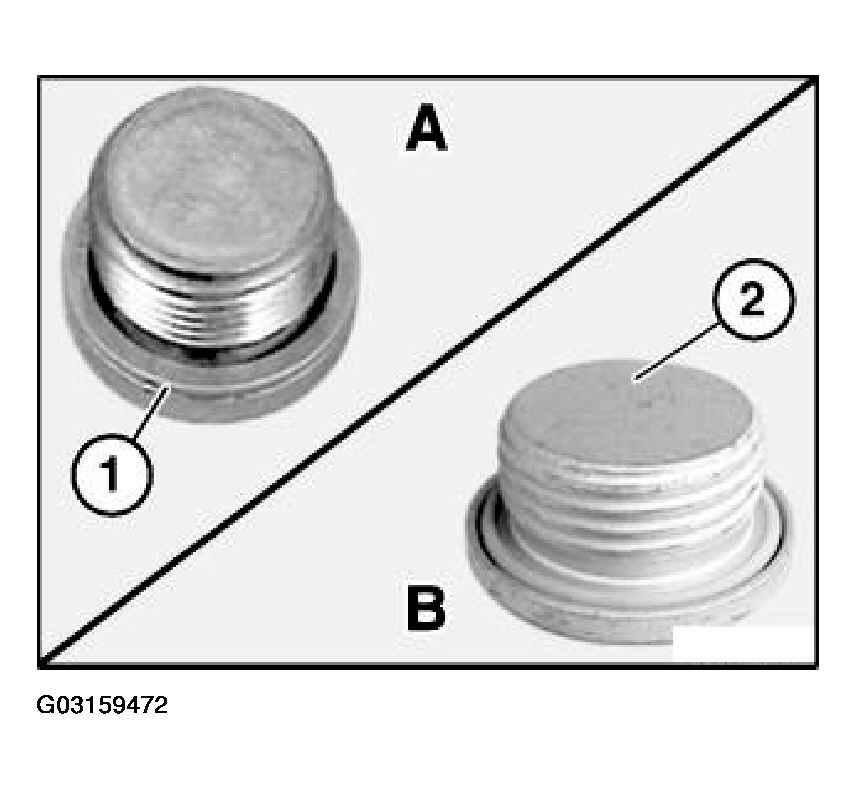

Fig 2: Identifying Sealing Ring And Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Changing Rear Differential Oil:

Only change oil when rear differential is at normal operating temperature.

Recycling:

Catch and dispose of emerging differential oil.

Place oil collecting apparatus underneath.

Remove oil drain plug (1).

Drain and dispose of differential oil.

Undo oil filler plug (2).

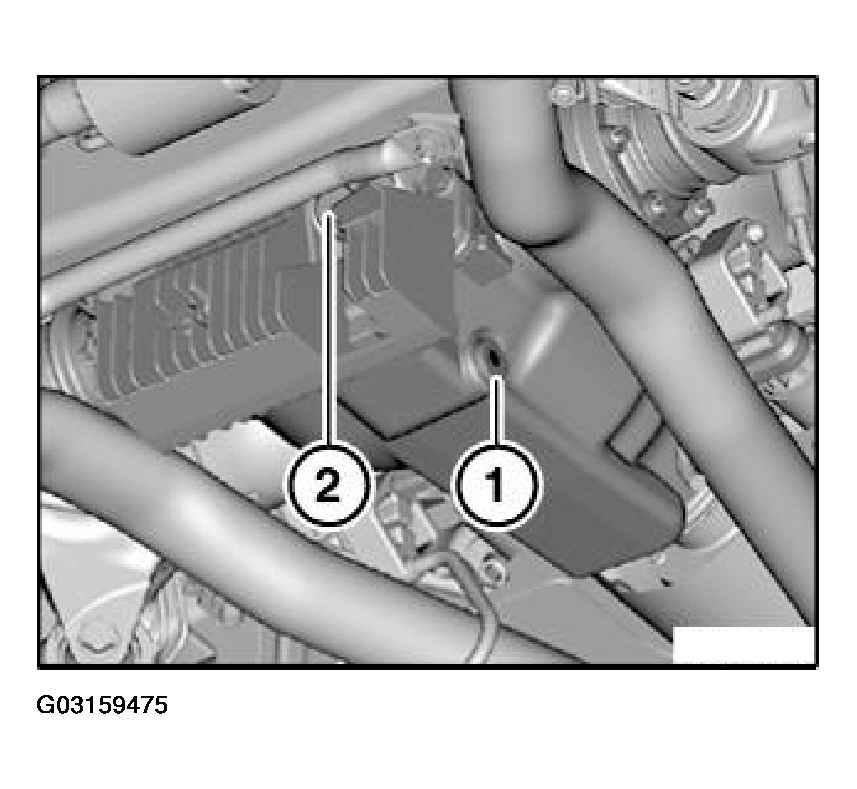

Fig 3: Identifying Rear Differential Oil Drain Plug And Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Oil drain plug with sealing ring:

   Replace sealing ring (1).

   Tightening torque - 65 Nm.

2. Oil drain plug with O-ring:

   Replace oil drain plug (2).

   Tightening torque - 60 Nm.

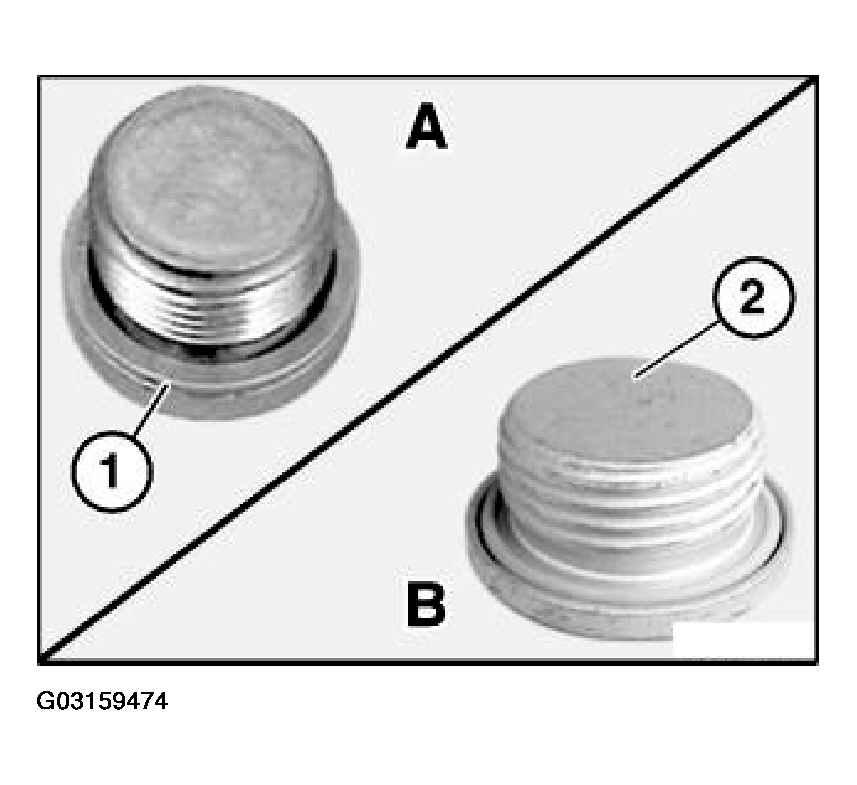

Fig 4: Identifying Sealing Ring And Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pour in rear differential oil up to lower edge of opening for oil filler plug (1).

Fig 5: Installing Differential Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Oil filler plug with sealing ring:

   Replace sealing ring (1).

   Tightening torque - 65 Nm.

2. Oil filler plug with O-ring:

   Tightening torque - 60 Nm.

Replace oil filler plug (2).

Tightening torque - 65 Nm.

Fig 6: Identifying Sealing Ring And Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.
