00 00... Changing differential oil

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Change oil with rear axle differential at normal operating temperature.

Final drive oil, refer to 1.0 GENERAL INFORMATION ON FINAL DRIVE OIL .

For filling quantity, refer to FINAL DRIVE .

Unscrew drain plug (2), clean and reinstall.

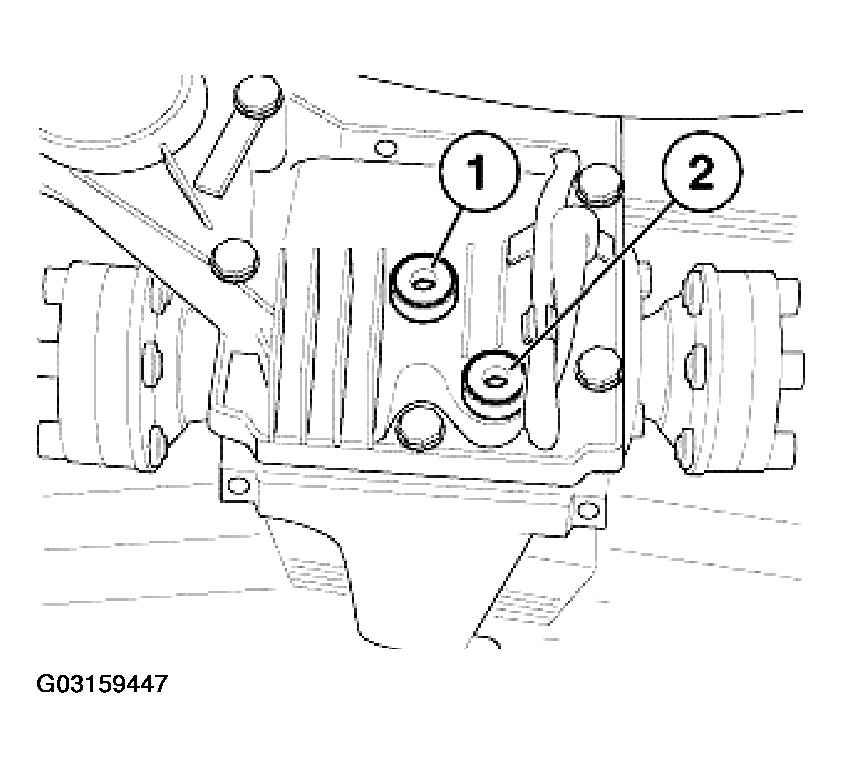

Fig 1: Identifying Final Drive Filler & Drain Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the filler screw plug (1).

Pour in differential oil until overflowing. Install filler screw plug (1).

Installation:

Tightening Torque, 45 N.m.
