Steering Gear: Removal

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front wheels.
  2. Remove steering wheel. See appropriate STEERING COLUMNS article.

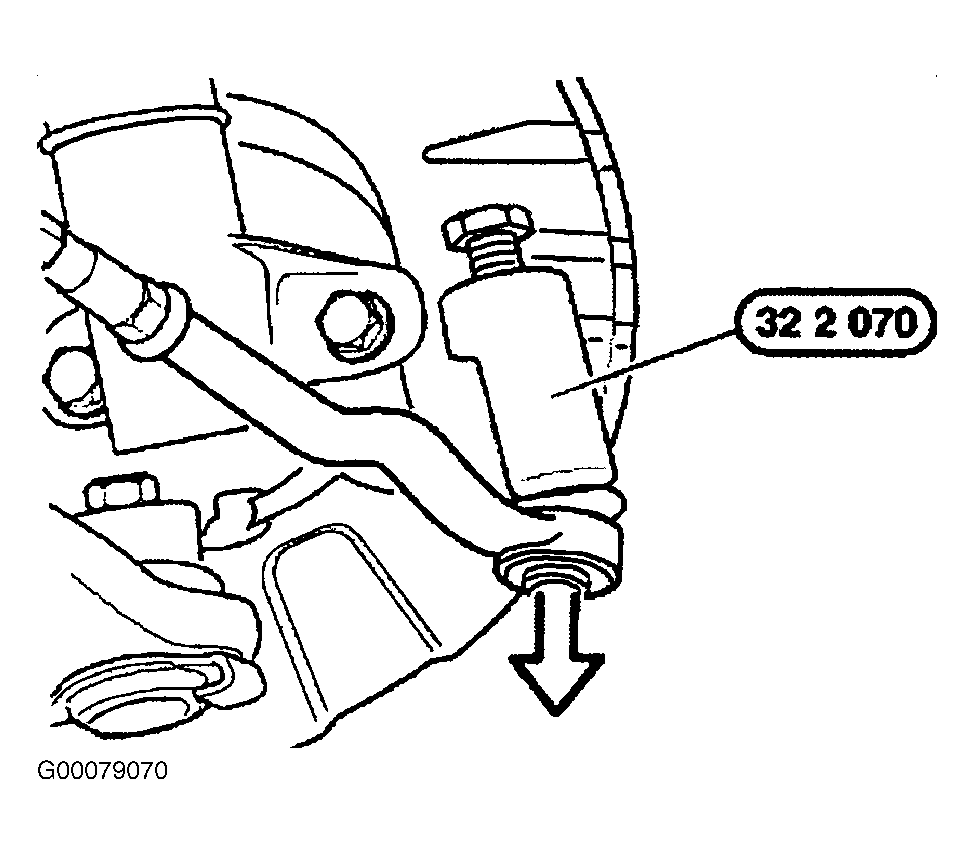

  3. Remove left and right tie rod with special tool (32 2 070). See Figure.
  4. Remove clamping screw and pull universal joint off steering gear. See Figure.
  5. Unscrew bolts and take off steering gear in forward direction. See Fig 1.

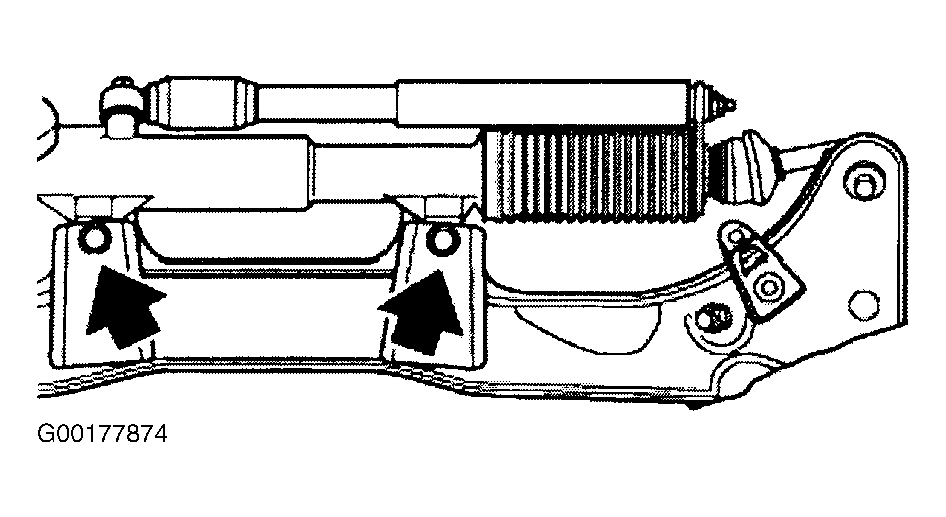

Fig 1: Removing Steering Gear
G00177874Courtesy of BMW OF NORTH AMERICA, INC.
