Steering Gear Bellows: Removal

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

On vehicles with steering damper, unbend lockplate with pliers (never with hammer) in order to avoid damaging rack and bearing. Insert rack as far as possible. Unscrew tie rod using special tool (32 2 110). See Fig 1.
On vehicles with steering damper, remove damper holder. Loosen both clamping straps and remove sleeve.
On vehicles without steering damper, loosen clamping straps and pull off bellows. See Fig 2.
On vehicles without steering damper, unbend lockplate with pliers (never with hammer) in order to avoid damaging rack and bearing. Insert rack as far as possible. Unscrew tie rod using special tool (32 2 110). See Fig 3.

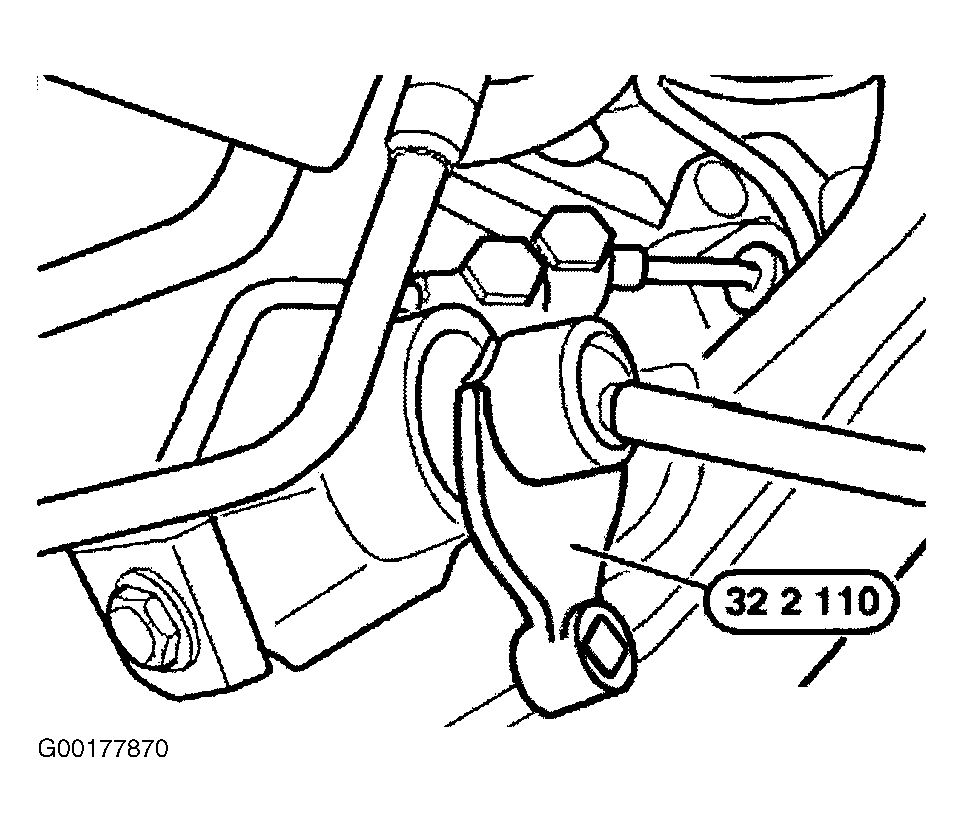

Fig 1: Unscrewing Tie Rod

Courtesy of BMW OF NORTH AMERICA, INC.

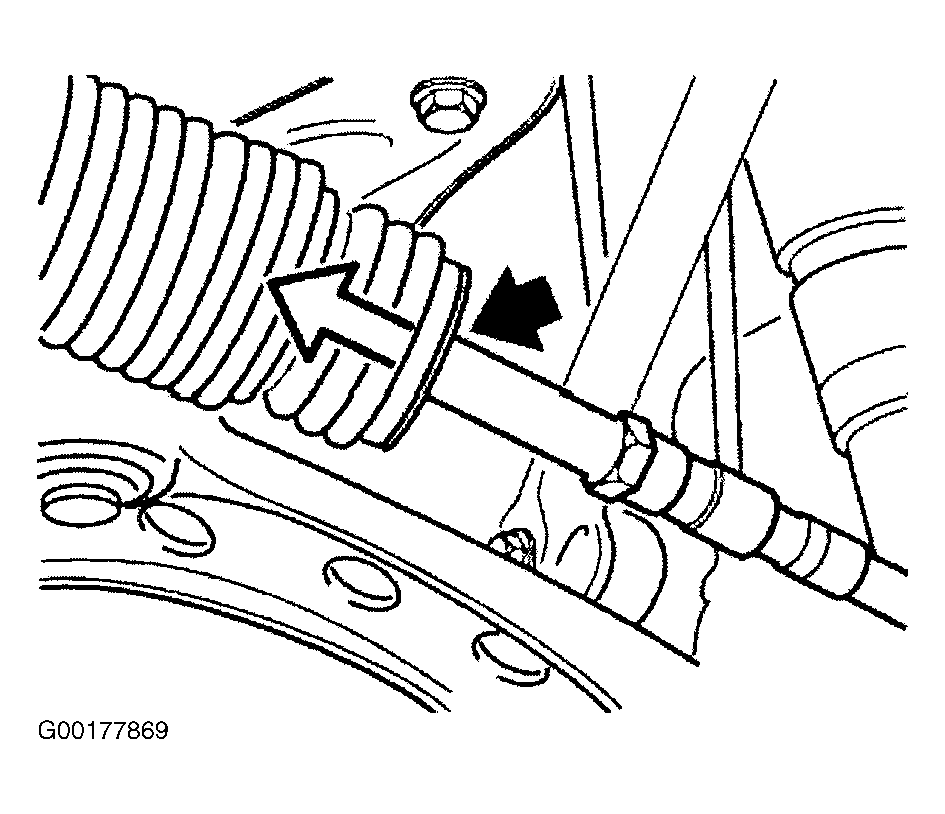

Fig 2: Pulling Off Bellows

Courtesy of BMW OF NORTH AMERICA, INC.

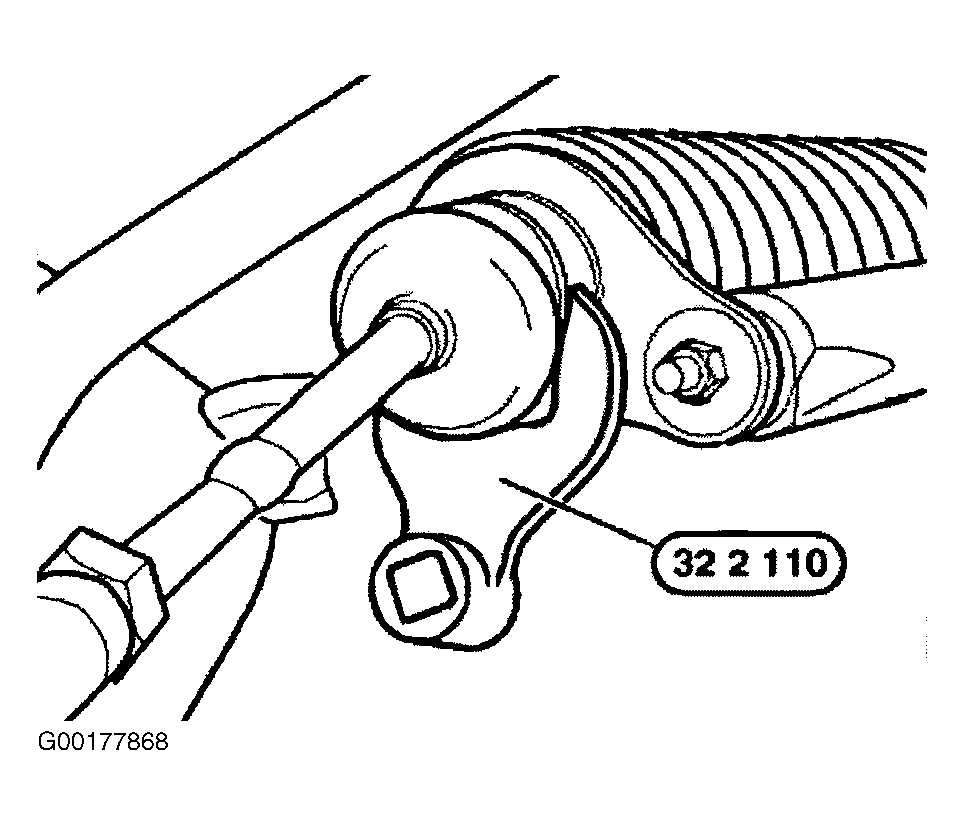

Fig 3: Unscrewing Tie Rod

Courtesy of BMW OF NORTH AMERICA, INC.
