Steering Gear Bellows: Installation

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

On vehicles with steering damper, mount new sleeve with new clamping straps. Replace lockplate. Turning lock (1) must engage in groove (2) of damper holder. See Fig 1. Bend lockplate with pliers and tighten to specification. See TORQUE SPECIFICATIONS .
On vehicles without steering damper, replace lockplate (A or B). If lockplate (B) (with spacer to limit steering angle) is installed, new lockplate must also be fitted with a spacer. See Fig 2.
On vehicles without steering damper, turning lock (1) must engage in groove (2) of rack. See Fig 3. Tighten to specification. See TORQUE SPECIFICATIONS .
On vehicles without steering damper, bend lockplate with pliers.

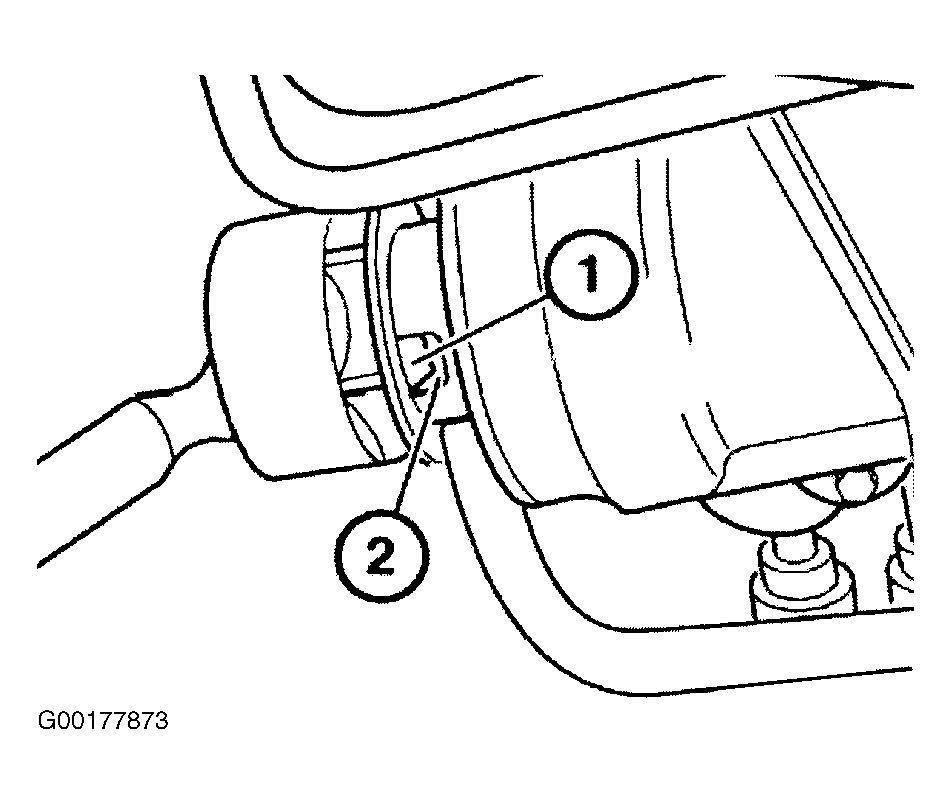

Fig 1: Replacing Lockplate

Courtesy of BMW OF NORTH AMERICA, INC.

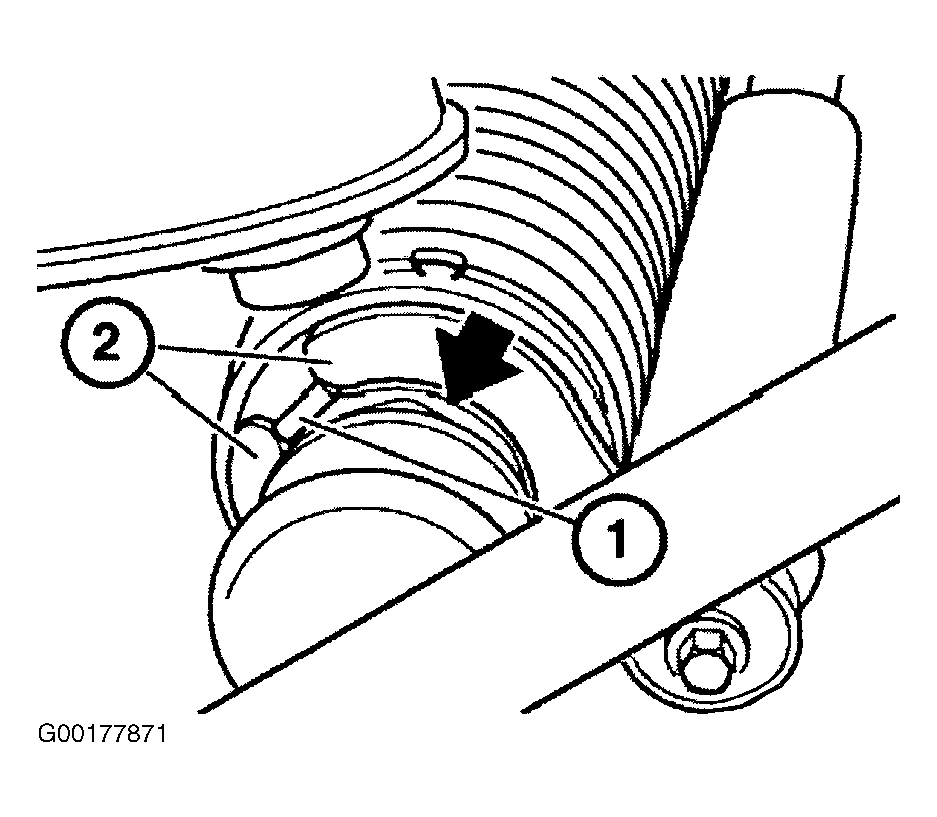

Fig 2: Replacing Lockplate

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Engaging Turning Lock

Courtesy of BMW OF NORTH AMERICA, INC.
