Power Steering Gear: Removal

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Observe all waste disposal regulations.
  1. Draw hydraulic fluid out of tank and do not re-use.
  2. Remove front wheels.
  3. Remove steering wheel.
  4. Remove left and right tie rod with special tool (32 2 070). See Fig 1.
  5. Disconnect hose on tank. See Fig 2.
  6. Unscrew hollow union bolt. See Fig 3.
  7. Remove bolt and separate universal joint from steering gear. See Fig 4.
  8. Unscrew bolts and take off steering gear in forward direction. See Fig 5.
Fig 1: Removing Tie-Rod End
G00079070Courtesy of BMW OF NORTH AMERICA, INC.

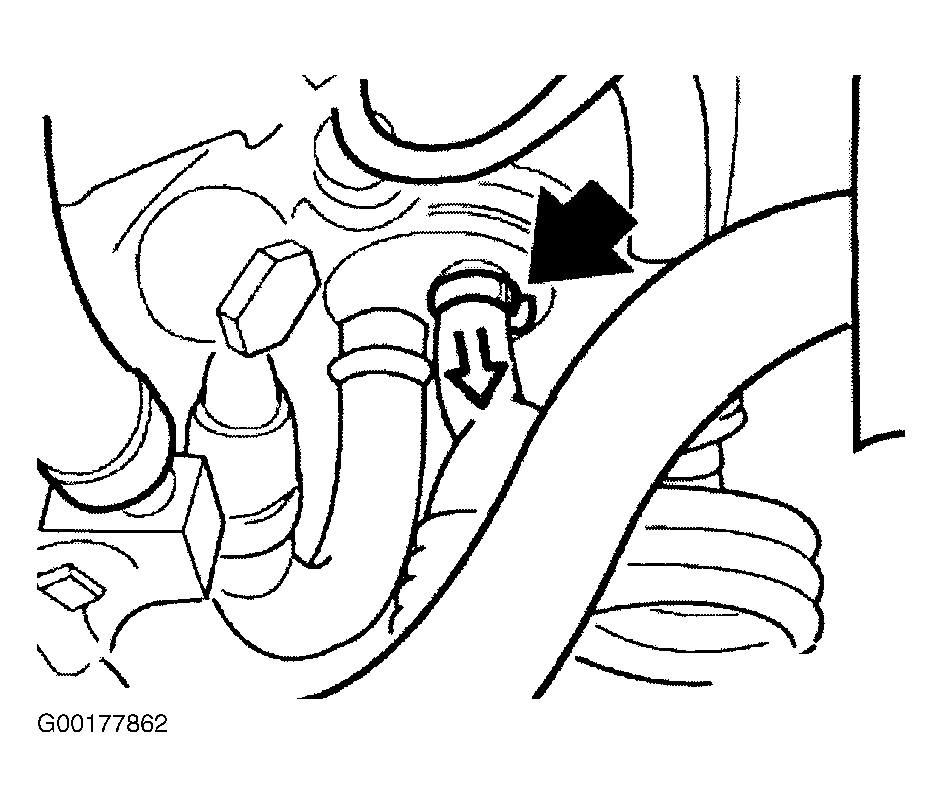

Fig 2: Disconnecting Hose On Tank
G00177862Courtesy of BMW OF NORTH AMERICA, INC.

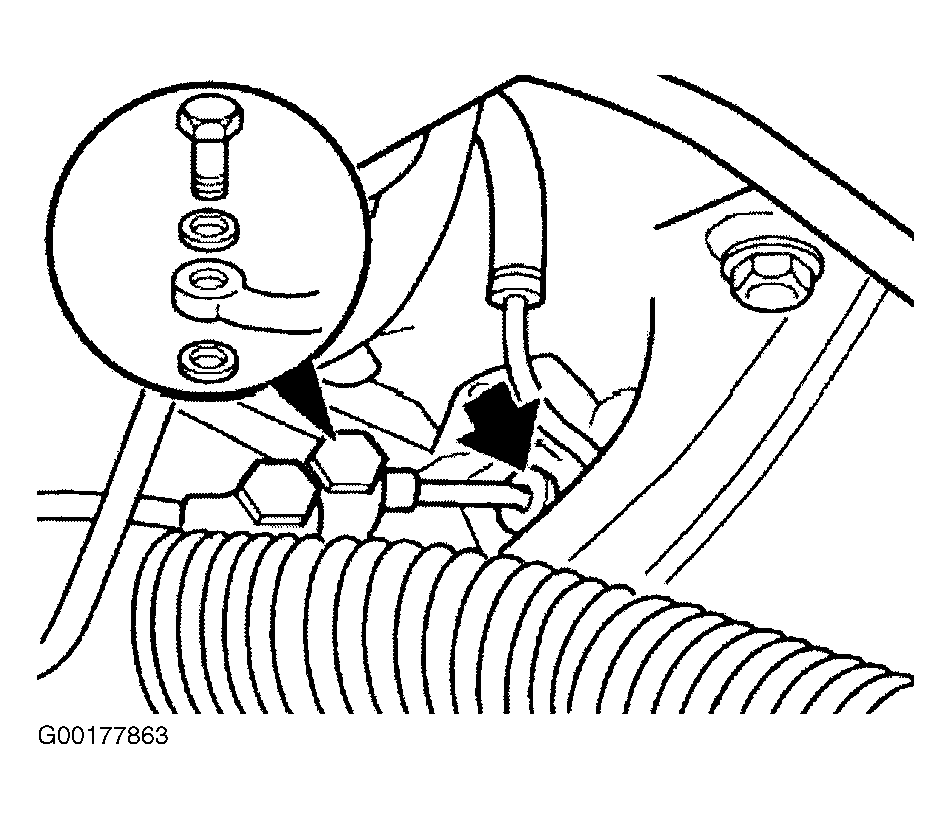

Fig 3: Removing Hollow Union Bolt
G00177863Courtesy of BMW OF NORTH AMERICA, INC.
Fig 4: Separating Universal Joint From Steering Gear
G00177864Courtesy of BMW OF NORTH AMERICA, INC.

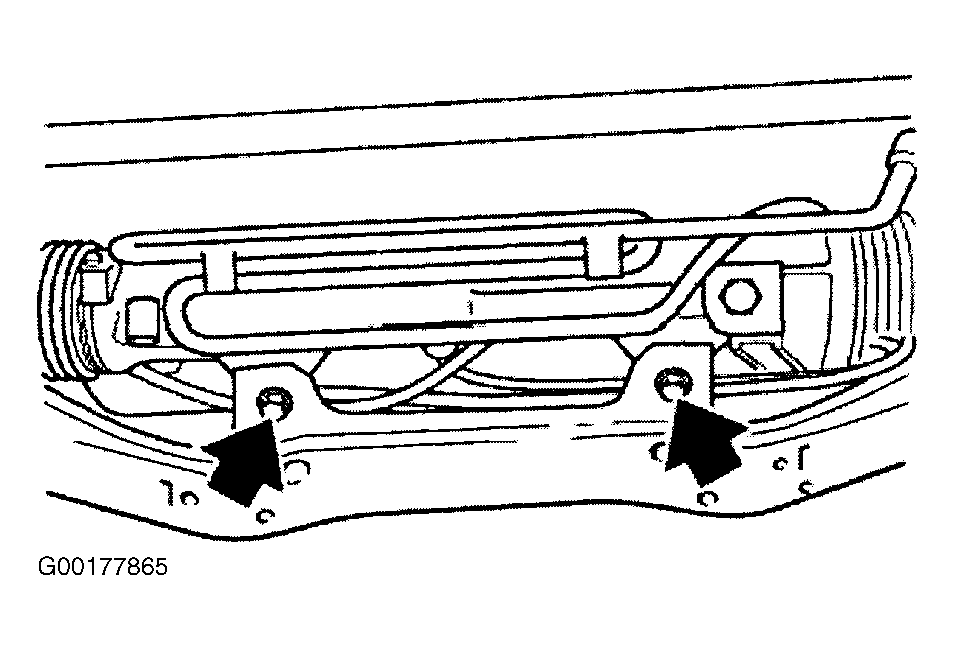

Fig 5: Removing Steering Gear
G00177865Courtesy of BMW OF NORTH AMERICA, INC.
