Vane Pump (ZF): Disassembly

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Remove pump. On M52 and M54 engines see POWER STEERING VANE PUMP (M52/M54 ENGINE) under REMOVAL & INSTALLATION. On other engines, procedure is not available from manufacturer.
Remove pulley.
Mark bracket on pump housing. Unscrew bolts and take off body. See Fig 1.
Remove face plate (3). See Fig 2.
Press rotor (4) on shaft (5) in downward direction. Remove circlip (6) and pull shaft out of body. Remove rotor (4). See Fig 3.
Clean all parts thoroughly.

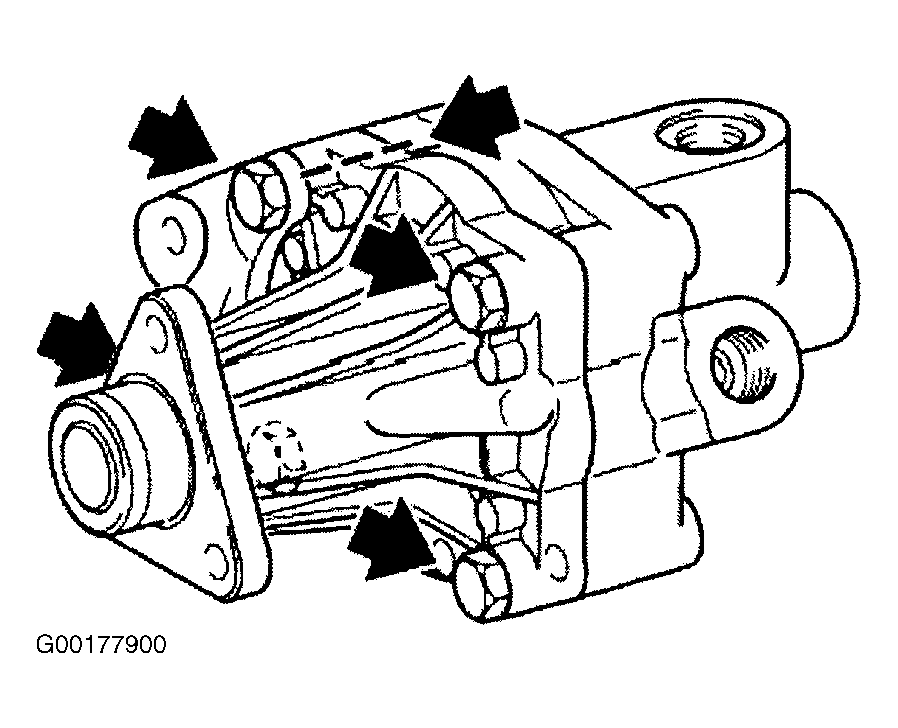

Fig 1: Taking Off Pump Body

Courtesy of BMW OF NORTH AMERICA, INC.

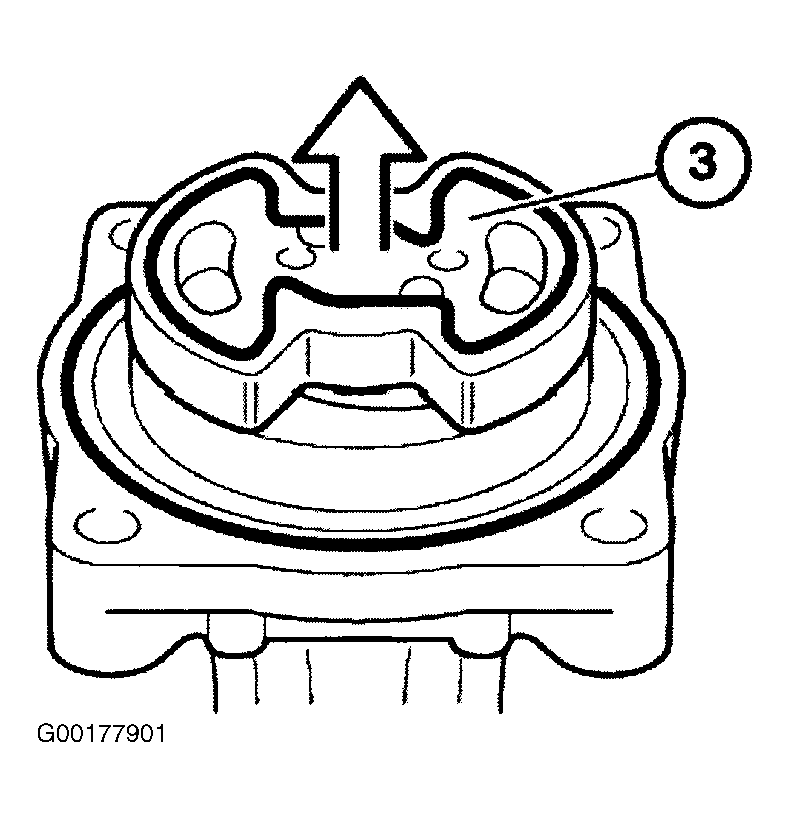

Fig 2: Removing Face Plate

Courtesy of BMW OF NORTH AMERICA, INC.

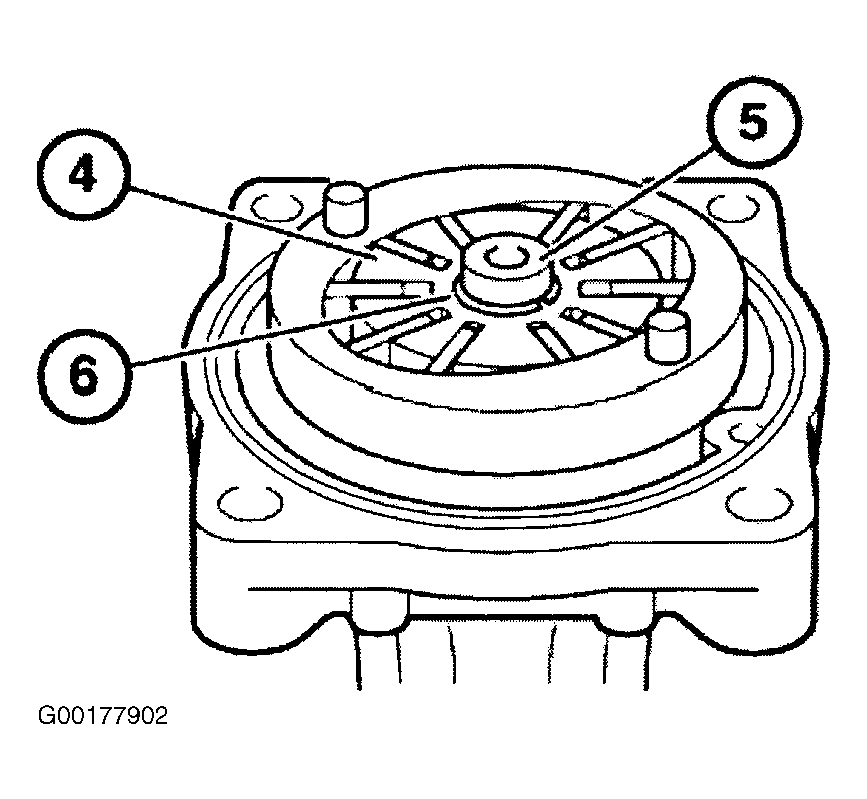

Fig 3: Removing Rotor

Courtesy of BMW OF NORTH AMERICA, INC.
