Vane Pump (LUK/VICKERS): Assembly

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat new O-rings with hydraulic fluid prior to installation.
  2. Fill new radial shaft between dust and sealing lip with grease. Drive radial shaft seal (16) firmly home in case section (open side facing inwards) with special tool (32 1 140/240). See Fig 1.
  3. Fit bracket (5) and case section (4) on shaft. Clamp pulley flange in vise. See Fig 2.
  4. Install new O-rings (13 & 17). See Fig 3.
  5. Install pressure plate (15) with groove facing upwards and cylindrical pins (10). See Fig 4.
  6. Fit rotor (14) to shaft and install new retaining ring (11). Install all blades (12) with rounded side facing outwards. Check that impeller moves easily. See Fig 5.
  7. Fit rotor ring (9) and pressure plate (8) to cylindrical pins (10). See Fig 6.
  8. Install new O-rings (18). See Fig 7.
  9. Fit valve piston (7) and spring (6) and join together the case sections. Note installation location of bore (B). See Fig 8.
  10. Fit washers (S). See Fig 9. Tighten screws to specification. See TORQUE SPECIFICATIONS .
  11. Install vane pump. On M52 and M54 engines see POWER STEERING VANE PUMP (M52/M54 ENGINE)  under REMOVAL & INSTALLATION. On other engines, procedure is not available from manufacturer.
Fig 1: Driving In Radial Shaft Seal
G00177891Courtesy of BMW OF NORTH AMERICA, INC.

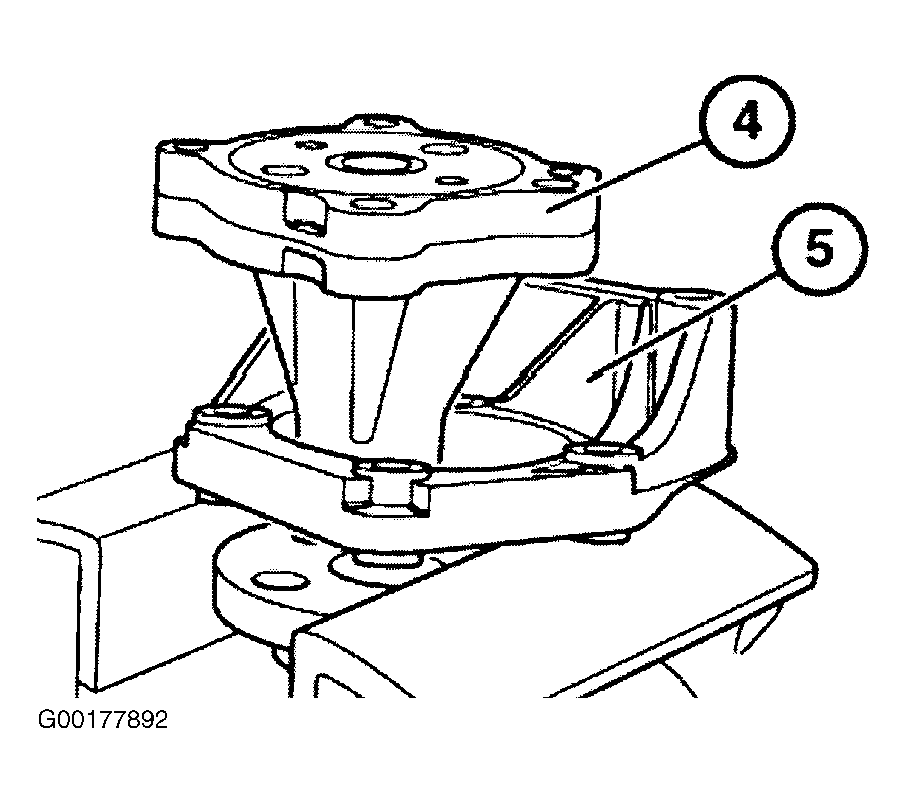

Fig 2: Clamping Pulley Flange In Vise
G00177892Courtesy of BMW OF NORTH AMERICA, INC.

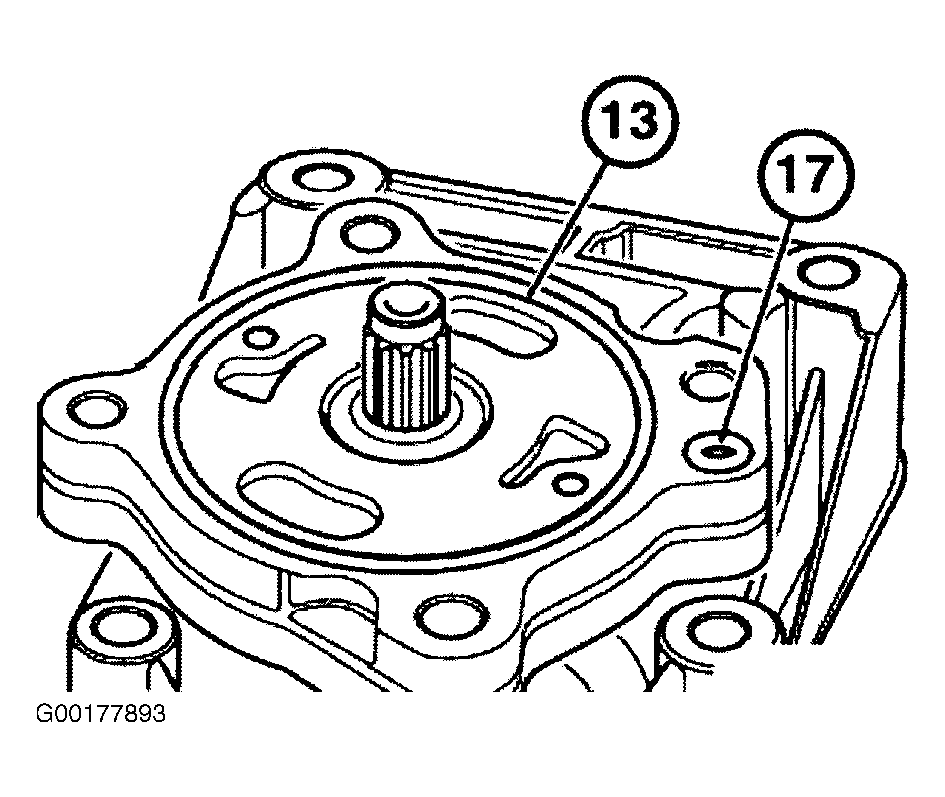

Fig 3: Installing O-Rings
G00177893Courtesy of BMW OF NORTH AMERICA, INC.

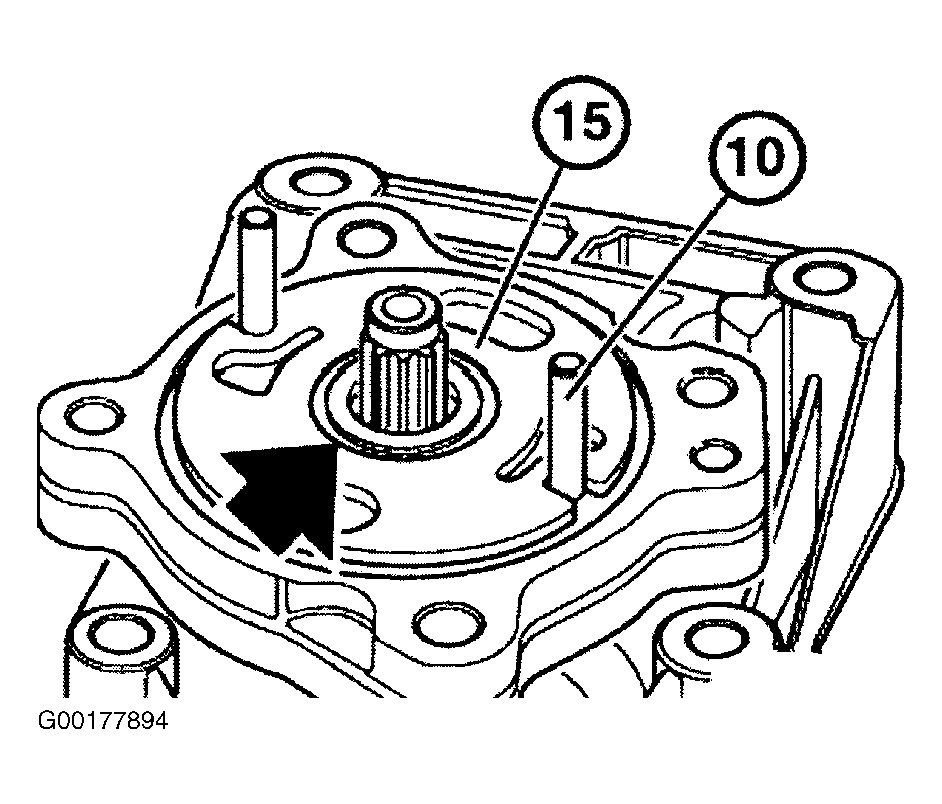

Fig 4: Installing Pressure Plate
G00177894Courtesy of BMW OF NORTH AMERICA, INC.

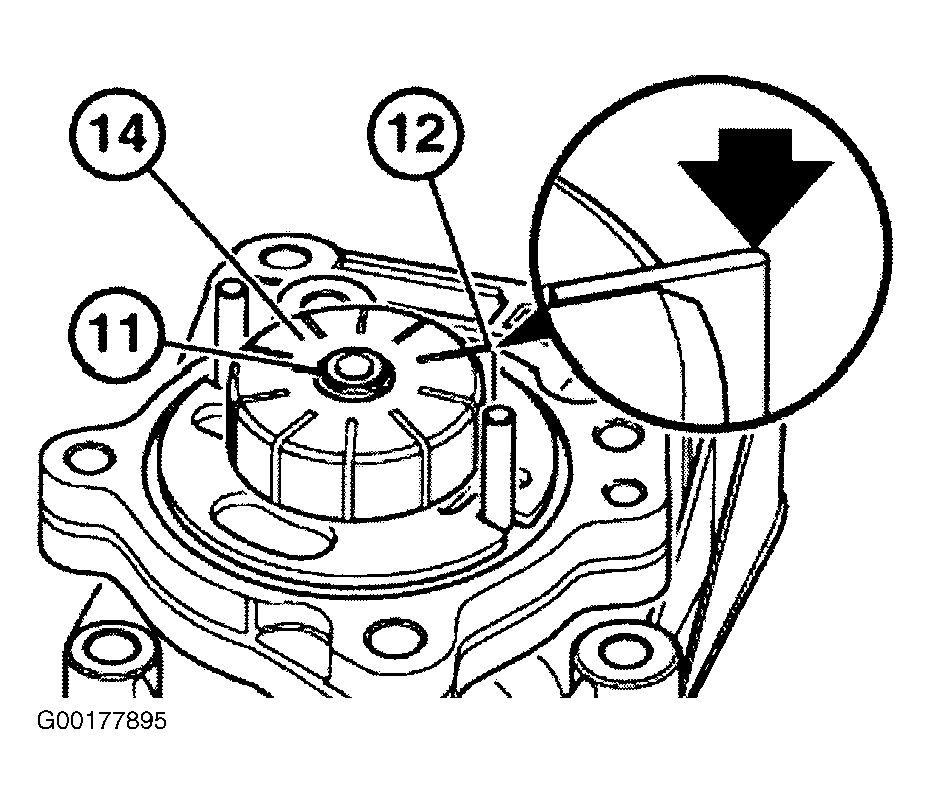

Fig 5: Fitting Rotor To Shaft
G00177895Courtesy of BMW OF NORTH AMERICA, INC.

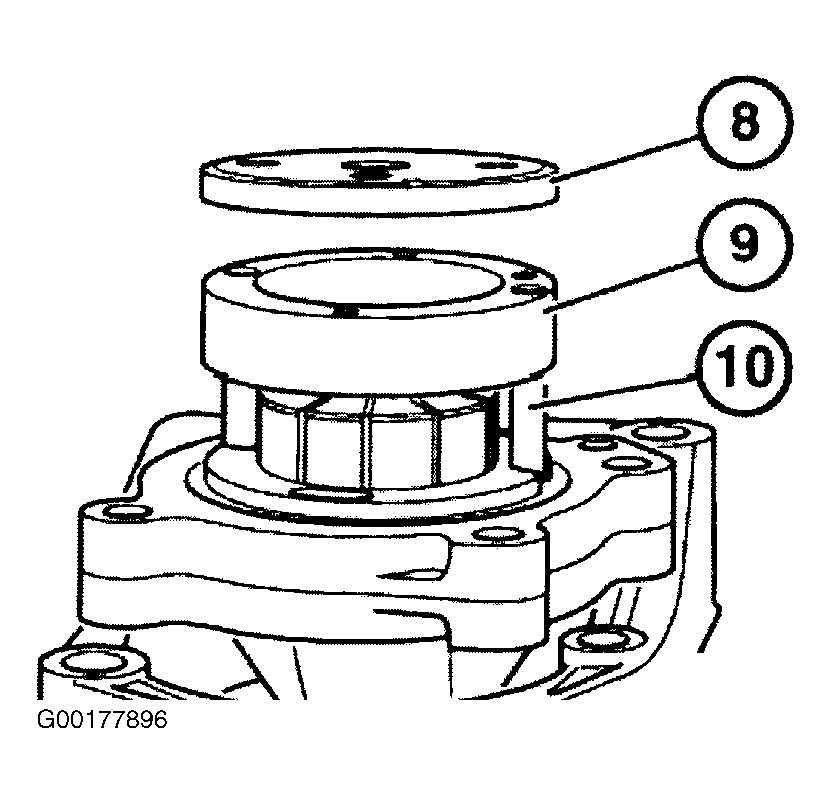

Fig 6: Fitting Rotor Ring
G00177896Courtesy of BMW OF NORTH AMERICA, INC.

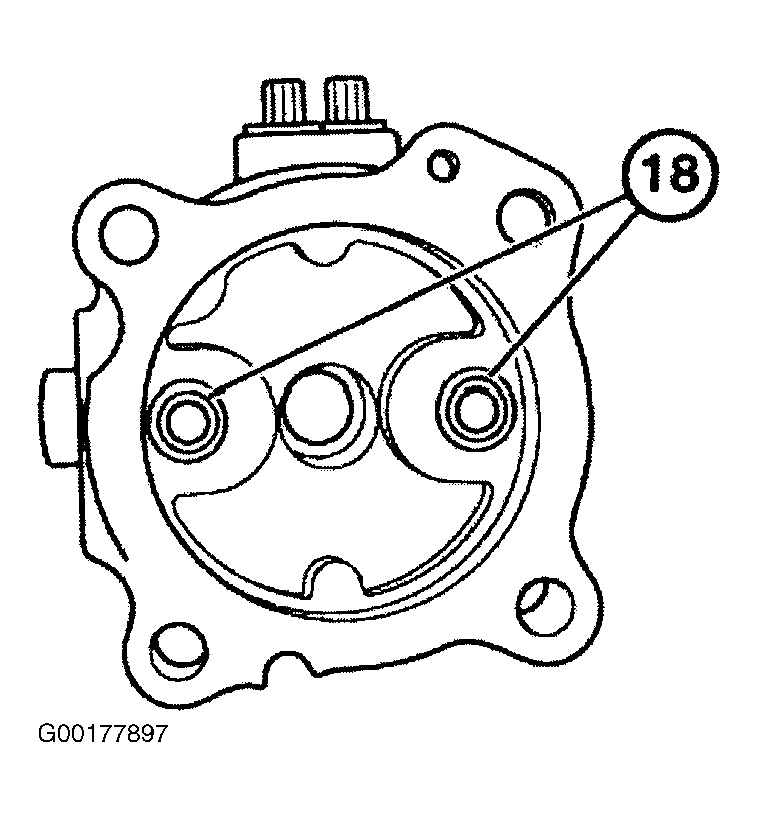

Fig 7: Installing New O-Rings
G00177897Courtesy of BMW OF NORTH AMERICA, INC.

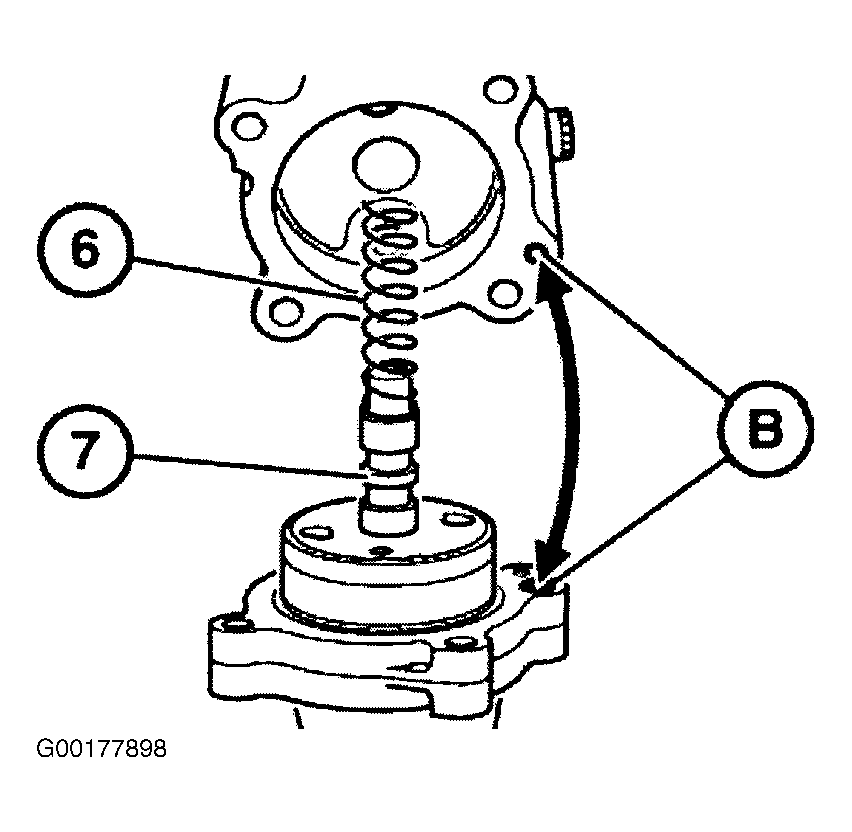

Fig 8: Fitting Valve Piston
G00177898Courtesy of BMW OF NORTH AMERICA, INC.

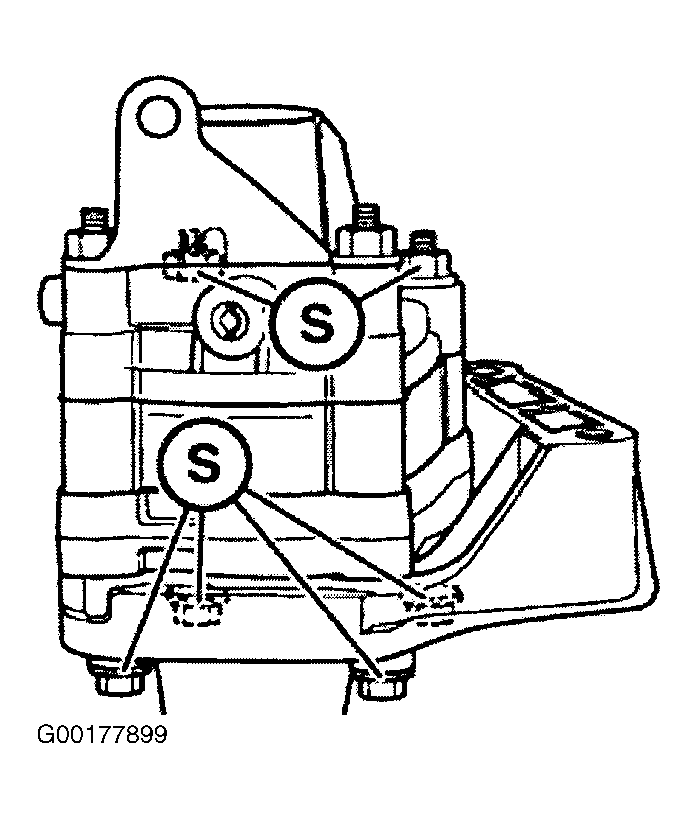

Fig 9: Fitting Washers
G00177899Courtesy of BMW OF NORTH AMERICA, INC.
