Removal & Installation
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2004 BMW M3, 2004 BMW 330xi, 2004 BMW 330i, 2004 BMW 330Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
- Read out control unit fault memory and, if necessary, print out diagnostic trouble code.
- Load and block brake pedal with pedal support.
- Mark location of all brake lines at DSC hydraulic unit. Disconnect brake lines from DSC hydraulic unit and plug all openings.

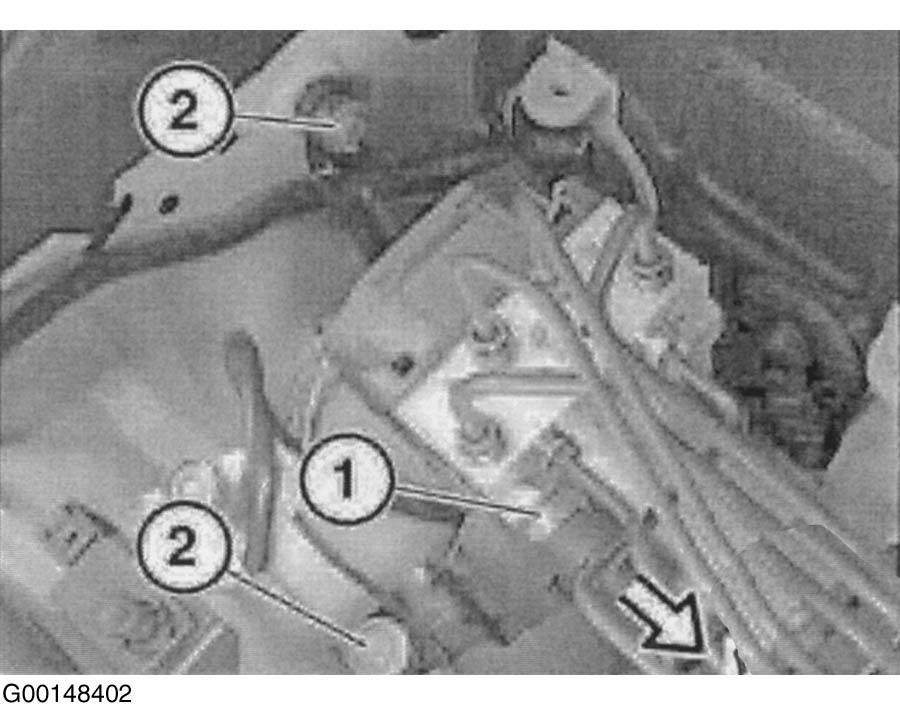

- Unlock and disconnect plug connection on pressure sensor (1). Remove screws (2) and remove hydraulic unit. See Fig 1.
- Remove screws and remove bracket from DSC hydraulic unit.
- To install, reverse removal procedure.
- When installing screws and brake lines tighten to specification. See TORQUE SPECIFICATIONS .
- Using Diagnosis Information System (DIS) tester, perform function check on DSC unit, coding for control unit, adjustment of steering angle sensor, and end-of-tape test for new control unit.
- After completing work, bleed brake system. See BASIC BLEEDING PROCEDURES .
CAUTION:
Brake fluid may emerge.
